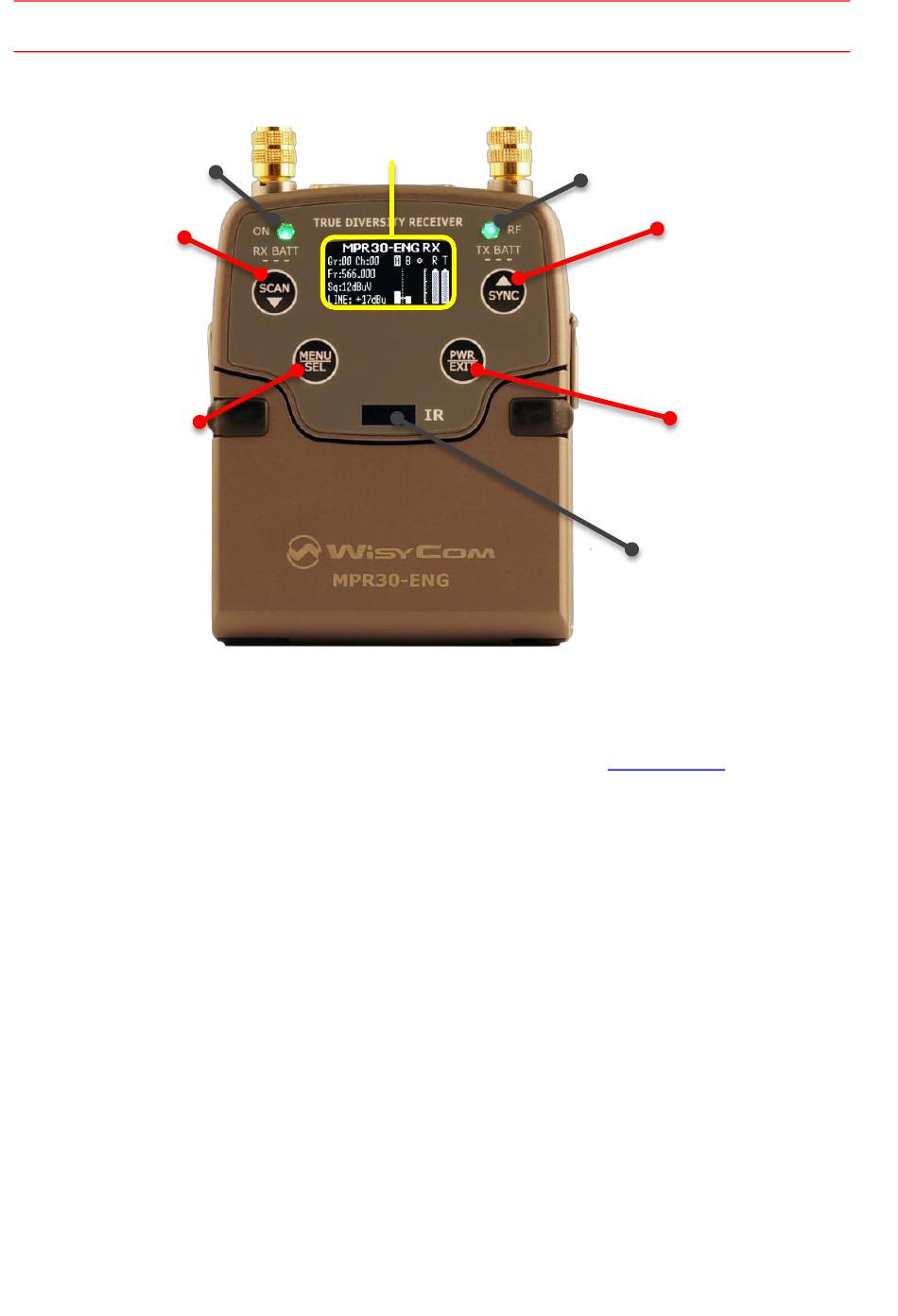

MPR30-eng allows an easy and quick configuration using buttons, RGB LED's and an OLED
display.
ON Led Indicator
SCAN/DOWN
Button
MENU/SELECT
Button
OLED Display
The receiver has a high contrast display. Pushing a POWER button while the receiver is active,
turn on automatically the display. After a time-out user setting (see
turns off automatically.
MENU/SELECT Button
Push this button to navigate function menu's and keep pushing to save the chosen setup.
POWER/EXIT Button
Push and keep this button to power on/off the receiver.
During menu navigation push this button to exit from current menu (escape function).
SYNC/UP Button
Push and keep this button to start a synchronisation with a Wisycom transmitter (follow
instructions on display). Before starting synchronization IRDA must be enabled on Wisycom
transmitter.
During menu navigation push this button to move -up and select the previous item.
SCAN/DOWN Button
Push and keep this button to start the automatic scan.
During menu navigation push this button to move-down and select the previous item.
