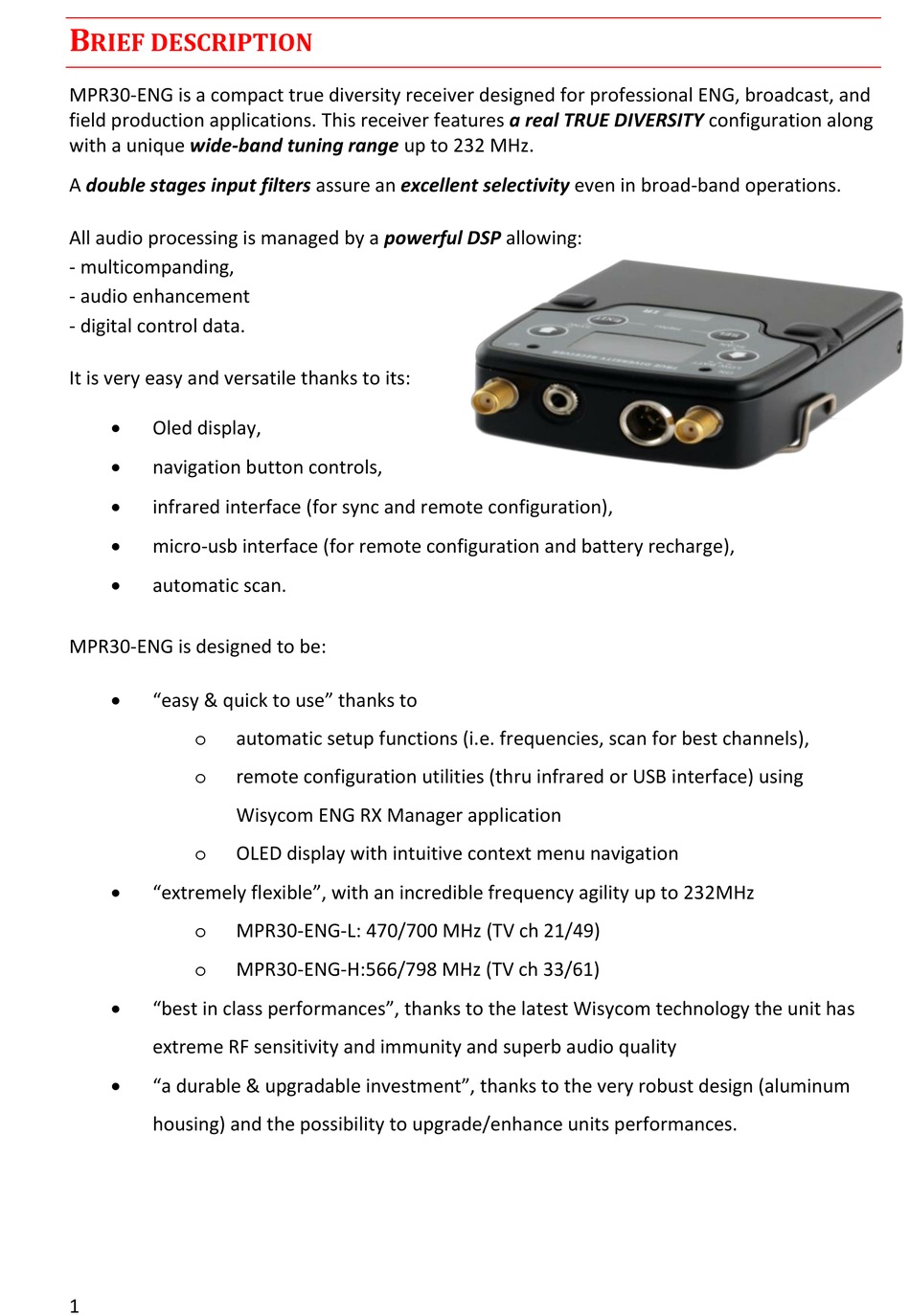

WisyCom MPR30-ENG User Manual page 2

B
RIEF DESCRIPTION
MPR30-ENG is a compact true diversity receiver designed for professional ENG, broadcast, and
field production applications. This receiver features a real TRUE DIVERSITY configuration along
with a unique wide-band tuning range up to 232 MHz.
A double stages input filters assure an excellent selectivity even in broad-band operations.
All audio processing is managed by a powerful DSP allowing:
- multicompanding,
- audio enhancement
- digital control data.
It is very easy and versatile thanks to its:

Oled display,

navigation button controls,

infrared interface (for sync and remote configuration),

micro-usb interface (for remote configuration and battery recharge),

automatic scan.
MPR30-ENG is designed to be:

"easy & quick to use" thanks to
o
automatic setup functions (i.e. frequencies, scan for best channels),
o
remote configuration utilities (thru infrared or USB interface) using
Wisycom ENG RX Manager application
o
OLED display with intuitive context menu navigation

"extremely flexible", with an incredible frequency agility up to 232MHz
o
MPR30-ENG-L: 470/700 MHz (TV ch 21/49)
o
MPR30-ENG-H:566/798 MHz (TV ch 33/61)

"best in class performances", thanks to the latest Wisycom technology the unit has
extreme RF sensitivity and immunity and superb audio quality

"a durable & upgradable investment", thanks to the very robust design (aluminum
housing) and the possibility to upgrade/enhance units performances.
1
