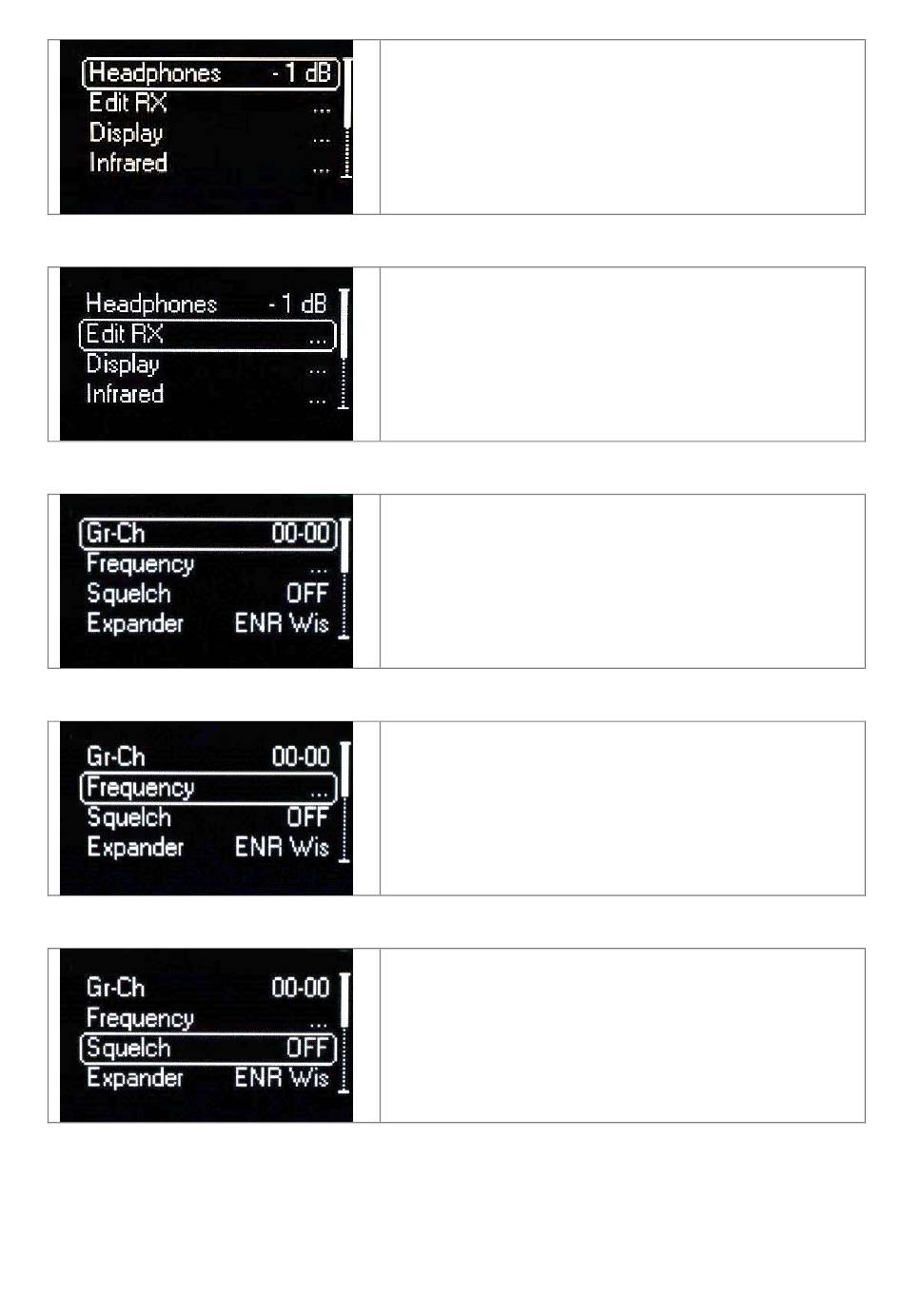

Headphones menu

Edit RX menu

Edit RX menu > Gr-Ch submenu

Edit RX menu > Frequency submenu

Edit RX menu > Squelch submenu

Cycle through menu's with up/down arrow to get

your desired headphones output level from Max (+6

dB) to min (-72 dB) in 1 dB step then confirm with

SEL.

Selecting this sub-menu most of RX1 setups are

configurable

Select current group and channel. Group name and

channel frequency are displayed on the right.

If the specific group/channel is not locked, then can

be edited in this menu.

This menu allows to disable the RF squelch or to

setup the desired squelch level in dBuV (note 0 dBuV

is equal to -107 dBm).
