WisyCom MPR30-ENG User Manual

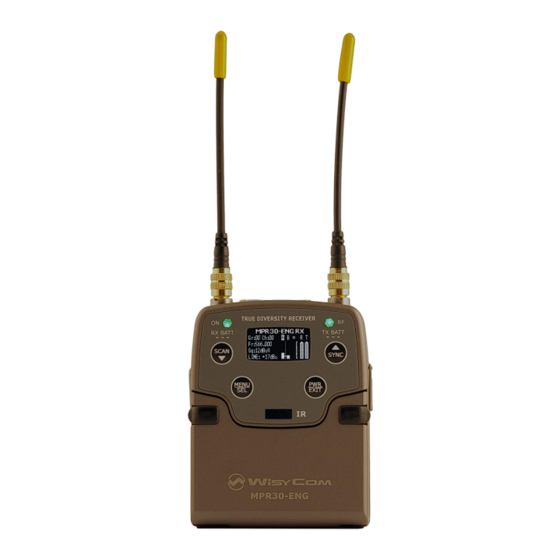

High performance true diversity camera receiver
Hide thumbs Also See for MPR30-ENG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual

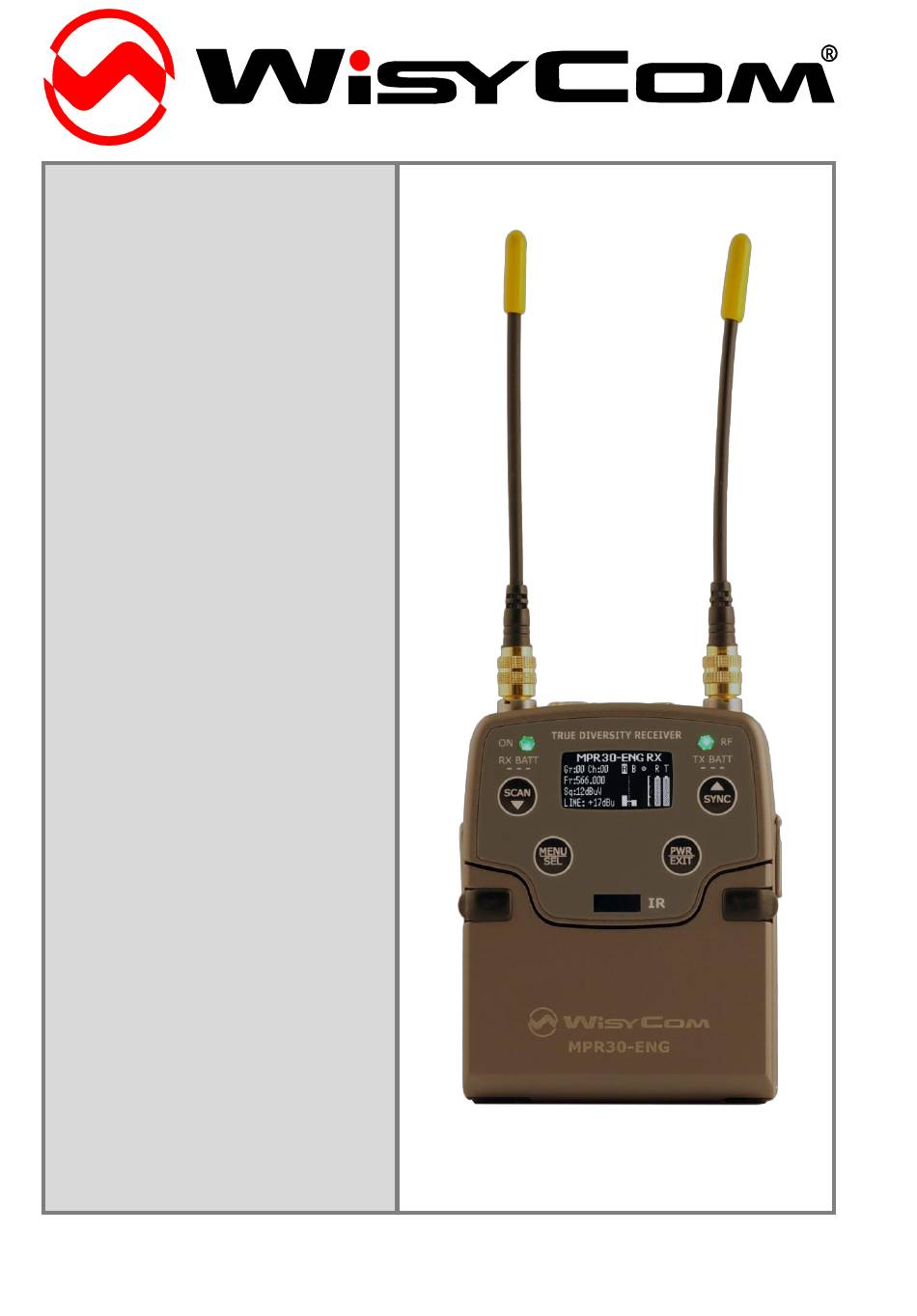

USER
MANUAL
MPR30-ENG
High performance
True diversity
Camera Receiver
S.N. __________
Date: 07 March 2013
Rev: 4.0 (FW v1.4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPR30-ENG and is the answer not in the manual?

Questions and answers

Related Manuals for WisyCom MPR30-ENG

Summary of Contents for WisyCom MPR30-ENG

  • Page 1 USER MANUAL MPR30-ENG High performance True diversity Camera Receiver S.N. __________ Date: 07 March 2013 Rev: 4.0 (FW v1.4)
  • Page 2 RIEF DESCRIPTION MPR30-ENG is a compact true diversity receiver designed for professional ENG, broadcast, and field production applications. This receiver features a real TRUE DIVERSITY configuration along with a unique wide-band tuning range up to 232 MHz. A double stages input filters assure an excellent selectivity even in broad-band operations.

  • Page 3: Safety Instruction

    Above a schematic with an overview of main receiver functions. AFETY INSTRUCTION  Read this safety instruction and the manual first  Follow all instructions and information.  Do not lose this manual.  Do not use this apparatus under the rain or near the water. ...
  • Page 4 Charging can be done with dedicated charger thru the integrated micro-usb-B connector thru 5 pin mini-XLR male connector (only for MPR30-ENG-5PW model) For B and C items, the charging status can be checked looking the status of LED indicator For MPR30-ENG and...
  • Page 5 RONT ANEL ONTROL AND UNCTIONS MPR30-eng allows an easy and quick configuration using buttons, RGB LED’s and an OLED display. OLED Display ON Led Indicator RF Led Indicator SYNC/UP SCAN/DOWN Button MENU/SELECT POWER/EXIT Button Button Infrared Interface (IR) OLED Display The receiver has a high contrast display.
  • Page 6 *DISPLAY indicate the state of OLED display before the OFF timeout ** to put the MPR30-ENG in boot mode: power on the device push and keep both UP and DOWN buttons for few seconds (until the led indicators light up, then release the buttons)

  • Page 7: Upper Panel

    SMA connector Antenna B SMA connector Antenna A SMA antenna Connector A and B MPR30-ENG is supplied with a couple of antenna tuned on 232 MHz bandwidth suitable to be used with both MPR30-ENG-L and MPR30-ENG-H version. Headphone Output The audio headphone output with 3.5 mm stereo jack socket lockable (TRS).
  • Page 8 The audio LINE output balanced on 3 pin mini-XLR male connector 5 pin mini-XLR male connector MODEL OPTION: MPR30-ENG-5PW thru V+ = 5V, it charges also the battery (if a rechargeable battery is inserted) MPR30-ENG-5BY thru V+ = 5V, it powering the receiver only without charging the battery NOTE: LINE and headphone output represent the same output, therefore if there isn’t LINE...

  • Page 9: Main Menu

     R = MPR30-ENG receiver and  T = Wisycom transmitter: when the rx is tuned with a Wisycom transmitter with PTT Mode parameter set to Disable/Normal/Muting Main menu Using UP/DOWN button all menus can be accessed in sequence.
  • Page 10 Headphones menu Cycle through menu’s with up/down arrow to get your desired headphones output level from Max (+6 dB) to min (-72 dB) in 1 dB step then confirm with SEL. Edit RX menu Selecting this sub-menu most of RX1 setups are configurable Edit RX menu >...
  • Page 11 Other setups can be loaded on request. Edit RX menu > Tone sq. submenu MPR30-ENG is able to detect a digital tone squelch generated by a Wisycom transmitters Tone squelch ON: when the tone squelch is enabled the audio is muted unless the correct carrier is detected.
  • Page 12 (*)As per Wisycom standard, group 00 and group 01 are special; respectively the “center frequency” (474,482/... MHz) and the intergap frequency (i.e. 470/478/486/... MHz). A scan on group 00 will reveal in few seconds the overall DVB-T occupation on the area, while a scan on group 01 will give possible working frequency, usable also in presence of strong DVB-T signal (sort to speak working in the band-guard of 2 digital television channels).
  • Page 13 With OFF setting the display never turns off. Infrared menu By this menu, MPR30-ENG can be connected to IRDA for setup or firmware upgrades. NOTE: while in this menu display is not automatically turned off.
  • Page 14 “NAME” enabled, when the sync function is completed it will show the same name of the synchronized receiver Info menu the INFO function shows many important features or information of MPR30-ENG receiver: NOTE: The FW (Firmware version) recaps...

  • Page 15: Optional Accessories And Parts

    Preset submenu Select the Restore submenu and chose the presets to load: user presets (1 or 2 or 3) or Factory preset. Push and keep SEL button to load the preset. Select the Save submenu and chose the user presets to save (1 or 2 or 3).

  • Page 16: Technical Specifications

    • IIP3 : > +6 dBm typical. • Spurious emissions : < 2 nW (typical = 0.1 pW). : DSP programmable  ENR (Wisycom Extended-NR) • Noise Reduction  ENC (Wisycom High fidelity) other emulations available for PH.472/PH.475/RMS based expander •...
  • Page 17 ECHANICAL RAWING Note: unit is mm...
  • Page 19 ITALY ONLY Obblighi di informazione agli utilizzatori Modello di informazioni agli utenti dei prodotti di tipo “professionale” INFORMAZIONE AGLI UTENTI ai sensi dell’art. 13 del Decreto Legislativo 25 luglio 2005, n. 151 “Attuazione delle Direttive 2002/95/CE, 2002/96/CE e 2003/108/CE, relative alla riduzione dell’uso di sostanze pericolose nelle apparecchiature elettriche ed elettroniche, nonché...
  • Page 20 • WISYCOM srl • Via Spin 156 • I-36060 Romano d’Ezzelino • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 – 382733 • www.wisycom.com • e-mail: sales@wisycom.com...
