1 Viewing the measurement results

As space on the screen is limited, the measurement results are spread across a total of two
(plusoptiX S12R), or three screens (plusoptiX S12C and S16) respectively. After the
measurement, you will first see the "camera image" results page. By touching the appropriate
button in the middle of the navigation bar, you can access each of the three results pages.
Results page
"camera image"
If an anonymous measurement has been taken, a consecutive number will be displayed in
the header. Touch the button with the printer (1) to assign patient data, and/or document the
measurement results (see supplementary short manual 5 and 6).
If the patient data was entered, retrieved or imported from the EMR software before the
measurement, the measurement values are saved automatically. If you see the status
message "Try again", the screening report must be saved manually.
After viewing the measurement results, you can return to the home page by touching the red
"X" (2) and continue with the operation. You can find more information about this in Chapter
5 "Performing the next measurement".
Attention:
Following an anonymous measurement, a screening report is not saved
automatically. As soon as you return to the home page without previously saving,
the screening report can no longer be saved and printed.
The measurement values and the label, on the other hand, are saved under the
consecutive number of the anonymous measurement. This is shown in the header.
If you take a note of this consecutive number, you can access the measurement
values in the database at a later point in time and print the label.
Results page
"measurement values"

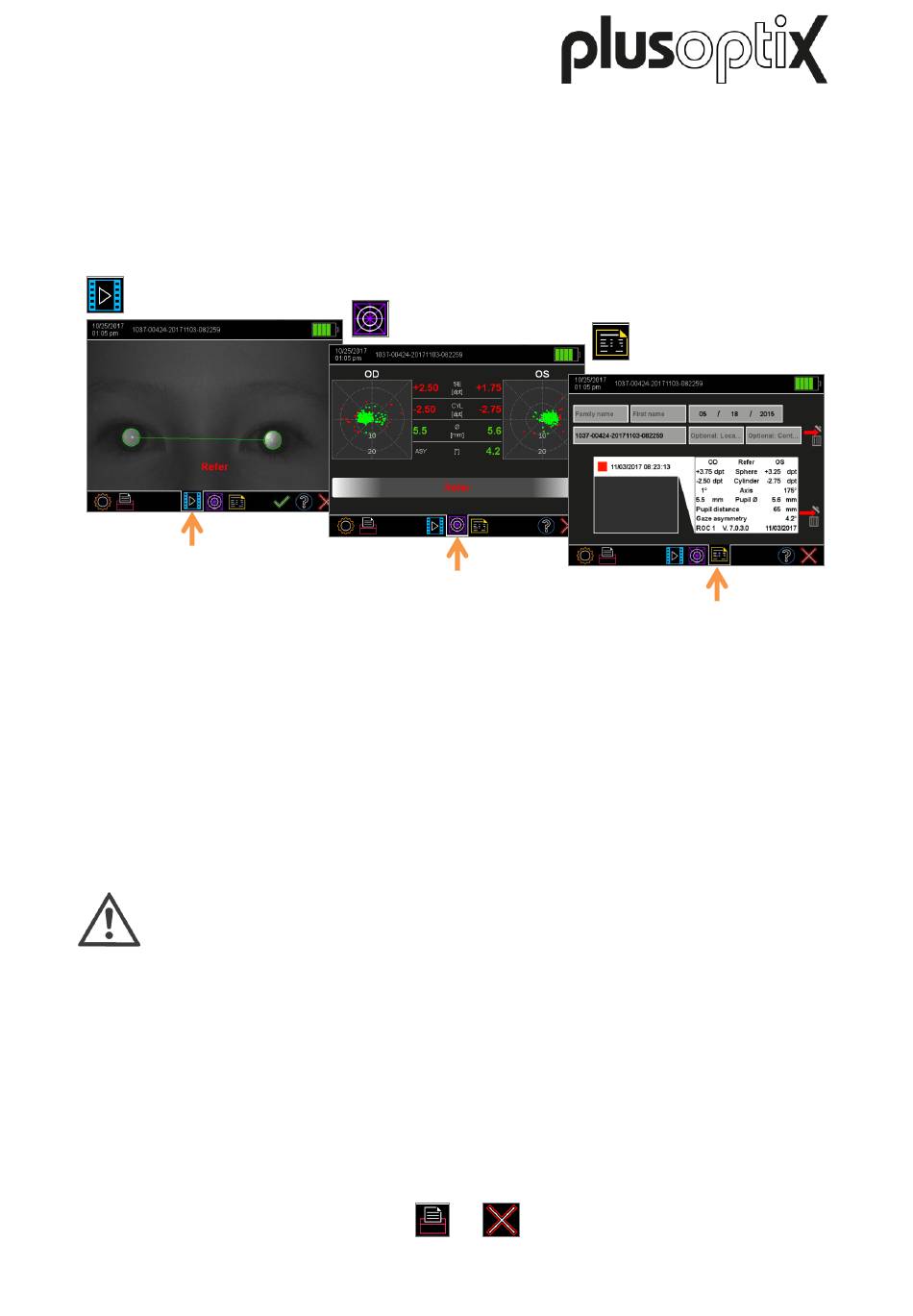

Figure 1: Overview of the results pages
1) 2)
Seite 3 von 7
Results page "database"
(only plusoptiX S12C and S16)
