PLUSOPTIX S12C Short Manual page 5

4 Downloading Software Update via LAN/WLAN (only plusoptiX
S12C and S16)
With active WLAN connection in the plusoptiX S12C model or active LAN or WLAN
connection in the plusoptiX 16 model, you will be guided through the update with the help of
the following status messages (see Figure 2).
Note:
Depending on the signal strength of the LAN/WLAN- and the Internet connection,
a software update can take about 30-40 min.
Note:
Depending on the device, you either need an empty SD card (plusoptiX 12) or an
empty USB stick (plusoptiX 16). The following status messages are the same for
the plusoptiX S12C and S16 model, and only differ in the storage medium.

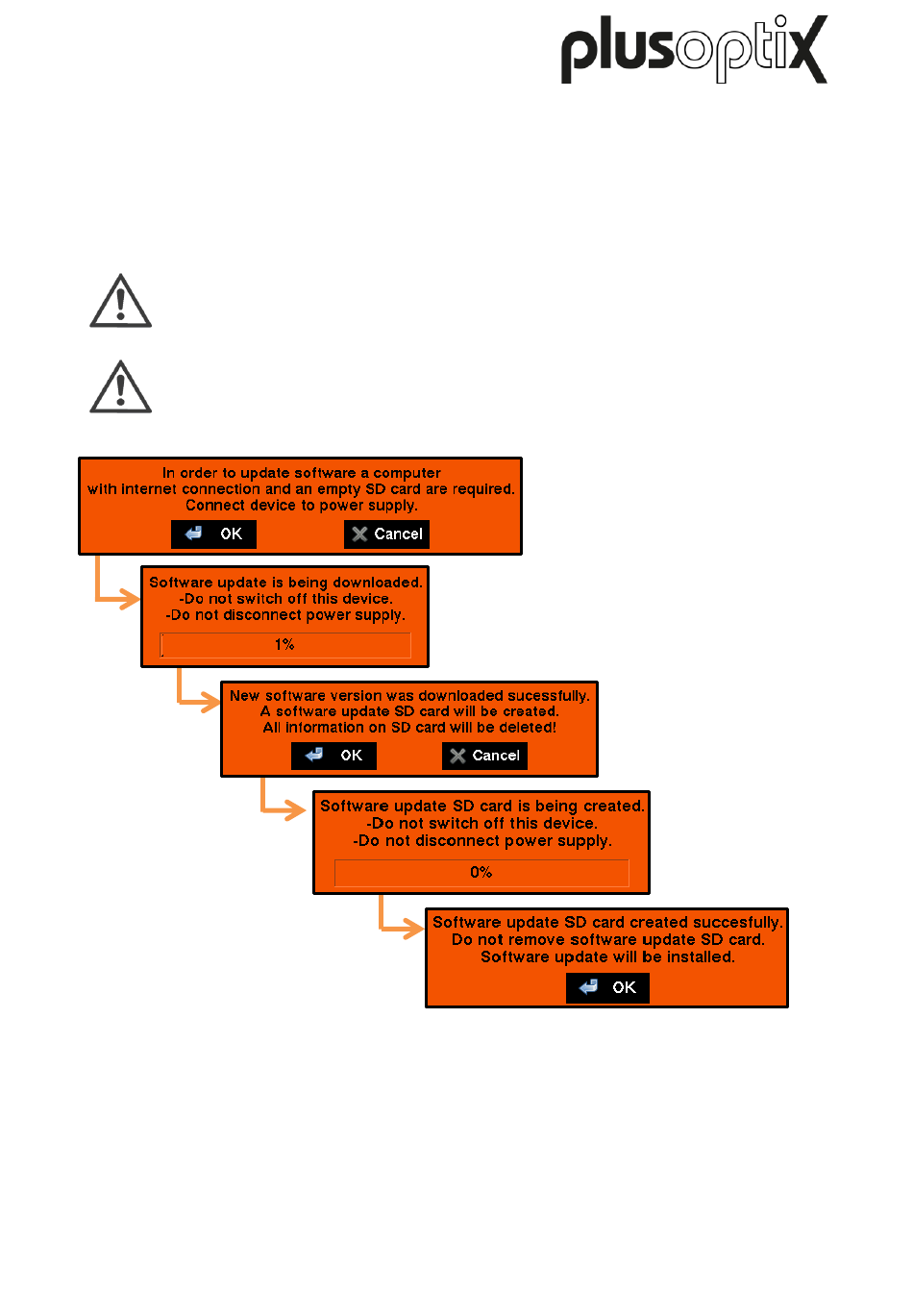

Figure 2: Downloading the software update via LAN/WLAN
Seite 5 von 6
