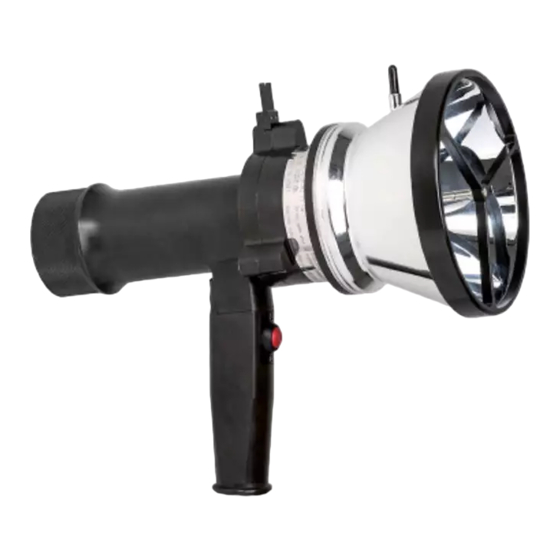

Spectrex SharpEye FS-1400 User Manual
  1. Manuals
  2. Brands
  3. Spectrex Manuals
  4. Security Sensors
  5. SharpEye FS-1400
  6. User manual

Spectrex SharpEye FS-1400 User Manual

Multi ir flame simulator
Hide thumbs Also See for SharpEye FS-1400:
Table of Contents

Advertisement

Quick Links

Download this manual

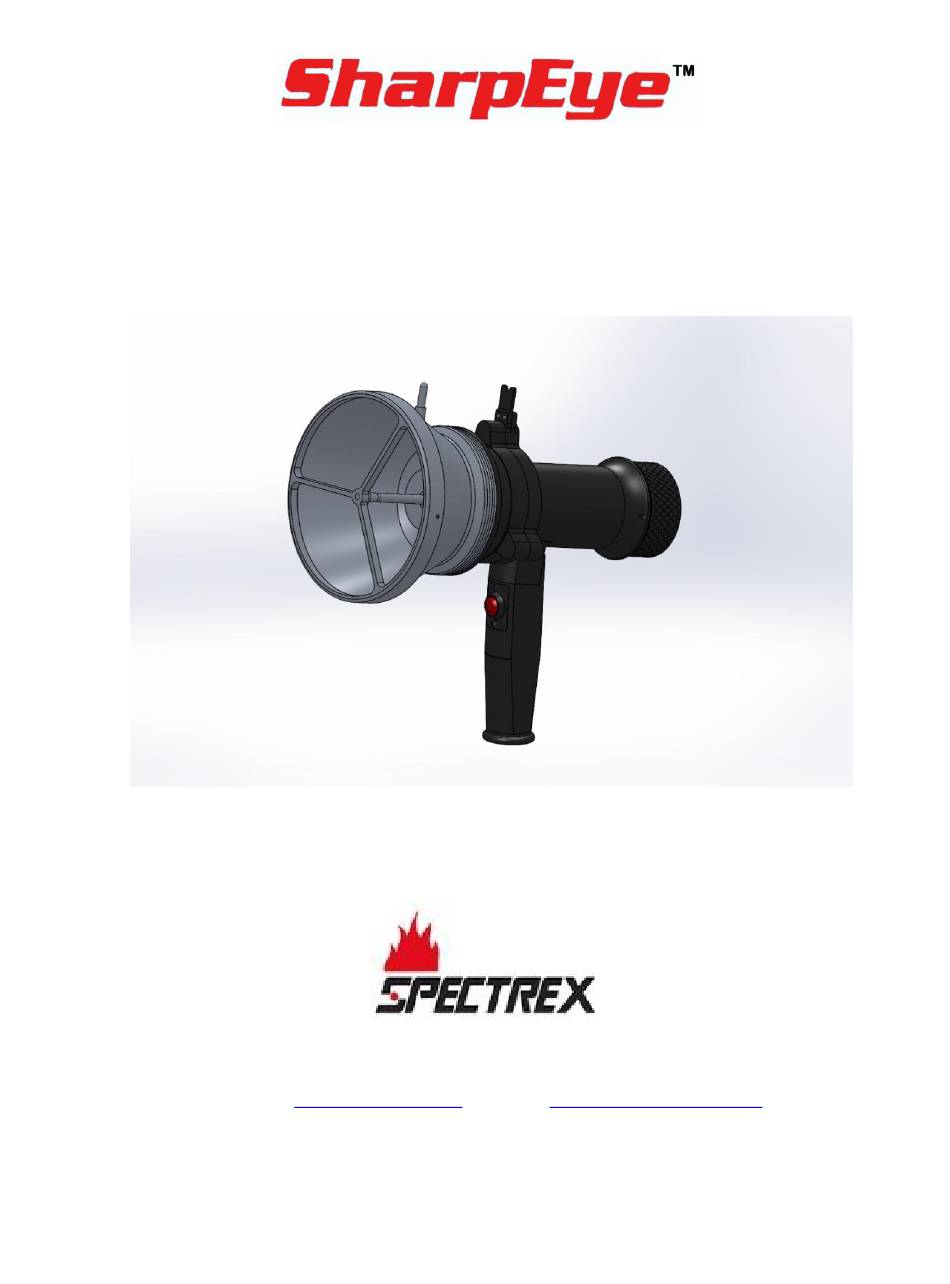

Multi IR Flame Simulator
Model FS-1400
User Manual
Document ref: TM380302, Rev. (6), April 2017
8200 Market Blvd, Chanhassen, MN 55317, USA
Phone: +1 (973) 239 8398
Fax: +1 (973) 239 7614
Website: www.spectrex.net; Email:
spectrex@spectrex.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SharpEye FS-1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Spectrex SharpEye FS-1400

Summary of Contents for Spectrex SharpEye FS-1400

  • Page 1 Multi IR Flame Simulator Model FS-1400 User Manual Document ref: TM380302, Rev. (6), April 2017 8200 Market Blvd, Chanhassen, MN 55317, USA Phone: +1 (973) 239 8398 Fax: +1 (973) 239 7614 Website: www.spectrex.net; Email: spectrex@spectrex.net...
  • Page 3 Legal Notice The SPECTREX SharpEye Flame Simulator described in this document is the property of Rosemount. No part of the hardware, software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, without prior written permission of Rosemount.
  • Page 4 SharpEye Multi IR Flame Simulator User Guide Release History Date Revision History Prepared by Approved by March 2016 First Release Ian Buchanan Eric Zinn May 2016 Second Release Ian Buchanan Eric Zinn July 2016 Third Release Ian Buchanan Eric Zinn January 2017 Fourth Release Jay Cooley...

  • Page 5: Table Of Contents

    Table of Contents Introduction ....................9 Model and Types ................... 10 Features and Benefits ................10 Principles of Operation ................10 Simulator Status ................... 11 Product Certification ................11 Simulator Structure ................12 Certification Instructions ................ 14 1.7.1 General Instructions ................ 14 1.7.2 Special Conditions for Safe Use ............
  • Page 6 SharpEye Multi IR Flame Simulator User Guide List of Figures Figure 1: Flame Simulator Side View ..............12 Figure 2: Flame Simulator Rear View ..............13 Figure 3: Flame Simulator Front View ..............13 Figure 4: Flame Simulator Battery Replacement ............ 21 List of Tables Table 1: Flame Simulator Compatability ...............
  • Page 7 TM380302, Rev (6) April 2017 About this Guide This guide describes the SharpEye Flame Simulator and its features and provides instructions on how to operate and maintain the simulator. This guide includes the following chapters:  Chapter 1, Introduction, provides a general overview of the product, principles of operation, and performance considerations.

  • Page 9: Introduction

    "end-to-end" test of the detector and the fire protection system, without the need to start an actual fire . The SPECTREX flame simulator is the only non-hazardous and safe method to test the flame detector’s sensors, internal electronics,...

  • Page 10: Model And Types

    SharpEye Multi IR Flame Simulator User Guide Model and Types The FS-1400 Flame Simulator is compatible with the following detector type: Simulator Compatible with: Multi IR Flame Simulator FS-1400 40/40M Features and Benefits  Used for maintenance and testing of flame detectors ...

  • Page 11: Simulator Status

    TM380302, Rev (6) April 2017 Simulator Status During the first 5 seconds of operation, the laser defines the simulator’s status. Normal Status When switching to normal status, the laser beams for 5 seconds before IR radiation is activated. These 5 seconds are used to aim the simulator to the center of the detector before activating IR radiation.

  • Page 12: Simulator Structure

    14.8VDC and 2.2Ah. The battery pack can be replaced easily by opening the back cover. This procedure must be executed in a safe area using only a SPECTREX battery pack, P/N 380004. Figure 1: Flame Simulator Side View...

  • Page 13: Figure 2: Flame Simulator Rear View

    TM380302, Rev (6) April 2017 Figure 2: Flame Simulator Rear View Figure 3: Flame Simulator Front View Simulator Structure...

  • Page 14: Certification Instructions

    SharpEye Multi IR Flame Simulator User Guide Electronic Chamber Push Button Battery Chamber Sight Battery Back Cover Back Cover Locking Screw Handle Laser Diode Reflector Certification Instructions 1.7.1 General Instructions  The equipment marking is defined as follows: Ex II 2 G D Ex db ib op is IIB + H T5 Gb Ex ib op is tb IIIC T135°C Db...

  • Page 15: Special Conditions For Safe Use

    TM380302, Rev (6) April 2017  Examples of aggressive substances: acidic liquids or gases that may attack metals or solvents, or may affect polymeric materials.  Examples suitable precautions: routine inspections, establishing resistance to specific chemicals from the material’s data sheets. 1.7.2 Special Conditions for Safe Use ...

  • Page 17: Operation Instructions

    Operation Instructions Ordering Information The P/N of the Flame Simulator Kit is 380114-4. The kit is supplied in a carry case that includes:  Flame Simulator FS-1400  Charger  Tool Kit  Technical Manual TM380302 Unpacking Verify that you have received the following components: ...

  • Page 18: Operating Instructions

    SharpEye Multi IR Flame Simulator User Guide Operating Instructions Warning: Do not open the flame simulator in a hazardous area to charge the batteries or for any other reason. Caution: The following test simulates real fire conditions and may activate the extinguishing system or other alarms.

  • Page 19: Detection Ranges

    TM380302, Rev (6) April 2017 Detection Ranges Detector Testing Sensitivity Model Detector Types Distance Setting (ft/m) (ft/m) FS-1400 40/40M 50/15 6.6/2 100/30 19.6/6 150/45 29.5/9 215/65 39.3/12 Table 2: Detection Ranges per Detector/Flame Simulator Notes:  The minimum distance from the detector is 30”/75cm. ...

  • Page 20: Charging The Battery

    Pull out the battery from the flame simulator. Insert the new battery pack in the simulator housing. Use only a SPECTREX battery pack, P/N 380004. Screw on the locking disc (Figure 4, Item 4). Screw on the back cover (Figure 1 and Figure 4, Item 3).

  • Page 21: Maintenance

    Ensure the flame simulator is charged before operation.  Ensure the reflector and window are clean.  Before replacing the battery, check that you have a SPECTREX Battery Pack, P/N 380004.  When the simulator is not in use, recharge at least every 6 months.

  • Page 22: Troubleshooting

    SharpEye Multi IR Flame Simulator User Guide Troubleshooting Model Problem Solution 1. Recharge the battery. FS-1400 Laser flashes 3 times 1. Operate the flame simulator Laser flashes 5 again. times 2. Send the flame simulator for repair. 1. Recharge the battery. Laser does not turn 2.

  • Page 23: Physical Specifications

    TM380302, Rev (6) April 2017 2.8.3 Physical Specifications Dimensions: 9” x 7.3” x 5.35” / 230 x 185 x 136 mm Weight: 5.5lb/2.5kg Enclosure: Aluminum, heavy duty copper free, black zinc coating. Explosion proof enclosure: ATEX and IECEx Ex II 2 G D Ex db ib op is IIB + H T5 Gb Ex ib op is tb IIIC T135°C Db...

  • Page 26: Technical Support

    Phone: +1 (973) 239 8398 Fax: +1 (973) 239 7614 Email: spectrex@spectrex.net Website: www.spectrex.net Your Local SPECTREX Office: Texas (USA) Mr. Jay Cooley, Regional Sales Manager 16203 Park Row, Suite 150 Houston, Texas 77084 Phone: +1 (832) 321 5229 Email: jay.cooley@emerson.com...
