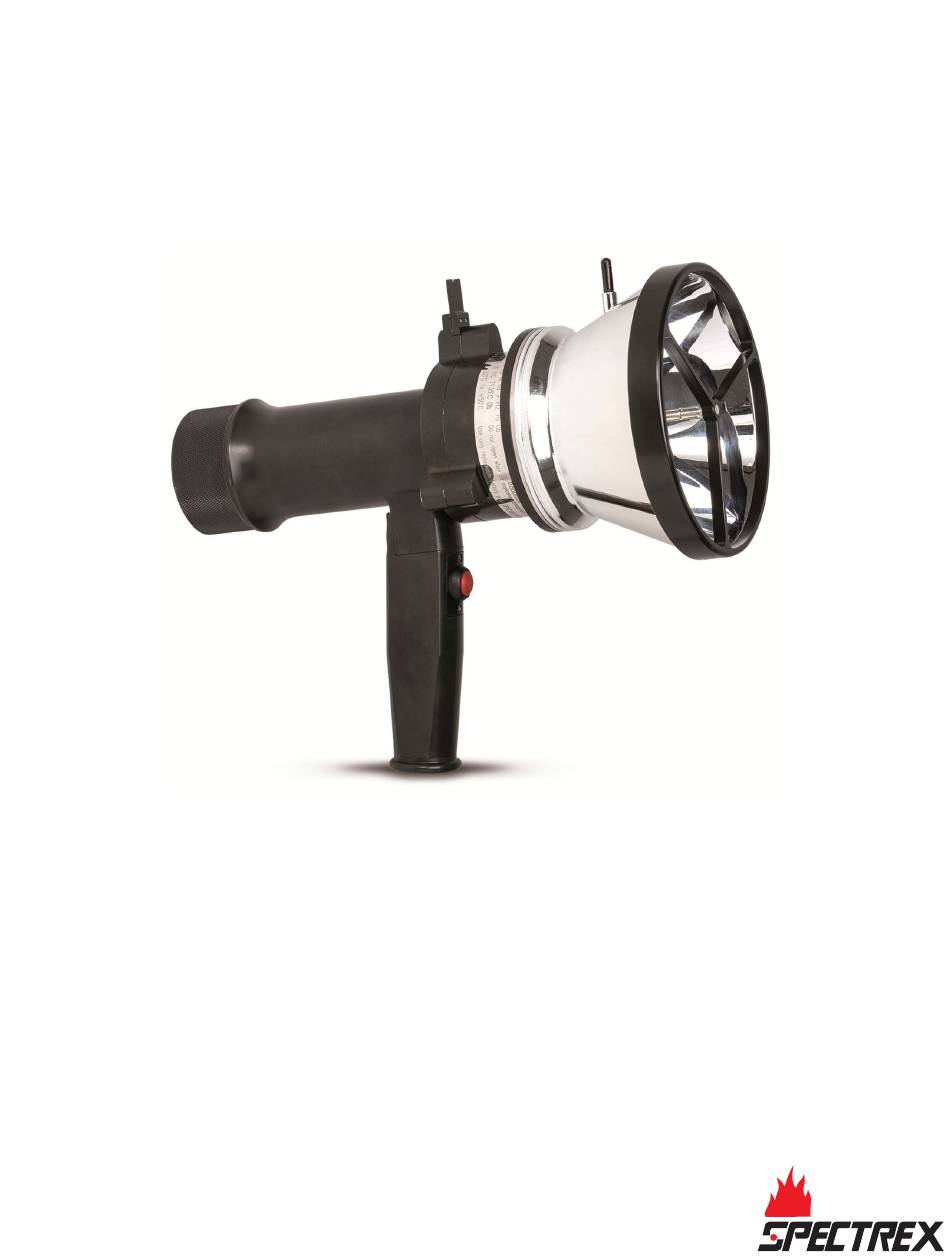

- Page 1 Reference Manual MS-00909-0100-1400, Rev AA March 2024 Spectrex SharpEye ™ FS-1400 Flame Simulator...
- Page 2 Safety information WARNING If the product is not used and maintained in accordance with the manufacturer’s instructions, the product may not perform as intended. All individuals who have or will have responsibility for using, maintaining, or servicing this product must read this manual thoroughly.
- Page 3 Warranty 1. Limited Warranty . Subject to the limitations contained in Section 2 (Limitation of Remedy and Liability) herein, Seller warrants that (a) the licensed firmware embodied in the Goods will execute the programming instructions provided by Seller; (b) that the Goods manufactured by Seller will be free from defects in materials or workmanship under normal use and care;...
-
Page 5: Table Of Contents
Reference Manual Contents MS-00909-0100-1400 March 2024 Contents Chapter 1 Introduction..........................7 1.1 Flame simulator compatibility with flame detector models..........7 1.2 Features and benefits......................... 7 1.3 Principles of operation........................7 1.4 Structure............................7 Chapter 2 Operation..........................11 2.1 Unpacking..........................11 2.2 Operate............................11 2.3 Simulator status.........................11 2.4 Charge the battery........................12 2.5 Replace the battery........................13 Chapter 3 ... - Page 6 Contents Reference Manual March 2024 MS-00909-0100-1400 SharpEye FS-1400...
-
Page 7: Chapter 1 Introduction
Spectrex Flame Simulators are ATEX certified EExd for use in Zone 1 and Zone 2 hazardous areas and are powered by rechargeable lithium ion batteries. When fully charged, the Flame Simulator will operate for at least 100 tests without recharging. - Page 8 The battery compartment includes a battery pack containing four lithium ion batteries of total 14.8 Vdc and 2.6 Ah. Figure 1-1: Flame Simulator side view A. Electronic compartment B. Battery compartment C. Battery compartment cover D. Hand grip E. Reflector F. Push button G. Sight SharpEye FS-1400...
- Page 9 Reference Manual Introduction MS-00909-0100-1400 March 2024 Figure 1-2: Flame Simulator rear view A. Hand grip B. Reflector C. Sight D. Back cover locking screw...
- Page 10 Introduction Reference Manual March 2024 MS-00909-0100-1400 Figure 1-3: Flame Simulator front view A. Hand grip B. Push button C. Sight D. Laser diode SharpEye FS-1400...
-
Page 11: Chapter 2 Operation
Do not open this device for any reason in a hazardous area. WARNING Explosion Do not open when an explosive atmosphere is present. Only use replaceable battery pack Spectrex 380004. NOTICE Disconnect external devices, such as fire alarms and automatic extinguishing systems, before performing maintenance. -
Page 12: Charge The Battery
The LED will flash twice to indicate that the battery is fully charged. 10. Screw in the locking disc using a 1.5 mm hex key. Figure 1-1. 11. Screw in the battery compartment cover. Figure 1-1. 12. Lock the back cover with the locking screw. Figure 1-2. SharpEye FS-1400... -
Page 13: Replace The Battery
D. Back cover Procedure 1. To remove the battery, follow Step 1 through Step 5 Charge the battery. 2. Insert the new battery pack into the simulator housing. Use only Spectrex battery pack, PN 380004 3. Follow Step 9 through Step 12 Charge the battery. - Page 14 Operation Reference Manual March 2024 MS-00909-0100-1400 SharpEye FS-1400...
-
Page 15: Chapter 3 Troubleshoot
Reference Manual Troubleshoot MS-00909-0100-1400 March 2024 3 Troubleshoot 3.1 LED flashes three times in three consecutive cycles Recommended action Recharge the battery. 3.2 LED flashes three times in five consecutive cycles Recommended actions 1. Disconnect and reconnect the battery. 2. Operate the flame simulator again. 3.3 ... -
Page 16: Flame Simulator Seems To Work Properly But Does Not Activate The Flame Detector
1. Verify that you are aiming the flame simulator beam at the center of the flame detector. 2. Verify that you are at the correct distance. 3. Verify that the flame detector is at the correct sensitivity. 4. Verify that the flame detector is operating. 5. Verify that the flame detector is clean. SharpEye FS-1400... -
Page 17: Chapter 4 Maintenance
Ensure the reflector and the window are clean. • Before replacing the battery, ensure that you have a Spectrex battery pack, PN 380004 . • When the simulator is not in use, remove the battery pack and recharge every six months. - Page 18 Maintenance Reference Manual March 2024 MS-00909-0100-1400 SharpEye FS-1400...
-
Page 19: Chapter 5 Ordering Information
Reference Manual Ordering information MS-00909-0100-1400 March 2024 5 Ordering information Model (all models are ATEX/IECEx approved) Code Product Description FS-1100 Triple IR (IR3) FS-1200 Ultraviolet and Ultraviolet Infrared (UV & UV/IR) FS-1400 Multi IR Product certifications Code Description USA & Canada Explosion Proof Technical Regulations Customs Union (EAC) Kazakhstan Flameproof Technical Regulations Customs Union (TRCU)/EAC Flameproof... - Page 20 Ordering information Reference Manual March 2024 MS-00909-0100-1400 SharpEye FS-1400...
-
Page 21: Chapter 6 Technical Specifications
Reference Manual Technical specifications MS-00909-0100-1400 March 2024 6 Technical specifications 6.1 Detection ranges per detector/flame simulator Table 6-1: Detection ranges per detector/flame simulator Model Detector types Detector sensitivity Testing distance settings FS-1400 40/40M (Legacy) 50 ft. (15 m) 6.6 ft. (2 m) 100 ft. (30 m) 19.6 ft. (6 m) 150 ft. -
Page 22: Physical Specifications
MIL-STD-1275B variations Table 6-3: Emission test Title Basic standard Level to be tested Class Radiated emission IEC 61000-6-3 40 dbuv/m (30 MHz - 230 MHz), Like Class B of EN 47 dbuv/m (230 MHz - 1 GHz) 55022 SharpEye FS-1400... -
Page 23: Product Certifications
7.3 CSA C/US The Spectrex FS-1400 Flame Simulator is approved to CSA C/US per report No. 80179876 : CL I, DIV 1, GPS B, C, D T4 CL I, DIV 2, GPS B, C, D T4 Ex dib ib op is IIB+H... -
Page 24: Tr Cu
Reference Manual March 2024 MS-00909-0100-1400 7.4 TR CU The Spectrex FS-1400 Flame Simulator is in compliance with the standard TR CU 012/2011 per: 1 Ex db ib HB + H T4 Gb X EX ib tb IIIC T135 °C Db X 7.5 ... - Page 25 Reference Manual Product certifications MS-00909-0100-1400 March 2024 If the equipment is likely to come into contact with aggressive substances (described below), then it is the operator's responsibility to take suitable precautions (described below) to prevent the equipment from being adversely affected, thus ensuring that the type of protection provided by the equipment is not compromised.
- Page 26 The equipment must only be charged in a safe area with the batteries removed from the flameproof enclosure. The charge conditions are as follows: Maximum charge voltage: 16.8 V Maximum charge current: 4 A The charge voltage must not exceed these values. SharpEye FS-1400...
-
Page 27: Chapter 8 Technical Support
Reference Manual Technical support MS-00909-0100-1400 March 2024 8 Technical support For all technical assistance or support contact: Emerson Automation Solutions 6021 Innovation Boulevard Shakopee, MN 55379-9795 T +1 866 347 3427 F +952 949 7001 safety.csc@Emerson.com... - Page 28 MS-00909-0100-1400 Rev. AA 2024 For more information: Spectrex.net © 2024 Emerson. All rights reserved. Spectrex is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
