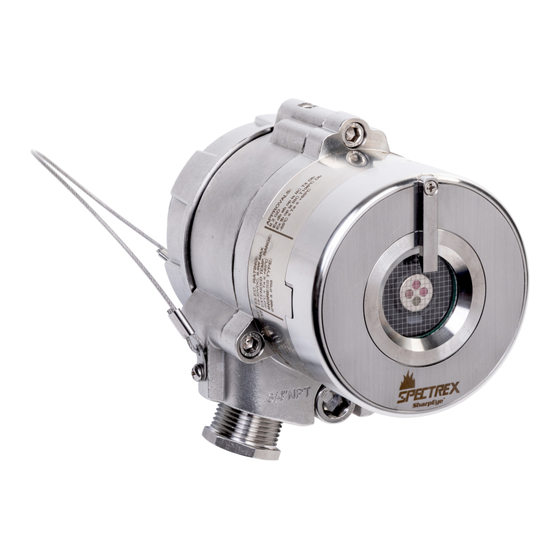

Spectrex SharpEye 40 Series Manual

Flame detectors
Hide thumbs Also See for SharpEye 40 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Reference Manual
00909-0200-4975, Rev AB
July 2022
™
™
Spectrex
SharpEye
40/40C and D Series
Flame Detectors
®
Modbus
Manager Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SharpEye 40 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Spectrex SharpEye 40 Series

Summary of Contents for Spectrex SharpEye 40 Series

  • Page 1 Reference Manual 00909-0200-4975, Rev AB July 2022 ™ ™ Spectrex SharpEye 40/40C and D Series Flame Detectors ® Modbus Manager Manual...
  • Page 2 Legal notice The device described in this document is the property of Emerson. No part of the hardware, software, or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission from Emerson.
  • Page 3 Abbreviation or acronym Definition American wire gauge Built-in test Electromagnetic compatibility End of line Field of view ® HART Highway addressable remote transducer - communication protocol Immune at any distance IECEx International Electrotechnical Commission Explosion Isopropyl alcohol Infrared Type of jet fuel Latching Refers to relays remaining in the ON state even after the ON condition has been removed.

  • Page 5: Table Of Contents

    Reference Manual Contents 00909-0200-4975 July 2022 Contents Chapter 1 Introduction......................7 1.1 Product overview.........................7 1.2 Minimum requirements....................... 7 Chapter 2 Initial setup........................9 2.1 Download software........................9 2.2 Running the software........................9 2.3 Connect computer to the device....................9 2.4 Connect device to harness cable....................10 2.5 Set up USB adapter........................
  • Page 6 Contents Reference Manual July 2022 00909-0200-4975 Spectrex.net...

  • Page 7: Chapter 1 Introduction

    This guide describes the Modbus Manager and provides instructions on how to install, operate, and maintain the software. Note ™ The Modbus Manager software is for use with Spectrex SharpEye 40/40C and 40/40D models only. Minimum requirements ®...
  • Page 8 Introduction Reference Manual July 2022 00909-0200-4975 Spectrex.net...

  • Page 9: Chapter 2 Initial Setup

    ® To download the Modbus Manager, follow these steps: Procedure 1. Go to Spectrex.net. 2. Using the site navigation, go to the relevant product page 3. Scroll down to Documents and Drawings. 4. Click SOFTWARE DOWNLOADS & DRIVERS. 5. Download the relevant file.

  • Page 10: Connect Device To Harness Cable

    2. Set up jumpers using one of the following options. • • 3. Close the USB adapter cover. 4. Connect the cable. Establish the COM port Prerequisites When first connecting the harness, you will be prompted to select a COM port. Procedure ® 1. Open Modbus Manager. Spectrex.net...
  • Page 11 Reference Manual Initial setup 00909-0200-4975 July 2022 2. Select Device Manager. 3. Select Ports. 4. Note to which COM the USB Serial Port is connected (this will vary among computers). 5. From the Comport dropdown, select the relevant COM port. 6.

  • Page 12: Connecting The Device

    Initial setup Reference Manual July 2022 00909-0200-4975 Connecting the device The device must be connected to power and the RS485 should be connected to the terminals according to the following table: Function Wire color Terminal RS485 (+) RS485 (-) Black Spectrex.net...

  • Page 13: Chapter 3 Operation

    Reference Manual Operation 00909-0200-4975 July 2022 Operation Screen overview Main screen The left menu and top bar display on every screen. The left menu displays the brand name and navigation controls; the top bar displays device information. A. Device brand B.
  • Page 14 C. Full detector model code D. Communication status E. Detector status F. Analog output signal G. Heater status H. Relay status (green indicates de-energized state for alarm and ACC, energized for fault; red indicates energized state for alarm and ACC, de-energized for fault). Spectrex.net...

  • Page 15: Perform Manual Bit

    Reference Manual Operation 00909-0200-4975 July 2022 Left menu The left menu contains navigation information and the main sections are viewed on each page. Subitems of the selected item are visible. A. Device information B. Device status C. Device setup D. Device and software version Perform manual BIT Procedure In the Test Detector pane, click the Built-In Test (BIT) button.

  • Page 16: Assign Address To Device

    Switch to Detector radio button. 2. Use the Address dropdown to select the required address. 3. Click the Switch button. Note The detector address set by the factory is ‘1’. When locating the detector address, only one detector should be connected. Spectrex.net...

  • Page 17: Locating The Detector Address

    Reference Manual Operation 00909-0200-4975 July 2022 Note Alternatively, the up and down arrows can be used to switch the address without clicking the Switch button. Locating the detector address If the detector address is not shown in the top menu or is not communicating, its address can be located by clicking the Locate button within the Locate Detector Address pane.

  • Page 18: Trend Screen

    B. Shows current internal temperature (in degrees C or F according to setup) C. Shows current 4-20 analog output (in mA) D. Activates manual BIT Trend screen This screen shows the input voltage, internal temperature, and analog output live trends according to the selected timeframe. Spectrex.net...

  • Page 19: Recording Screen

    Reference Manual Operation 00909-0200-4975 July 2022 A. Displays all recorded data according to timeframe settings B. Exports all data as ".txt" file C. Opens timeframe settings The timeframe settings can be adjusted by selecting the required values and clicking the Reset button.
  • Page 20 (Year, Month, Date, Hours, Minute, Second). SharpEye 40/40-LB and L4B file names are prefaced with UVIRlog_YMDHMS (Year, Month, Date, Hours, Minute, Second). The time stamp is according to GMT. 3.8.2 View internal log The log displays the 12 most recent records without scrolling. Spectrex.net...

  • Page 21: Detector Setup Tab

    Reference Manual Operation 00909-0200-4975 July 2022 Procedure To adjust number of records shown, change the number in the Get field and then press the Get button. A. Displays records according to selection in the records up to current position field B.
  • Page 22 The delay (in seconds) between detection of a signal and activation of the alarm. Choose from 0, 3, 5, 10, 20, 30, or A (anti- flare). Default: A Heater power Choose from high or low power (Spectrex 40/40D models only). Default: High power Spectrex.net...
  • Page 23 Reference Manual Operation 00909-0200-4975 July 2022 Heater on Temperature at which the demister is activated, if the heat mode temperature is set to Auto. Default: 5 °C Enable alarm latch When selected, the alarm remains on even when the signal abates. Default: Not enabled 3.9.2 BIT settings...
  • Page 24 According to model specifications, found in datasheet Explosion According to model specifications, found in datasheet IR only Single channel selection UV only Single channel selection UV/IR Double channel selection (1) Available with Spectrex 40/40D models only. (2) Available with Spectrex 40/40D models only. Spectrex.net...
  • Page 25 Reference Manual Operation 00909-0200-4975 July 2022 3.9.5 Lock option ® Modbus Manager offers password protection for various maintenance and administrative actions. Not locked No password required to change detector settings or perform BIT Locked Password required to change detector settings; opens dialog box for setting passwords Change To change the password, the previous password must be entered.
  • Page 26 Establish the COM port. Units Use this section to change the units (i.e. metric or imperial) in which all measurements are displayed. Note The application automatically restarts when the COM port is changed. (3) Available with Spectrex 40/40D models only. Spectrex.net...

  • Page 27: Chapter 4 Maintenance

    Reference Manual Maintenance 00909-0200-4975 July 2022 Maintenance Miscellaneous functions This screen provides access to various maintenance functions. A. Perform firmware update with provided file B. Upload parameters file C. Detector reset D. Fix 4-20 values E. Download parameters file Update firmware Prerequisites Firmware update file will be provided.

  • Page 28: Set Fixed Current 4-20 Values

    9. Click the Apply button. 10. Repeat steps Step 8 Step 9 until you enter value within 20mA ±0.5. Important It is essential to enter the final value and click Apply. If this process remains incomplete for five minutes, the detector will restart. Spectrex.net...

  • Page 29: Parameter Download

    Reference Manual Maintenance 00909-0200-4975 July 2022 11. Click the Burn button to save the changes. Parameter download There is an optional feature to download device parameter files incorporated into one ® folder located in the Modbus Manager directory. This folder is saved to the subfolder with the detector serial number included in the title.
  • Page 30 A. Enter time-limited password received from the manufacturer to enter tech-mode. B. Enter time-limited password received from the manufacturer to reset password. Note If the application is closed after entering the password, a new password is required to re- enter tech mode or reset password. Spectrex.net...

  • Page 31: Appendix A Reference Data

    To view current SharpEye 40/40 Series ordering information, specifications, and dimensional drawings, follow these steps: Procedure 1. Go to Spectrex.net/en-us/flame-gas-detectors-flame-detectors-40-40-series. 2. Select the appropriate product. 3. Scroll down to Documents and Drawings. 4. Select DATA SHEETS & BULLETINS.
  • Page 32 Sensor 4µ, or 2.4µ for Open Auto/manual BIT Hydrogen circuit blinking failure – no signal orange Sensor 4.4µ, or 3µ for Open Auto/manual BIT Hydrogen circuit blinking failure – no signal orange Wrong AFE offset Open Every 30msec blinking orange Spectrex.net...
  • Page 33 Reference Manual Reference data 00909-0200-4975 July 2022 Status Description 4-20mA Analog Fault Test rate output output relay indicator IR signal Amp stuck at Open Every BIT one failure blinking orange Failure SPI COM with Open Every 30msec blinking orange AFE stuck at 1 Open Every 30msec blinking...
  • Page 34 Analog output failure Close Every 30msec blinking orange FOV warning Close Every 30msec blinking green Automatic BIT Close Every BIT blinking green Manual BIT Close Every BIT blinking green End of BIT Close Every BIT blinking green Spectrex.net...
  • Page 35 Reference Manual Reference data 00909-0200-4975 July 2022 Status Description 4-20mA Analog Fault Test rate output output relay indicator Pre-alarm Close Every 30msec blinking green Alarm delay 16mA Close Every 30msec blinking red Warning 16mA Close Every 30msec blinking red Alarm 20mA Close Constant...
  • Page 36 IR sensor failure – no Open Auto/manual BIT signal blinking orange IR circuit shortcut Open Every 30msec failure blinking orange IR signal Amp stuck at Open Auto/manual BIT one failure blinking orange Constant IR signal Open Every 30msec blinking orange Spectrex.net...
  • Page 37 Reference Manual Reference data 00909-0200-4975 July 2022 Status Description 4-20mA Analog Fault Test rate output output relay indicator UV pulse stuck at 1 Open Every 30msec blinking orange Digi pot failure Open Every 30msec blinking orange UV tube broken/ Open Every 30msec constant UV pulse blinking...
  • Page 38 Temperature gradient 4mA Close Every 30msec blinking green Alarm delay 16mA Close Every 30msec blinking red Warning 16mA Close Every 30msec blinking red Alarm 20mA Close Constant Every 30msec Latch 20mA Close Constant Every 30msec Benzene Close Every 30msec blinking green Spectrex.net...
  • Page 39 Reference Manual Reference data 00909-0200-4975 July 2022 Status Description 4-20mA Analog Fault Test rate output output relay indicator Anti-flare Close Every 30msec blinking green Explosion 20mA Close Constant Every 0.23msec SharpEye 40/40...
  • Page 40 Reference data Reference Manual July 2022 00909-0200-4975 Spectrex.net...

  • Page 41: Appendix B Configurable Options

    Reference Manual Configurable options 00909-0200-4975 July 2022 Configurable options SharpEye 40/40C options This section contains values for configurable options. Asterisks (*) indicate default values unless otherwise noted. Option SharpEye model 40/40C-I 40/40C-M 40/40C-LB 40/40C-L4B Detection sensitivity • • • • •...
  • Page 42 Accessory relay options • Disabled* • Accessory relay on warning • Accessory relay as EOL Lock option • Not locked* • Locked 4-20mA settings Fault • • BIT fault Normal • • Warning • • Custom Alarm • • Custom Spectrex.net...

  • Page 43: Sharpeye 40/40D Options

    Reference Manual Configurable options 00909-0200-4975 July 2022 SharpEye 40/40D options This section contains values for configurable options. Asterisks (*) indicate default values unless otherwise noted. Option SharpEye model 40/40D-I 40/40D-M 40/40D-LB 40/40D-L4B Detection sensitivity • • • • • 30m* •...
  • Page 44 Accessory relay on warning • Accessory relay as EOL • Accessory relay as FOV • FOV integrity Lock option • Not locked* • Locked 4-20mA settings Fault • • BIT fault Normal • • Warning • • Custom Alarm • • Custom Spectrex.net...
  • Page 45 Reference Manual Configurable options 00909-0200-4975 July 2022 Option SharpEye model 40/40D-I 40/40D-M 40/40D-LB 40/40D-L4B • • • SharpEye 40/40...
  • Page 46 00909-0200-4975 Rev. AB 2022 For more information: Emerson.com © 2022 Emerson. All rights reserved. Spectrex is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
