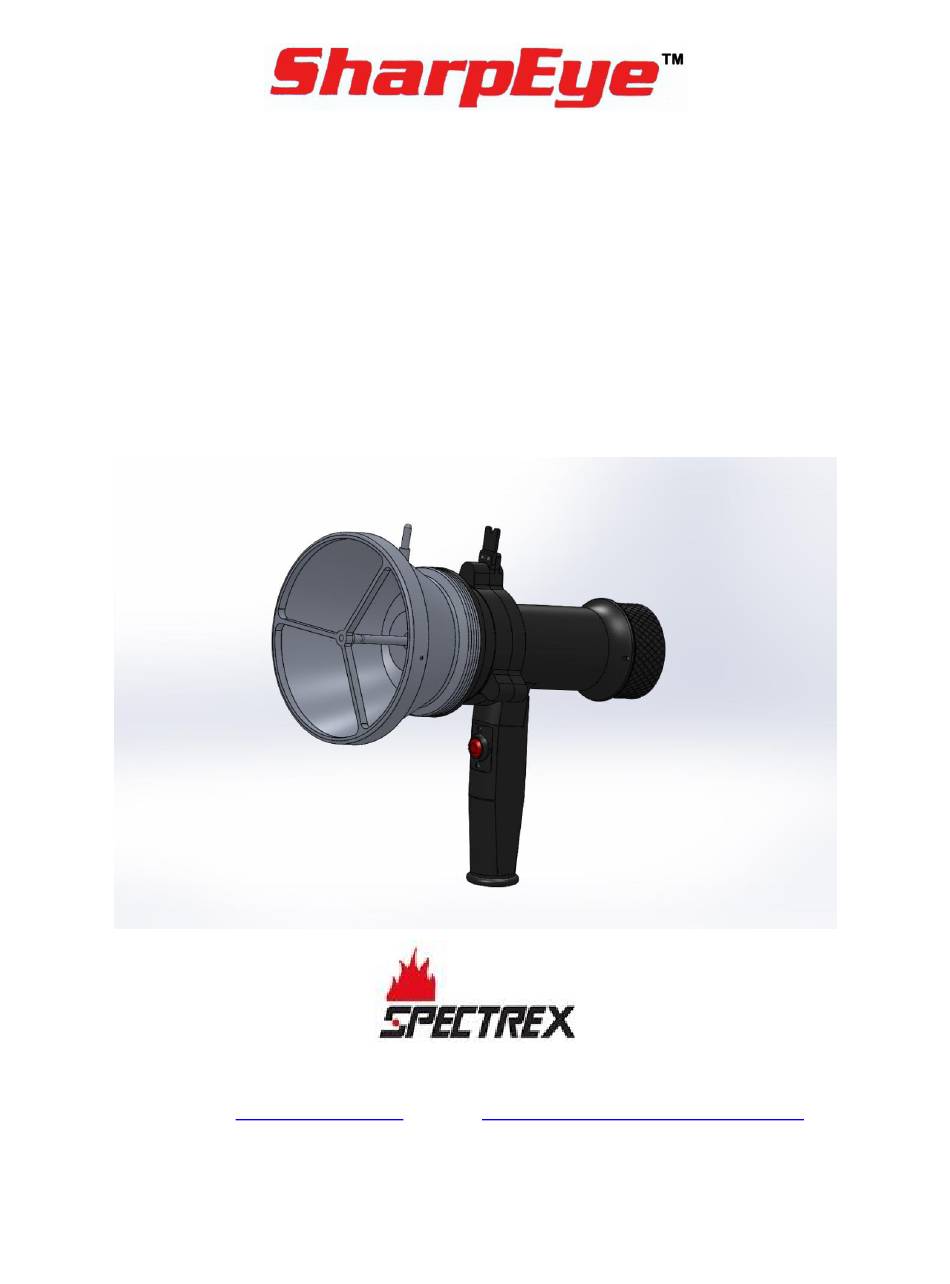

- Page 1 Model FS-1400 Multi IR Flame Simulator User Guide 6021 Innovation Blvd, Shakopee, MN 55379, USA Phone: +1 (973) 239 8398 Website: www.spectrex.net Email: spectrex.csc.rmtna@emerson.com...
- Page 3 SPECTREX expressly excludes damage incurred in transit from the factory or other damage due to abuse, misuse, improper installation, or lack of maintenance or “Act of God” which are above and beyond its control. SPECTREX will, upon receipt of any defective product, transportation prepaid, repair or replace it at its sole discretion if found to have been defective when shipped.
-
Page 5: Table Of Contents
Table of Contents Table of Contents .................... v List of Figures ....................vii List of Tables ....................vii About this Guide ..................9 Release History ..................9 Glossary and Abbreviations ..............10 Product Overview ..................13 Flame Simulator Compatibility with Flame Detector Models ......13 Features and Benefits ................ - Page 6 3.9.4 RoHS Directive ................27 3.9.5 EMI Compatibility ................27 Technical Support ..................32 SharpEye™ Multi IR Flame Simulator User Guide...
- Page 7 List of Figures Figure 1: Flame Simulator Side View ..............16 Figure 2: Flame Simulator Rear View ..............17 Figure 3: Flame Simulator Front View ..............17 Figure 4: Flame Simulator Battery Replacement ............ 25 List of Tables Table 1: Detection Ranges per Detector/Flame Simulator ........23 TM380302 Rev.
-
Page 9: About This Guide
About this Guide About this Guide This guide describes the SharpEye Flame Simulator and its features and provides instructions on how to operate and maintain the simulator. Release History Revision Prepared by Approved by Date History March 2016 First Release Ian Buchanan Eric Zinn May 2016... -
Page 10: Glossary And Abbreviations
About this Guide Glossary and Abbreviations Abbreviation/Term Meaning Analog Video Video values are represented by a scaled signal ATEX Atmosphere Explosives American Wire Gauge Built-In-Test Complementary Metal-Oxide Semiconductor image CMOS sensor Each component is represented by a number Digital Video representing a discrete quantization Digital Signal Processing Electromagnetic Compatibility... - Page 11 About this Guide Abbreviation/Term Meaning Unified Coarse Thread Volts Alternating Current TM380302 Rev. (Ac), September 2020...
-
Page 13: Product Overview
SharpEye Flame Detector models. This allows for testing under real fire conditions without the associated risks of an open flame. SPECTREX flame simulators are ATEX certified EExd for use in hazardous zones 1, 2, 21, and 22, and are powered by rechargeable lithium-ion batteries. -
Page 14: Features And Benefits
Product Overview Features and Benefits • Used for maintenance and testing of flame detectors • Ability to activate the flame detector from a distance of up to 12m • Rechargeable battery included • Operates at least 1,000 tests before battery recharge is necessary Principles of Operation The FS-1400 emits IR energy, which is filtered to emit electromagnetic radiation in a unique sequential pattern, corresponding to and recognizable as a fire by the... -
Page 15: Product Certification
Product Overview Product Certification The Flame Simulator has the following certifications: • ATEX, IECEx, page 15 • cCSAus, page 15 • TR CU/EAC, page 15 2.4.1 ATEX, IECEx Ex II 2 G D Ex db ib op is IIB + H T4 Gb Ex ib op is tb IIIC T135°C Db –4°F to +122°F / –20°C to +50°C... -
Page 16: Simulator Structure
Product Overview Simulator Structure The flame simulator has a black-coated aluminum ex-proof enclosure. It includes the following components: • Reflector • Electronic compartment • Battery compartment • Handgrip The electronic compartment includes the internal optical and electronic parts of the device. The battery compartment includes a battery pack containing 4 lithium-ion batteries, measuring a total of 14.8VDC and 2.6Ah. -
Page 17: Figure 2: Flame Simulator Rear View
Product Overview Figure 2: Flame Simulator Rear View Figure 3: Flame Simulator Front View TM380302 Rev. (Ac), September 2020... -
Page 18: Certification Instructions
Product Overview Electronic Compartment Push Button Battery Compartment Sight Battery Back Cover Back Cover Locking Screw Handgrip Laser Diode Reflector Certification Instructions 2.6.1 General Instructions • The equipment marking is defined as follows: Ex II 2 G D Ex db ib op is IIB + H T4 Gb Ex ib op is tb IIIC T135°C Db –20°C to +50°C / –4°F to +122°F... -
Page 19: Specific Conditions Of Use
Product Overview 2.6.2 Specific Conditions of Use The dimensions of the flameproof joints are other than the relevant minimum or maximum values required by Table 3 of IEC/EN 60079-1:2014 for IIB + H2, as detailed below: Minimum Width Maximum Gap Flamepath Description Type of Joint “L”... -
Page 21: Operation Instructions
Product Overview Operation Instructions Ordering Information The P/N of the Flame Simulator Kit is 380114-4. The kit is supplied in a carry case that includes: • Flame Simulator FS-1400 • Battery pack 380004 • Charger • Tool Kit • Technical Manual TM380302 Unpacking Verify that you have received the following components: •... -
Page 22: Operating Instructions
Product Overview Operating Instructions Verify you are using the correct simulator that fits the tested detector, per section 2.1: Flame Simulator Compatibility with Flame Detector Models on page 13 Verify you are at the correct distance from the detector according to the type of detector and the detector sensitivity (see Section 3.4). -
Page 23: Detection Ranges
Product Overview Detection Ranges Table 1: Detection Ranges per Detector/Flame Simulator Detector Sensitivity Testing Distance Model Detector Types Setting (ft/m) (ft/m) FS-1400 40/40C-M 10/3 50/15 6.6/2 100/30 19.6/6 150/45 29.5/9 215/65 39.3/12 40/40D-M 10/3 50/15 6.6/2 100/30 19.6/6 150/45 29.5/9 215/65 39.3/12 300/90... - Page 24 To replace the battery: To remove the battery, follow steps 1-4 in "To Charge the Battery" section. Insert the new battery pack in the simulator housing. Use only a SPECTREX battery pack, P/N 380004. Follow steps 9-11 in "To Charge the Battery" section...
-
Page 25: Maintenance
• Ensure the reflector and window are clean. • Before replacing the battery, check that you have a SPECTREX Battery Pack, P/N 380004. • When the simulator is not in use, remove the battery pack and recharge every 6 months. -
Page 26: Electrical Specifications
Product Overview • Vibration Protection: 1g (10–50Hz) 3.9.2 Electrical Specifications • Rechargeable four cell lithium-ion battery: Power: 14.8V (4 x 3.7V), max current 0.2A ▪ Charging: 16.8V (4 x 4.2V), max current 4A ▪ • Battery Capacity: 2.6Ah • Charging Time: 2hr at 2A 3.9.3 Physical Specifications •... - Page 27 Product Overview • Explosion proof enclosure: ATEX and IECEx Ex II 2 G D Ex db ib op is IIB + H2 T4 Gb Ex ib op is tb IIIC T135°C Db -20°C to +50°C / -4°F to +122°F cCSAus Class I, Zone 1, AEx db ib op is IIB+H2 T4 Gb Zone 21, AEx ib op is tb IIIC T135°C Db -20°C ≤...
- Page 28 Product Overview SharpEye™ Multi IR Flame Simulator User Guide...
- Page 32 Technical Support For technical assistance or support, contact: 6021 Innovation Blvd, Shakopee, MN 55379 Phone: +1 (973) 239 8398 Email: spectrex.csc.rmtna@emerson.com Website: www.spectrex.net...
