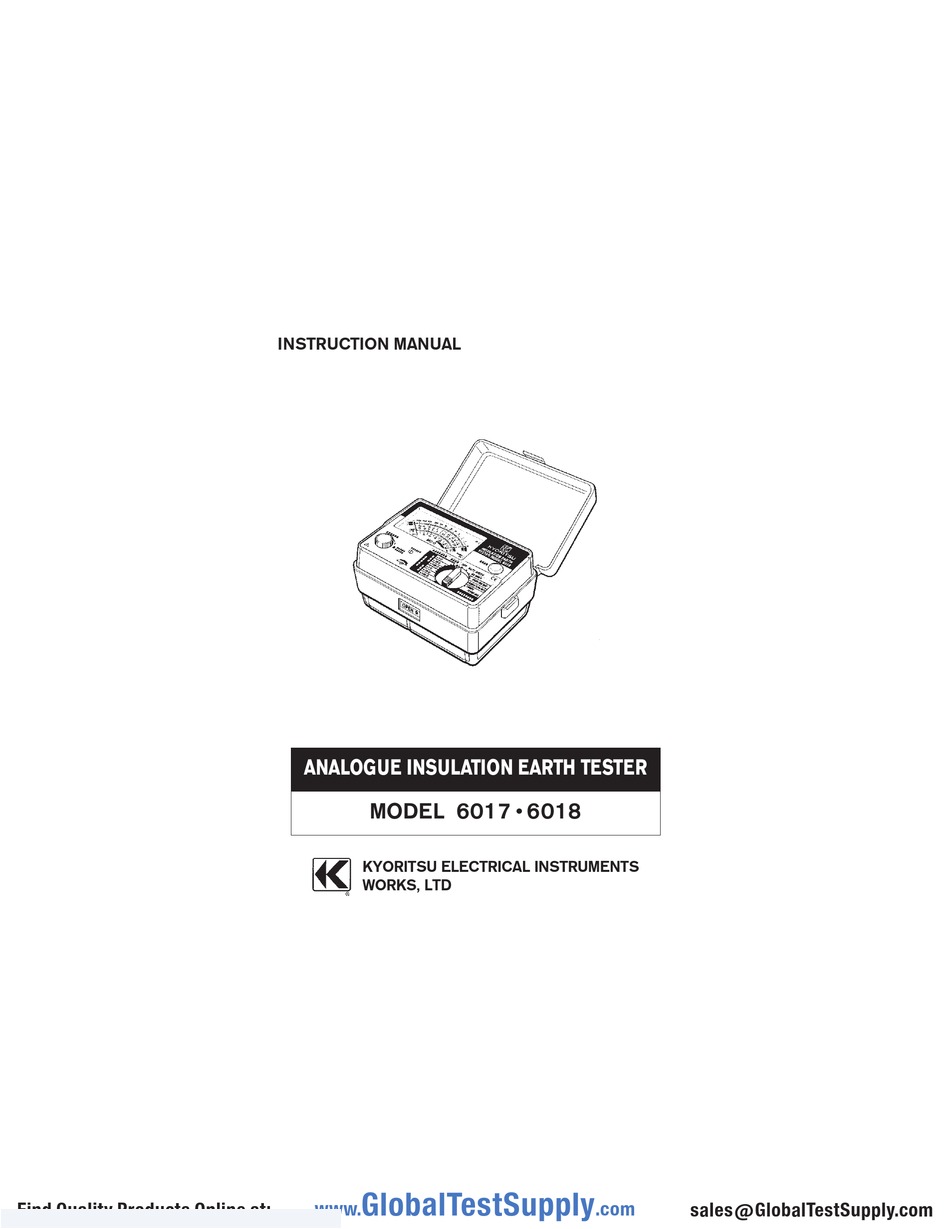

- Page 1 INSTRUCTION MANUAL ANALOGUE INSULATION EARTH TESTER MODEL 6017 6018 ¡ KYORITSU ELECTRICAL INSTRUMENTS WORKS, LTD GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of contents 1. Safety Warnings ---------------------------------------------------------------------------- 1 2. Features ---------------------------------------------------------------------------------------- 3 3. Specifications --------------------------------------------------------------------------------- 4 4. Instrument Layout --------------------------------------------------------------------------- 8 5. Preparation for Measurement 5-1 Installing Batteries ---------------------------------------------------------------------- 9 5-2 Mechanical Zero Adjustment ------------------------------------------------------- 10 5-3 Connecting Test Leads -------------------------------------------------------------- 10 5-4 Battery Voltage Check ---------------------------------------------------------------- 11 5-5 "Power-on"Indication LED ----------------------------------------------------------- 11 5-6 Scale Illumination Function ---------------------------------------------------------- 12... -
Page 3: Safety Warnings
1. Safety Warnings This instruction manual contains warnings and safety rules which must be observed by the user to ensure safe operation of the instrument and to retain it in safe condition. Therefore, read through these operating instructions before using the instrument. - Page 4 ¡ Do not install substitute parts or make any modification to the instrument. Return the instrument to Kyoritsu or your distributor for repair or re- calibration. ¡ In order to avoid possible electric shock hazard, do not touch the circuit under test during and shortly after insulation testing.
-
Page 5: Features
2. Features Model 6017/6018 (KEW-MEG-EARTH) are a versatile tester designed for insulation and earth resistance measurements on low voltage installations, wiring systems and electric appliances rated at up to 600V. It also has AC and earth voltage measurement capabilities. ¡ Five major functions in one unit Insulation resistance: M-6017;125V/ 250V/ 500V, M-6018;250V/500V/1000V... -
Page 6: Specifications
3. Specifications 3-1 Standards Designed to meet: IEC 61557-2: Insulation Tester IEC 61557-5: Earth Resistance Tester IEC 61010-1 over-voltage category CAT. e 600V, pollution degree 2 3-2 Insulation Resistance Ranges and Accuracy Function 1000V/2000MΩ 500V/100MΩ 250V/50MΩ 125V/20MΩ Rated Test Voltage 1000V 500V 250V... - Page 7 3-4 Earth Resistance Ranges and Accuracy: Simplified Measurement Function X 1 Ω X 10 Ω X 100 Ω Measuring Range 0-12 Ω 0-120 Ω 0-1200 Ω ± 3% of full scale value Accuracy (Value subtracted test lead resistance) Output current is the same as in precision measurement. 3-5 AC Voltage Ranges and Accuracy Function 600V AC...
- Page 8 3-8 General Specifications ¡ Operating Temperature : 0 to +40:, 80%RH or less, no condensation. ¡ Storage Temperature : -10 to +50:, 75%RH or less, no condensation. ¡ Response Time : Insulation resistance ranges: Within 3 sec Earth resistance ranges: Within 4 sec Insulation resistance measurement on a capacitive load can result in a longer response time.
- Page 9 : Instrument Body 130(L)x183(W)x100(D)mm. ¡ Dimensions : Approx. 1000g (batteries included). ¡ Weight : Model 7103 Test Leads with Remote Control ¡ Accessories Switch Model 7131 Safety Alligator Clip Model 7101 Probe with Blade Type Prod Model 9092 Pouch for Test Leads Model 8017 Extension Prod Batteries Eight R6P Batteries Neck strap...
-
Page 10: Instrument Layout

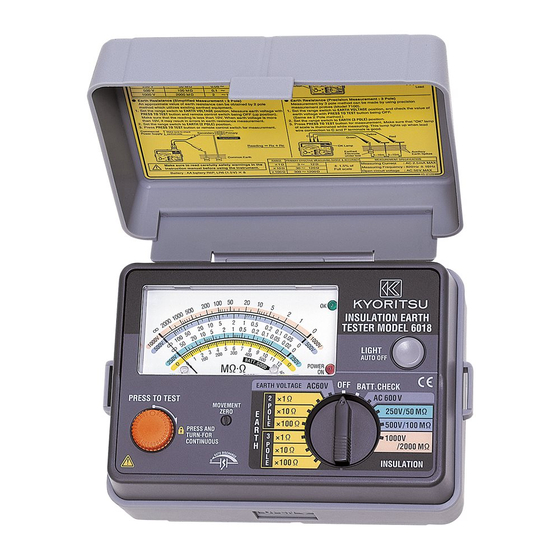

4. Instrument Layout ⑰ ⑩ ⑲ ⑬ ⑫ ⑯ ⑨ ⑪ ⑦ ⑧ ⑥ ⑤ ○ ○ ④ ⑭ ⑱ ⑳ ③ ○ ○ ○ ○ ② ① ⑮ ①METER ZERO ADJUSTER ⑭LIGHT BUTTON ②TEST BUTTON ⑮RANGE SELECTOR SWITCH ③SCALE PLATE ⑯SAFETY ALLIGATOR CLIP ④METER POINTER ⑰BLADE TYPE PROD... -
Page 11: Preparation For Measurement
5. Preparation for Measurement 5-1 Installing Batteries WARNING ¡ To avoid possible electric shock hazard, set the function selector switch to the OFF position and remove the test probe connector from the socket before opening the battery compartment cover. After battery replacement, do not use the instrument before securing the cover with the two screws. -
Page 12: Mechanical Zero Adjustment
5-2 Mechanical Zero Adjustment With the function selector switch set to the OFF position and without pressing the test button, turn the zero adjuster with a screw driver so that the pointer lines up with the ∞ mark on an insulation resistance scale. 5-3 Connecting Test Leads Slide the sliding shutter over the terminals for precision earth resistance measurement to reveal the probe socket. -
Page 13: Battery Voltage Check
5-4 Battery Voltage Check 1. Set the function selector switch to the BATT CHECK position. 2. Press the test button or the remote control switch. 3. If the meter pointer does not reach the "BATT GOOD" area, replace the batteries as shown in section 5-1 "Installing Batteries." CAUTION ¡... -
Page 14: Scale Illumination Function
5-6 Scale Illumination Function To facilitate working in dimly lit situations, a function to illuminate the scale plate is provided. To operate this function, depress and release the light button. The light will be switched on for about 60 seconds before it goes off. 5-7 Attaching Neck Strap Attaching the provided neck strap permits the use of the instrument with strap hung around the neck. -
Page 15: Fitting Case Lid Under Case
5-8 Fitting Case Lid Under Case 1.Open the case lid as shown. 2.Turn it 180 degrees. 3.Put the case under the housing case. 4.Hook it onto the housing case. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 16: Measurement
6. Measurement 6-1 AC Voltage Measurement (Mains Disconnection Check) An AC voltage range is provided for mains voltage measurement. If any voltage is present on the circuit under test in insulation resistance measurement, the display also reads the voltage before the test button is pressed. Note: ¡... - Page 17 1. Set the function selector switch to AC600V. Connect the earth probe (alligator clip on black lead) to earth of the circuit under test and the line probe (red) to the other side as shown below. If the circuit is not earthed, connect the earth probe to an appropriate conductor.
-
Page 18: Insulation Resistance Measurement
6-2 Insulation Resistance Measurement The insulation resistance function is used for insulation check on electric appliances, wiring systems, etc. The circuit under test must be disconnected from mains and de-energized before attempting to make measurement. Check the maximum voltage that may be applied to the circuit under test. - Page 19 2. Check the maximum voltage that may be applied to the circuit under test. Set the function selector switch to an appropriate insulation resistance range. 3. Connect the earth probe (alligator clip on black lead) to the earth terminal of the circuit under test.
-
Page 20: Continuous Insulation Resistance Measurement
DANGER ¡ Never touch the tips of the test probes or the circuit under test during insulation resistance measurement to avoid possible shock hazard. 6-4 Output Voltage Characteristics ・Model 6017 Output 500V Voltage(V) Range... -
Page 21: Earth Resistance Measurement
6-5 Earth Resistance Measurement The earth resistance function is used to check that equipment is properly earthed to provide appropriate protection against shock hazard to the user or damage to the equipment. Select the precision or simplified mode, then select the desired measuring range. Use the optional test leads for precision measurement. - Page 22 Make sure to drive the auxiliary earth spikes in the moist part of the earth. Give enough water if the auxiliary earth spikes have to be stuck into dry, stony or sandy part of the earth so that it may become moist. If it is not possible to drive the auxiliary earth spikes into a hard surface, such as concrete ground, lay the earth spikes there, cover them with a cloth and put water (preferably salt water).
-
Page 23: Simplified Measurement
CAUTION ¡ When earth voltage is more than 10V, accurate earth resistance measurement can not be made. Reduce the earth voltage, for example, by detaching the earth electrode from the equipment that it connects to or the disconnecting mains from the equipment. ¡... - Page 24 When making earth resistance measurement using a wall outlet, which is on the secondary side of mains power supply, use a probe with a blade type prod, instead of an alligator clip, as earth probe. (See section 8 "Adapters for Earth Lead and Replacement") Locate earth of the outlet and insert the blade type prod into it.
- Page 25 Note: ¡ When mains power supply that includes a residual current circuit breaker is used for simplified measurement, the circuit breaker does not trip since test current is as low as about 2mA. ¡ As only two terminals of the instrument are used in simplified measurement, earth resistance "R "...
-
Page 26: Test Prods For Line Probe And Replacement
7. Test Prods for Line Probe and Replacement 1. Types of test prods Model 8072: Standard Test Prod Used in ordinary situations. This type of prod is fitted to the line probe at the time of shipment. Model 8017: Extension Prod Used in difficult-to-reach situations. -
Page 27: Adapters For Earth Lead And Replacement
8. Adapters for Earth Lead and Replacement 1. Types of earth lead adapters Model 7131: Safety Alligator Clip Used to connect to an earth terminal, including an earth terminal board. Model 7101: Probe with Blade Type Prod Used to connect to earth of a mains wall outlet. 2. -
Page 28: Optional Accessories
9. Optional Accessories Model 7100 Test Lead Set for Precision Earth Resistance Measurement (includes Test Leads, Carrying Case, Cord Reels, Auxiliary Earth Spikes) Model 8016 Pickel Prod Model 7095 Earth Resistance Test Leads Model 8032 Auxiliary Earth Spikes (Two pieces) Model 8200 Cord Reels Model 9091... -
Page 29: Cleaning Meter Cover
10. Cleaning Meter Cover Do not try to remove dirt on the meter cover by rubbing hard with a dry cloth. This can remove anti-electrostatic agent applied to the surface of the meter cover. When the meter reading is affected by electrostatic build up on the meter cover, wipe the meter cover surface using a cloth dampened with off-the-shelf anti-static agent or detergent. -
Page 30: Before Sending For Repair
11. Before Sending for Repair Use the following troubleshooting guide for hints on problems with instrument operation. Condition Possible Cause The meter does deflect in BATT Check batteries are installed correctly. CHECK. "Power-on" indication LED does not Check batteries are installed correctly, or light up when the test button is check the test probe connector is correctly pressed on insulation resistance...
