E T C I n s t a l l a t i o n G u i d e
Source Four Mini LED
Install the mounting
plate screws in one of
the three position-
pairings shown.
Only the slots on the
outer circumference
will allow a true flush
mounting.
Step 3: Place the copper ground braid loop over the ground screw and attach
the ground screw to the back box.
Step 4: Connect the building ground wire to the ground wire on the fixture,
following local electrical codes.
Step 5: Connect your supply power wires to the lamp wiring using the included
two-position Wagos.
For 120V fixtures: Connect the black wire to line and the white wire to neutral.
For 230V fixtures: Connect the brown wire to line and the blue wire to neutral.
Step 6: While keeping in mind the mounting plate orientation, use the canopy
screws to secure the fixture to the mounting plate.
Step 7: Open all four of the shutter blades by sliding them outward until they
stop.
Step 8: Install a gobo and gel as desired and confirm that they are properly
secured.
Step 9: Restore power at the main fuse.
Step 10: Focus the fixture as desired.
1
2
3
Canopy
screw
hole
Pa ge 3 o f 4
Canopy
screw
hole
3
2
1

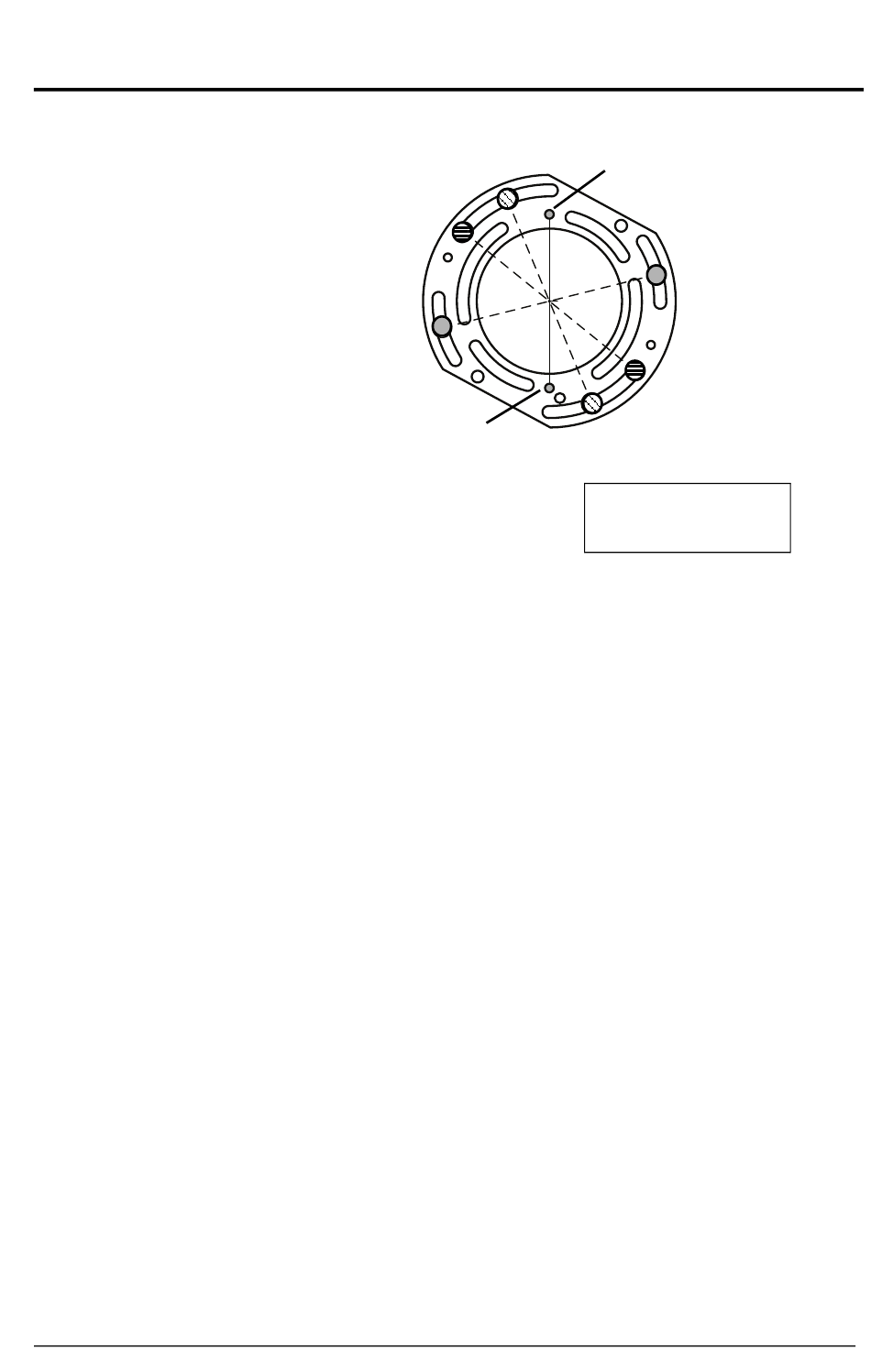

Mounting plate screw
