Operating Guide

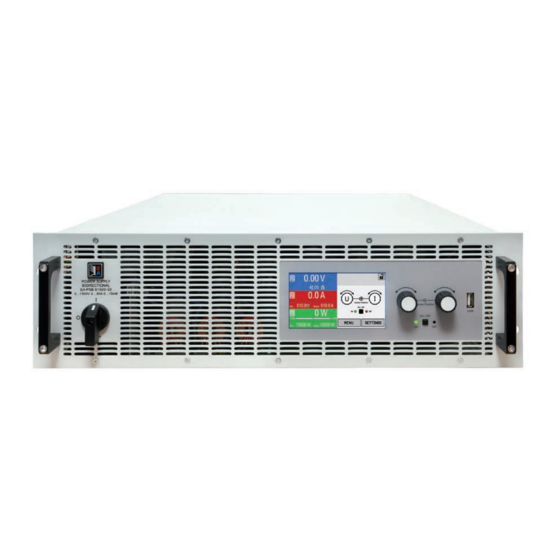

PSB 9000 3U
Bidirectional DC Power Supply
Attention! This document is only
valid for devices with firmwares
"KE: 2.25" (standard models)
resp. "KE: 2.09" (GPIB models),
"HMI: 2.04" and "DR: 1.6.5" or
higher.
Doc ID: PSB9EN
Revision: 04
Date: 11/2018
