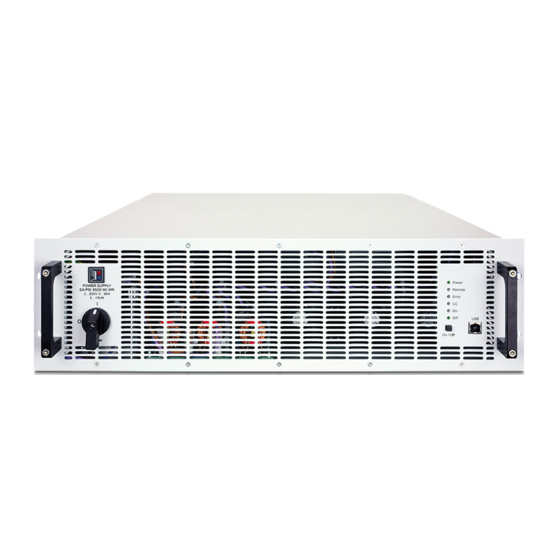

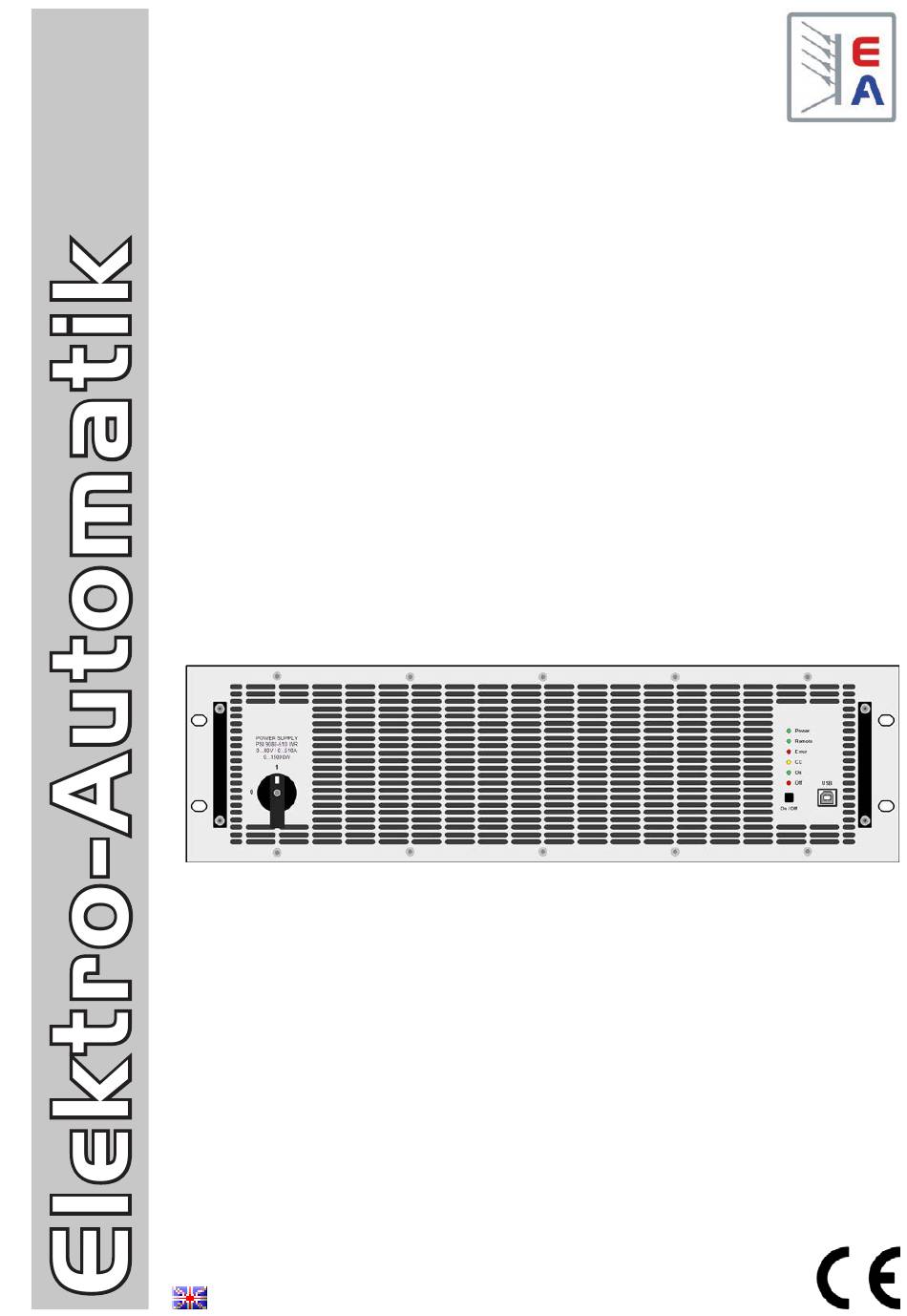

- Page 1 Operating Guide PSI 9000 WR 3U Slave DC High Efficiency Power Supply Doc ID: PSI9WSEN Revision: 02 Date: 03/2018...
-
Page 3: Table Of Contents
PSI 9000 WR 3U Slave Series TABLE OF CONTENTS GENERAL OPERATION AND APPLICATION About this document ........4 Personal safety ..........29 1.1.1 Retention and use ..........4 Operating modes .........29 1.1.2 Copyright ............4 3.2.1 Voltage regulation / Constant voltage ..29 1.1.3 Validity ............4 3.2.2... -
Page 4: General
EA Elektro-Automatik guarantees the functional competence of the applied technology and the stated performance parameters. The warranty period begins with the delivery of free from defects equipment. Terms of guarantee are included in the general terms and conditions (TOS) of EA Elektro-Automatik. Limitation of liability All statements and instructions in this manual are based on current norms and regulations, up-to-date technology and our long term knowledge and experience. -
Page 5: Disposal Of Equipment
PSI 9000 WR 3U Slave Series Disposal of equipment A piece of equipment which is intended for disposal must, according to European laws and regulations (ElektroG, WEEE) be returned to the manufacturer for scrapping, unless the person operating the piece of equipment or an- other, delegated person is conducting the disposal. -
Page 6: Safety
PSI 9000 WR 3U Slave Series Safety 1.7.1 Safety notices Mortal danger - Hazardous voltage • Electrical equipment operation means that some parts can be under dangerous voltage. Therefore all parts under voltage must be covered! This basically applies to all models, though 40 V models according to SELV can’t generate hazardous DC voltage. -
Page 7: Responsibility Of The User
PSI 9000 WR 3U Slave Series 1.7.2 Responsibility of the user The equipment is in industrial operation. Therefore the operators are governed by the legal safety regulations. Alongside the warning and safety notices in this manual the relevant safety, accident prevention and environmental regulations must also be applied. -
Page 8: Alarm Signals
PSI 9000 WR 3U Slave Series 1.7.5 Alarm signals Alarm conditions, not danger situations, are signalled on the front of this slave device in form of a red LED “Error” (also see section 1.8.4.). Because the models of this series are designed to run as slave units in a master-slave system, the master unit will indicate alarms in its own available ways. -
Page 9: Specific Technical Data
PSI 9000 WR 3U Slave Series 1.8.3 Specific technical data Model WR Slave 15 kW PSI 9080-510 PSI 9200-210 PSI 9360-120 AC Input Voltage (L-L) 342...528 V AC, 45 - 65 Hz Connection 3ph (L1+L2+L3), PE Fusing (internal) 6x T16 A Leak current <... - Page 10 PSI 9000 WR 3U Slave Series Model WR Slave 15 kW PSI 9080-510 PSI 9200-210 PSI 9360-120 Internal resistance regulation Adjustment range 0...5 Ω 0...28 Ω 0...90 Ω Accuracy ≤1% of max. resistance ± 0.3% of maximum current Insulation Allowed float (potential shift) on the DC output: Negative terminal to PE Max. ±400 V DC ±725 V DC ±725 V DC...
- Page 11 PSI 9000 WR 3U Slave Series Model WR Slave 15 kW PSI 9500-90 PSI 9750-60 PSI 91000-40 PSI 91500-30 AC Input Voltage (L-L) 342...528 V AC, 45 - 65 Hz Connection 3ph (L1+L2+L3), PE Fusing (internal) 6x T16 A Leak current <...
- Page 12 PSI 9000 WR 3U Slave Series Model WR Slave 15 kW PSI 9500-90 PSI 9750-60 PSI 91000-40 PSI 91500-30 Internal resistance regulation Adjustment range 0...166 Ω 0...375 Ω 0...1300 Ω 0...1500 Ω Accuracy ≤1% of max. resistance ± 0.3% of maximum current Insulation Allowed float (potential shift) on the DC output: Negative terminal to PE Max. ±1500 V DC ±1500 V DC...
-
Page 13: Views
PSI 9000 WR 3U Slave Series 1.8.4 Views Figure 1 - Front view Figure 2 - Rear view EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 13 Helmholtzstr. 31-37 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de... - Page 14 PSI 9000 WR 3U Slave Series EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 14 Helmholtzstr. 31-37 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...
- Page 15 PSI 9000 WR 3U Slave Series Figure 5 - View from above EA Elektro-Automatik GmbH Fon: +49 2162 / 3785-0 www.elektroautomatik.de Page 15 Helmholtzstr. 31-37 • 41747 Viersen Fax: +49 2162 / 16230 ea1974@elektroautomatik.de Germany...
- Page 16 PSI 9000 WR 3U Slave Series Figure 6 - Control Panel Overview of the elements of the operating panel For a detailed description see section „1.9.4. The control panel (HMI)“. On/Off button Can be used to switch the DC output on or off during manual operation, while LED “Remote” = off USB port For quick and easy access to the most important DC output related values when the deivce is not in master- slave mode.
-
Page 17: Construction And Function
General description The electronic high performance power supplies of the PSI 9000 WR 3U Slave are designed to extend the power of compatible models from series PSI 9000 WR 3U. The slave models are reduced to basic functions and will usu- ally run in remote control from a master of a master-slave system. -
Page 18: The Control Panel (Hmi)
Doing so is only necessary and possible in these two situations: 1. The PSI 9000 WR 3U Slave shall run as stand-alone device which is not controlled by a PSI 9000 WR 3U master. 2. The PSI 9000 WR 3U shall, due to the lack of a suitable PSI 9000 WR 3U master device, be the master of other PSI 9000 WR 3U Slave devices. -
Page 19: Share" Connector
1.9.7 “Sense” connector (remote sensing) The devices of series PSI 9000 WR 3U Slave are supposed to run as slave units in a master-slave system where the remote sensing feature is only used and connected to the master unit. For stand-alone operation outside of a master-slave setup this feature can be wired and used on the Slave mode as well. -
Page 20: Installation & Commissioning
PSI 9000 WR 3U Slave Series Installation & commissioning Transport and storage 2.1.1 Transport • The handles on the front side of the device are not for carrying! • Because of its weight, transport by hand should be avoided where possible. If unavoidable then only the housing should be held and not on the exterior parts (handles, DC output terminal, rotary knobs). - Page 21 Disadvantage of this combination: higher costs compared to a system with PSI 9000 WR 3U Slave models Combination 2: One PSI 9000 WR 3U with one or multiple PSI 9000...
-
Page 22: Installing The Device
PSI 9000 WR 3U Slave Series 2.3.2.2 AC supply AC supply connection for power supply is done via the included 5 pole plug on the rear of the device. Wiring of the plug is always 4 strand (L1+L2+L3+PE) of suitable cross section and length. For recommendations for cable cross section see „2.3.4. -
Page 23: Connection To Ac Supply
PSI 9000 WR 3U Slave Series 2.3.4 Connection to AC supply • Connection to an AC mains supply may only be carried out by qualified personnel! • Cable cross section must be suitable for the maximum input current of the device (see tables below)! • Before plugging in the input plug ensure that the device is switched off by its mains switch! • The PE conductor is imperative and must always be wired! The equipment is delivered with a 5 pole mains plug. - Page 24 PSI 9000 WR 3U Slave Series 2.3.4.3 Strain relief and plug fixture There is a standard fixture mounted to the AC input con- nection block on the rear. It is used to prevent the AC plug from loosening and disconnecting due to vibrations or similar. The fixture is also used as strain relief. Being tied to the AC input block with 4x M3 acorn nuts, it is recommend to mount the fixture every time the AC plug has been removed.
-
Page 25: Connection To Dc Loads
PSI 9000 WR 3U Slave Series 2.3.5 Connection to DC loads • In the case of a device with a high nominal current and hence a thick and heavy DC connec- tion cable it is necessary to take account of the weight of the cable and the strain imposed on the DC connection. -
Page 26: Grounding Of The Dc Output
PSI 9000 WR 3U Slave Series 2.3.5.2 Cable lead and plastic cover A plastic cover for contact protection is included for the DC terminal. It should always be installed. The cover for type 2 (see picture above) is fixed to the connector itself, for type 1 to the back of the device. Furthermore the cover for type 1 has break outs so that the supply cable can be laid in various directions. -
Page 27: Connecting The "Share" Bus
PSI 9000 WR 3U Slave Series Figure 8 - Example for remote sensing wiring 2.3.8 Connecting the “Share” bus The “Share” bus connector on the rear side is intended to balance the current of multiple units in parallel opera- tion, especially when using the integrated function generator of the master unit. Alternatively, it can be connected to a compatible electronic load, like from series ELR 9000, in order to run a two-quadrants operation. -
Page 28: Initial Commission
PSI 9000 WR 3U Slave Series 2.3.10 Initial commission For the first start-up after installation of the device, the following procedures have to be executed: • Confirm that the connection cables to be used are of a satisfactory cross section! • Check if the factory settings of set values, safety and monitoring functions and communication are suitable for your intended application of the device and adjust them if required, as described in the manual! • In case of remote control via PC, read the additional documentation for interfaces and software! -
Page 29: Operation And Application
PSI 9000 WR 3U Slave Series Operation and application Personal safety • In order to guarantee safety when using the device, it is essential that only persons operate the device who are fully acquainted and trained in the required safety measures to be taken when working with dangerous electrical voltages • For models which can generate a voltage which is dangerous by contact, or is connected to... -
Page 30: Current Regulation / Constant Current / Current Limiting
PSI 9000 WR 3U Slave Series 3.2.2 Current regulation / constant current / current limiting Current regulation is also known as current limiting or constant current mode (CC). The DC output current is held constant by the power supply, once the output current to the load reaches the ad- justed limit. Then the power supply automatically switches to CC. The current flowing from the power supply is... -
Page 31: Alarm Conditions
PSI 9000 WR 3U Slave Series Alarm conditions This section only gives an overview about device alarms. What to do in case your device indi- cates an alarm condition is described in section „3.6. Alarms and monitoring“. As a basic principle, all alarm conditions are signalled optically (by LED “Error” on the front) and via the digital interface ports. -
Page 32: Manual Operation
PSI 9000 WR 3U Slave Series Manual operation Manual operation is a secondary functionality for this type of device. It is intended to run under constant remote control by a master unit. Thus the number of available functions in manual control is reduced, compared to a standard PSI 9000 WR 3U device. -
Page 33: Remote Control
PSI 9000 WR 3U Slave Series Remote control 3.5.1 General Remote control is essential when operating devices of this series, for example during master-slave. It is furthermore possible to take over remote via one of the built-in USB ports. Important here is that only one of the digital interfaces or a master unit can be in control. -
Page 34: Programming
PSI 9000 WR 3U Slave Series SYSTem:CONFig:OCD? SYSTem:CONFig:USER:TEXT? SYSTem:CONFig:OCD:ACTion SYSTem:CONFig:UVD SYSTem:CONFig:OCD:ACTion? SYSTem:CONFig:UVD? SYSTem:CONFig:OPD SYSTem:CONFig:UVD:ACTion SYSTem:CONFig:OPD? SYSTem:CONFig:UVD:ACTion? SYSTem:CONFig:OPD:ACTion SYSTem:DEVice:CLAss? SYSTem:CONFig:OPD:ACTion? SYSTem:ERRor:ALL? SYSTem:CONFig:OUTPut:RESTore SYSTem:ERRor:NEXT? SYSTem:CONFig:OUTPut:RESTore? SYSTem:ERRor? SYSTem:CONFig:OVD SYSTem:LOCK SYSTem:CONFig:OVD? SYSTem:LOCK? SYSTem:CONFig:OVD:ACTion SYSTem:LOCK:OWNer? SYSTem:CONFig:OVD:ACTion? SYSTem:NOMinal:CURRent? SYSTem:CONFig:UCD SYSTem:NOMinal:POWer? SYSTem:CONFig:UCD? SYSTem:NOMinal:RESistance:MAXimum? SYSTem:CONFig:UCD:ACTion SYSTem:NOMinal:RESistance:MINimum? SYSTem:CONFig:UCD:ACTion? SYSTem:NOMinal:VOLTage? 3.5.4... -
Page 35: Alarms And Monitoring
PSI 9000 WR 3U Slave Series Alarms and monitoring 3.6.1 Definition of terms The device signalises alarms (see „3.3. Alarm conditions“) such as overvoltage (OV) or overheating (OT) via the front LED “Error” and as readable status via digital interface. When running the device as Slave as part of a master- slave system, the alarm is also reported to the master and if the master is with display, the alarm is indicated there as well. Basically, device alarms will switch off the DC output, primarily in order to protect the connected load and... - Page 36 PSI 9000 WR 3U Slave Series 3.6.2.1 User defined events The monitoring functions of the device can be configured for user defined events. By default, events are deac- tivated (action = NONE). Contrary to device alarms, the events only work while the DC output is switched on. It means, for instance, that you cannot detect undervoltage (UVD) anymore after switching the DC output off and the voltage is still sinking. The following events can be configured independently and can in each case trigger the actions NONE, SIGNAL, WARNING or ALARM.
-
Page 37: Other Applications
This can be done using the standard models with display or the new slave models (PSI 9000 WR 3U Slave, available since mid of 2017). Only disadvantage: the slave models are only available as 15 kW versions, so they only match the 15 kW standard models. - Page 38 PSI 9000 WR 3U Slave Series Later operation of the MS system implies: • The master unit calculates the sum of the actual values of all the units and makes them available to read via the digital interfaces • The ranges for setting the values, adjustment limits, protections (OVP etc.) and user events (UVD etc.) of the master are adapted to the total number of units.
-
Page 39: Series Connection
3.7.2 Series connection The device from series PSI 9000 WR 3U Slave are supposed to run in master-slave parallel operation. In case different kinds of operation are intended for a device and it is removed from the master-slave system, series con- nection of two or multiple units is possible, but with restrictions. For reasons of safety and keeping the insulation intact, following restrictions apply: • Both, negative (DC-) and positive (DC+) output poles, are connected to PE via type X capaci-... -
Page 40: Two Quadrants Operation (2Qo)
PSI 9000 WR 3U Slave Series 3.7.3 Two quadrants operation (2QO) 3.7.3.1 Overview The so-called two-quadrants operation, which is based on the source-sink principle, couples a power supply and an electronic load are via a control signal. It enables the automatic switchover between either the source or the sink being active. -
Page 41: Service And Maintenance
PSI 9000 WR 3U Slave Series Service and maintenance Maintenance / cleaning The device needs no maintenance. Cleaning may be needed for the internal fans, the frequency of cleanse is depending on the ambient conditions. The fans serve to cool the components which are heated by the inherent power loss. Heavily dirt filled fans can lead to insufficient airflow and therefore the DC output would switch off too... -
Page 42: Contact And Support
PSI 9000 WR 3U Slave Series We recommend to install updates only if... • an imminent problem with your device can directly be solved, especially if we suggested to install an update during a support case • a new feature has been added which you definitely want to use. In this case, the full responsibility is transferred to you. - Page 44 EA Elektro-Automatik GmbH & Co. KG Development - Production - Sales Helmholtzstraße 31-37 41747 Viersen Germany Fon: +49 2162 / 37 85-0 ea1974@elektroautomatik.de www.elektroautomatik.de...
