Refrigeration controller, aerospace climate control electromechanical filtration fluid & gas handling hydraulics pneumatics process control sealing & shielding (6 pages)
Page 1
This manual was downloaded on www.sdsdrives.com +44 (0)117 938 1800 - info@sdsdrives.com aerospace aerospace 598/599P climate control climate control electromechanical fi ltration fi ltration External Stack fl uid & gas handling fl uid & gas handling hydraulics hydraulics pneumatics pneumatics HA500841 Issue 3 process control process control...
Page 2
This manual was downloaded on www.sdsdrives.com +44 (0)117 938 1800 - info@sdsdrives.com...
Page 3
All rights strictly reserved. No part of this document may be stored in a retrieval system, or transmitted in any form or by any means to persons not employed by a Parker Hannifin Manufacturing Limited company without written permission from Parker Hannifin Manufacturing Limited. Although every effort has been taken to ensure the accuracy of this document it may be necessary, without notice, to make amendments or correct omissions.
Page 4
The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalogue and in any other materials provided from Parker or its subsidiaries or authorized distributors.
Page 5
This manual was downloaded on www.sdsdrives.com +44 (0)117 938 1800 - info@sdsdrives.com Hazards DANGER! - Ignoring the following may result in injury This equipment can endanger life by exposure to For measurements use only a meter to IEC 61010 (CAT rotating machinery and high voltages.
Calibration error in the Software, i.e. a 1000:1 CT will actually result in half the expected output current. The Current Transformer, if not purchased from Parker SSD Drives, should have a core with a low magnetising current to reduce the measurement error, and maximum output voltage of approximately 6 volts. Under normal operation the output from the three Current Transformers is fed via a 3 phase rectifier to a fixed burden, thus the output voltage under normal conditions is 1.1Vdc plus two diode volt drops.
Twin coloured, for gate and cathode identification Secondary Outer Sleeving Required for the length of passage from trigger board terminal blocks to the wire exiting the 598P/599P External Stack Controller. Rated for the external stack system voltage, and 105°C operation. Maximum Run Length Wire Grouping Run trigger wires as a bundled group, where possible.
2000/R and the Armature Current Setting is M * Normal. i.e. if the CT Ratio is 1000:1 you will need to set 2 * the required current. Note this may mean that you may have to select a Higher Current Range on the Initial Product. 598P/599P Application Manual...

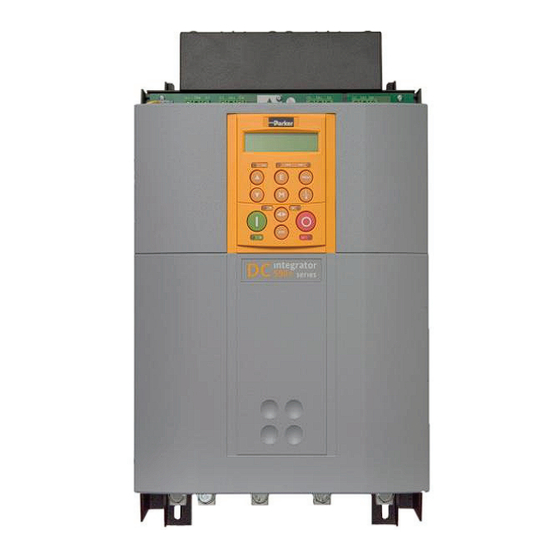

Block Variable Description XXXX Product 598P : 590+ External Stack Controller 4Q DC Drive 599P : 591+ External Stack Controller 2Q DC Drive XXXX Four Digits describing the Maximum Field DC Current Output. 0060 = 60 Amps 0120 = 120 Amps Three Digits describing the Nominal 3 Phase Supply Voltage.
European directives. Compliance with harmonised standards provides a "presumption of conformity” and is the route which has been adopted by Parker SSD Drives. CE Marking for the Low Voltage Directive (LVD) 2006/95/EC...
50m, then the separation would be (50/10) x 0.25m = 1.25m. • Sensitive cables should cross noisy cables at 90°. • Ensure EMC filter input and output cables are separately routed and do not couple across the filter. 598P/599P Application Manual...
Page 26
The drive is CE marked in accordance We Parker SSD Drives, address as below, declare under our sole responsibility that the above with the low voltage Electronic Products when installed and operated with reference to the instructions in the Product...
