- Page 1 IQAN-LST Instruction book Publ no HY33-8303-IB/UK Edition 2015-11-19...
-
Page 2: Table Of Contents
Dimensioning of the IQAN-LST ........9... -
Page 3: Introduction
Contact the manufacturer if there is anything you are not sure about or if you have any questions regarding the product and its handling or maintenance. The term "manufacturer" refers to Parker Hannifin Corporation. Instruction book, IQAN-LST... -
Page 4: Precautions
Safety during installation ARNING Incorrectly positioned or mounted cabling can be influenced by radio signals which can interfere with the functions of the system. Instruction book, IQAN-LST... - Page 5 • The machine cannot start moving. • Functions are positioned safely. • The machine is turned off. • The hydraulic system is relieved from any pressure. • Supply voltage to the control electronics is disconnected. Instruction book, IQAN-LST...
-
Page 6: Product Description

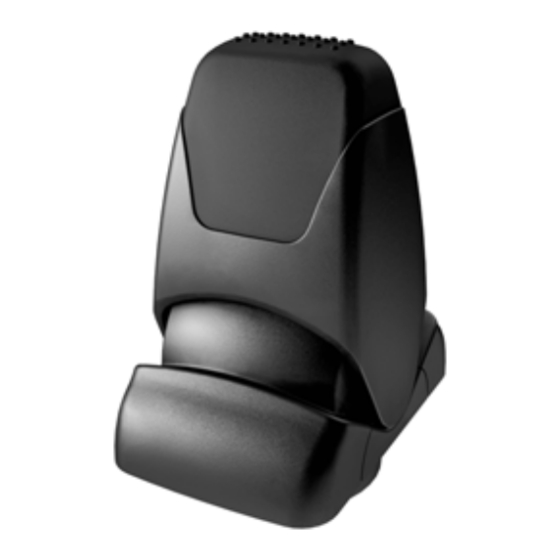

IQAN-LST Product description Product description IQAN-LST The IQAN-LST is one of several single axis joysticks designed for controlling hydrau- lic functions in vehicles and machinery, using 0,5-4,5Vdc outputs. The IQAN-LST lever. Output The IQAN-LST has two (2) contactless hall effect sensors that provide mirrored volt- age outputs for controlling proportional valve drivers. -
Page 7: Installation
Amp no. 828922 IQAN crimping Red handle, pos. A tool references use Yellow extraction tool IQAN tool kit Parker no. 5031061 The IQAN tool kit is found in the ’IQAN accessories’ datasheet. Signal name (+5Vdc) VOUT-A VOUT-B Instruction book, IQAN-LST... -
Page 8: Iqan-Lst Technical Overview
IQAN-LST Technical Overview Appendix A Appendix A IQAN-LST Technical Overview Absolute maximum rating = +25 °C (unless otherwise specified) Ambient temperature, T -40 to 85 °C Storage temperature -40 to 100 °C Max, overvoltage on V and VOUT pins 8.5 V (14V for max 10 minutes) External magnetic field 2.5 mT... - Page 9 IQAN-LST Technical Overview Appendix A Base - Electrical characteristics Voltage supply, V 4.5 to 5.5 V Current supply, V max. 23 mA, typ. 16 mA @ 5V Number of VOUT 2 antivalent signals VOUT signal - minimum position 500 mV ±150 mV @ 2x10 cycles 500 mV ±200 mV @ 5x10...
-
Page 10: Dimensioning Of The Iqan-Lst
Dimensioning of the IQAN-LST Appendix B Appendix B Dimensioning of the IQAN-LST Ø 26 units=mm Instruction book, IQAN-LST... - Page 11 For latest information visit our website www.iqan.com Information in this instructionbook is subject to change without notice Publ no HY33-8303-IB/UK Edition 2015-11-19 Parker Hannifin Parker Hannifin Electronic Controls Division Electronic Controls Division SE-435 35 Mölnlycke 1651 N. Main Street Sweden...
