ANLEITUNG FÜR EINBAU, BEDIENUNG UND WARTUNG

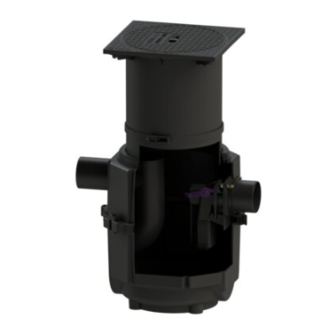

KESSEL - Leichtflüssigkeitsabscheider EasyOil
aus Polyethylen NS 1,5
KESSEL - EasyOil NS 1,5
zum Einbau ins Erdreich
Installation
der Anlage wurde durchgeführt von Ihrem Fachbetrieb:
Name/Unterschrift
01/2018
Inbetriebnahme
Datum
Einweisung
Ort
Bedienungsanleitung
D
Seite 1-14
Installation Manual
GB
Page 15-28
99601.002B
99601.016 B/D
99601.041.B/D
Produktvorteile
Leichte Einbringung
in die Baugrube
ohne Baukran möglich
Einfache, schnelle Montage
Recycling freundlicher
Werkstoff
Absolut wasserdicht
durch nahtlose mono-
lithische Bauweise
Bundesweites Servicenetz
Stempel Fachbetrieb
Sach-Nr. 308-100

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99601.002B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kessel 99601.002B

  • Page 1 ANLEITUNG FÜR EINBAU, BEDIENUNG UND WARTUNG KESSEL - Leichtflüssigkeitsabscheider EasyOil aus Polyethylen NS 1,5 Bedienungsanleitung Seite 1-14 KESSEL - EasyOil NS 1,5 Installation Manual Page 15-28 zum Einbau ins Erdreich 99601.002B 99601.016 B/D 99601.041.B/D Produktvorteile Leichte Einbringung in die Baugrube ohne Baukran möglich...
  • Page 2 Sicherheitshinweise Das Personal für Einbau, Montage, Bedienung, Wartung und Reparatur muss die entspre- chende Qualifikation für diese Arbeiten aufweisen. Verantwortungsbereich, Zuständigkeit und die Überwachung des Personals müssen durch den Betreiber genau geregelt sein. Die Betriebssicherheit der gelieferten Anlage ist nur bei bestimmungsgemäßer Verwen- dung gewährleistet.
  • Page 3: Table Of Contents

    Inhaltsverzeichnis 1. Sicherheitshinweise ................. Seite 2. Einsatzbereich ................. Seite 3. Technische Daten Maßzeichnung Öl-/Benzinabscheider ...... Seite 4. Verpackung, Transport Transport..............Seite und Lagerung Lagerung ..............Seite 5. Einbau und Montage Einbauvoraussetzungen ........... Seite Verfüllmaterial ............Seite Baugrube ..............Seite Prüfungen vor dem Einbau ........Seite Einbau ..............
  • Page 4 Sehr geehrter Kunde, wir freuen uns, dass Sie sich für ein Produkt von KESSEL entschieden haben. Die gesamte Anlage wurde vor Verlassen des Werkes einer strengen Qualitätskontrolle unterzogen. Prüfen Sie bitte den- noch sofort, ob die Anlage vollständig und unbeschädigt bei Ihnen angeliefert wurde. Im Falle eines Transportschadens beachten Sie bitte die Anweisungen in Kapitel „Gewährleistungen“...
  • Page 5 ) sinkt. Wird die maximale Ölspei- möglichst kurz gehalten werden sollten. Ein spezielles Ein- chermenge erreicht, sinkt der Schwimmer und verschließt laufsystem im KESSEL Öl-/ Benzinabscheider EasyOil be- zuverlässig den Ablauf des Abscheiders. wirkt eine sogenannte Pfropfenströmung. D.h. die Strömung Der selbsttätige Verschluss eines Abscheiders ist eine „Not-...
  • Page 6: Transport

    Gewicht Art.Nr. Abscheiderinhalt (mm) (l/s) (mm) (mm) (mm) (mm) (mm) (kg) 17,6 99601.002B 1091 1012 70,5 99601.016B/D 1000 1425 1300 99601.041B/D Verpackung, Transport und Lagerung Das Kapitel Sicherheitshinweise ist zu beachten! 4.2 Lagerung Sollte eine Lagerung der Behälter vor dem Einbau erfor- 4.1 Transport...
  • Page 7: Einbauvoraussetzungen

    Einbau und Montage Während der Zwischenlagerung des Abscheiders so wie bis gen. Die Böschungen müssen der DIN 4124 entsprechen. zum Abschluß der Einbauarbeiten müssen an der Baustelle Die Tiefe der Baugrube ist so zu bemessen, daß die Grenzen geeignete Sicherungsmaßnahmen getroffen werden, um der Erdüberdeckung nicht überschritten werden.
  • Page 8: Einbau

    Höhe Aufstau- Ab laufleitungen frostfrei zu verlegen und anzuschließen. sensor, vom 917802 Innenboden Das teleskopische KESSEL-Aufsatzstück in die Öffnung gemessen (in mm) des Abscheiders einstecken und in die ge wünschte Position bringen. Mit Hilfe des vorhandenen Klemm ringes kann nun das Aufsatzstück in der gewünschten Position (Ausrichtung...
  • Page 9: Anlage In Betriebsbereitschaft Setzen

    Die Inbetriebnahme und Einweisung wird in der Regel 5. Erstellung des Übergabeprotokolls. von ei nem Fachbetrieb durchgeführt, kann aber auch auf Wunsch gegen Berechnung von einem KESSEL-Beauftrag- Nach Beendigung der Einweisung ist die Anlage wieder in ten durchgeführt werden. betriebsbereiten Zustand zu setzen.
  • Page 10 Wartung 1. Eigenkontrolle BITTE BEACHTEN SIE: ➤ Sachkundige Personen ➤ Bedienungsvorschriften sind in der näheren Umgebung ➤ Messung der Schichtdicke von: des Abscheiders anzubringen. - Leichtflüssigkeits ➤ Der Entsorgungsvorgang ist genau nach Anweisung - der Schlammschicht durchzuführen. Kontrolle des selbsttätigen Abschlusses und der ➤...
  • Page 11 915 813 D 1330-1660 915 823 A 915 823 B 915 823 D * Minimale Einbautiefe erreichbar durch Absägen KESSEL-Zwischenstück aus Kunststoff Art.Nr. 915 402 für vertieften Einbau. KESSEL-Verlängerungsstück für Probenameschacht Für vertieften Einbau Aufstockhöhe max. 600 mm (kürzbar). Fabrikat: KESSEL Ausführung Art.Nr.
  • Page 12 Alarm mit potentialfreiem Kontakt, mit Fühlereigenüberwachung und Alarmwiederho- lung. Art.Nr. 917 801 KESSEL-Alarmanlage zur Grenzstandsanzeige des Aufstaus für Koaleszensabscheider Grenzstandsonde mit 5 m Anschlusskabel (bis max. 200 m verlängerbar), Befesti- gungsset für einfache Montage und Wartung (Sonde ist damit von oben erreichbar), wasserdichter Kabelverbindung zum Verlängern des Anschlusskabels, Durchgangsrohr...
  • Page 13 Anlagenpaß / Werksabnahme Anlagenpass / Werksabnahme...
  • Page 14 NOTIZEN...
  • Page 15 INSTALLATION AND OPERATING INSTRUCTIONS KESSEL – Oil/fuel separator EasyOil PE Separators NS 1,5 99601.002B KESSEL - Oil/fuel separator EasyOil 99601.016 B/D NS 1,5 for underground installation 99601.041.B/D Product advantages Easy on-site mobility without the need for heavy machinery Simple and quick installation...
  • Page 16 1. Safety Precautions Personnel used for installation, assembly, operation, maintenance and repair must have the cor- responding qualifications for such work. Areas of responsibility and the supervision of personnel must be clearly specified by the operator. The operating safety of the system supplied is only ensured in the event of proper use. The limit values specified in the technical data must not be exceeded under any circumstances.
  • Page 17 Table of Contents 1. Safety instructions ..................Page 16 2. General ..................Page 19 3. Technical specifications Dimensioned drawing ............. Page 20 4. Transport and storage Transport ................Page 20 Storage ................Page 20 5. Installation and assembly Installation requirements ..........Page 21 On-site earthwork ............
  • Page 18 Installation, Maintenance and User's Manual. Upon delivery of the KESSEL separator please thoroughly inspect the separator to make sure that it has not been damaged during shipping. In case damage has occurred to the separator, please follow the instructions listed in the...
  • Page 19 / fuel from flowing up to 0.95 g/cm out of the separator’s outlet. In KESSEL oil / fuel separator - with self actuating emergency closure float switch. systems, this consists of a float switch which is installed in a guide pipe which during operation is full of water.
  • Page 20: Dimensioned Drawing

    4.1 Transport before installation, it is important that the separator is placed Transportation of the KESSEL separator should be handled on firm level ground and in an area where it is protected from only by a transporter who has the proper knowledge, equip- coming in contact with other objects.
  • Page 21: Installation Requirements

    Installation and assembly During the intermediate storage of the separator and until 5.3 Trench preparation / Backfilling completion of the installation work, suitable safeguarding measures must be taken at the building site to prevent The sub-base of the installation trench should be a 30cm accidents and damage to the separator thick flat compacted layer of 8/16 gravel / process, Dpr = 95%).
  • Page 22: Installation

    / outlet. Before installing the KESSEL upper sections be sure to insert the gasket into the recessed opening of the ac- cess shaft. Lubricated the gasket and insert the polymer upper section to the desired height / position.
  • Page 23 The separator should be returned to service by filling by a licensed tradesman although upon request can be hand- the separator with fresh, cold water led by a KESSEL representative. 3. Hand-over of installation and user’s manual. 1. The following personnel should be on hand when the initial instructions for placing the separator into operation are given: 4.
  • Page 24 Maintenance 1. Do it yourself inspection Pleaser insure that: - Technically trained staff - Installation and User’s Manual and all relevant documen- - Measurement of: tation is placed in an accessible area near the separator. - Oil / fuel level - The disposal procedure is handle as documented - Sludge level - The disposal is handled only by a licensed professional...
  • Page 25 Accessories / Replacement parts KESSEL-Sampling Chamber B=400 for connection to separator systems For underground installation, free flowing sample availability. For installation depths T=…. DN 100 / 150 inlet / outlet (required size cut off on-site), connection to SML pipe according to DIN 19522.
  • Page 26 Accessories / Replacement parts KESSEL Oil / fuel level monitoring device. 5 meter connection cable (extendable up to 200 meter), installation set, watertight cable connection, conduit access insert, IP 54 control unit housing, plug in ready, with LED and audible alarm and potential free contact.
  • Page 27 Separator characteristics Separator Characteristics...
  • Page 28 NOTICE...
