ACS contsys Sonicont USN4SP Technical Manual

Ultrasonic level transmitter / level switch non-contact measurement of filling levels in liquids, pastes and coarse bulk materials
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

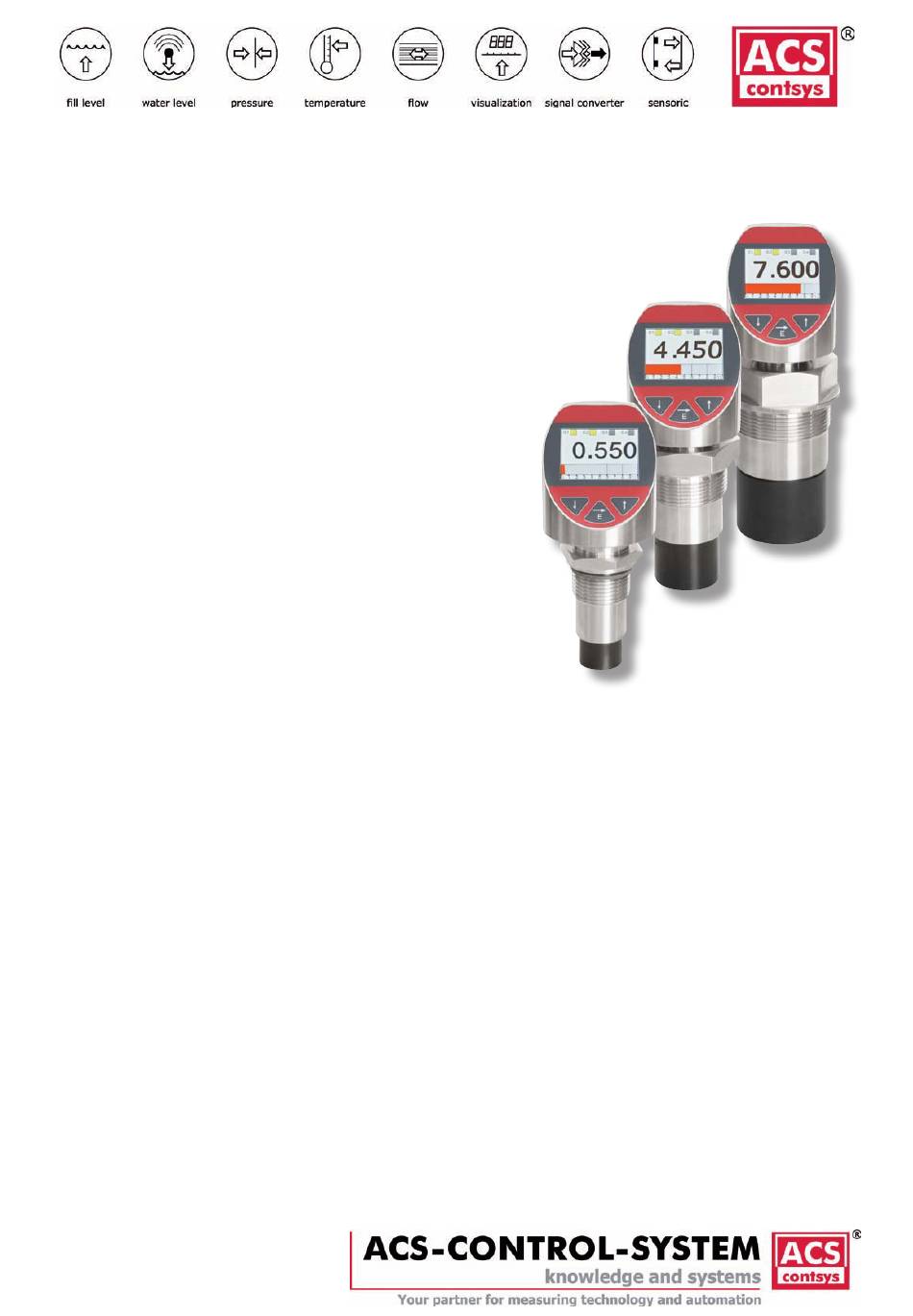

Sonicont USN4SP
Ultrasonic level transmitter / level switch
Non-contact measurement of filling levels
in liquids, pastes and coarse bulk materials
Technical manual
01.18
Applications
Non-contact level and volume measurement or
flow measurement at open channels and measuring weirs
for
Water and waste water sector
•
•
Process industry
Environmental technology
•
Storage tanks, storage bunkers, silos
•
Main features
Wide range of applications
Measuring ranges up to 8m in liquids and bulk materials
•
Wide process temperature range –40°C to +85°C
•
•
High protection class IP65 / IP67
Wide environmental temperature range –20°C to +70°C
•
High accuracy – characteristic deviation ≤ 0,2% of measuring
range
Integrated evaluation electronic
•
Graphic display, keyboard
4x PNP switch output
•
1x current output 0/4...20mA – voltage output 0...10V
•
•
Measure data memory for more than 500.000 measuring
values
Battery powered data logger function
•
•
Bluetooth-Interface
Connector plug M12
•
High operating comfort
•
Enclosure and display rotatable for optimal operability in
each installation position
High contrast high brightness TFT-LCD display for best
•
readability
3-key operation without additional assistance with tactile
•
feedback
•
Easy handling by clear menu navigation
Extensive diagnostic functions for system analysis
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sonicont USN4SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACS contsys Sonicont USN4SP

Summary of Contents for ACS contsys Sonicont USN4SP

  • Page 1 Sonicont USN4SP Ultrasonic level transmitter / level switch Non-contact measurement of filling levels in liquids, pastes and coarse bulk materials Technical manual 01.18 Applications Non-contact level and volume measurement or flow measurement at open channels and measuring weirs Water and waste water sector •...
  • Page 2 You have purchased a high-grade and modern measuring device of ACS-CONTROL-SYSTEM GmbH. We want to give thanks for your purchase and for your confidence to us. The actual technical manual includes instructions for installation, electrical connection and inauguration, as well as the technical data of the device. Modifications, that answer the purpose of the technical progress, are reserved by ACS-CONTROL-SYSTEM GmbH without prior notice.

  • Page 3: Table Of Contents

    Index 1 System description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Intended use ...........

  • Page 4: System Description

    1 System description 1 .1 Intended use The device is an electronic level transmitter / level switch for monitoring, control as well as continuous measurement of filling levels in liquids, pastes and coarse bulk materials. Additional application fields are volume or flow measurement. The operational reliability of the device is ensured only at the intended use.

  • Page 5: Function

    1 .4 Function 1 .4 .1 Measuring principle The transducer of the ultrasonic sensor transmits ultrasonic pulses to the product surface. These pulses are reflected by product surface and received back by the transducer as echoes. The running time of the ultrasonic pulses from emission to reception is proportional to the distance and hence the level.

  • Page 6: Safety Notes

    2 Safety notes 2 .1 Operational safety The device is safely built and tested according to state-of-the-art technology and has left the factory in perfect condition as regards technical safety. The device meets the legal requirements of all relevant EU directives. This is confirmed by attaching the CE mark.

  • Page 7: Installation

    Installation The correct function of the device within the specific technical data can only be guaranteed, if the permitted process and environmental temperatures (see chapter „Technical data“) will not be exceeded. 3 .1 Installation place 3 .1 .1 Level measurement • Do not install the sensor in the middle of the tank (C).
  • Page 8 3 .1 .2 Installation in narrow shafts • In narrow shafts with strong interference echoes, we recommend using a stand pipe resp. an ultrasound guide pipe (e.g. PE or PVC wastewater pipe) with a minimum diameter of 100mm. • Make sure that the pipe is not soiled by accumulated dirt. If necessary, clean the pipe at regular intervals.

  • Page 9: Installation Notes

    3 .2 Installation notes • Drive the system pressure free prior installation resp. deinstallation of the sensor. • The screw-in of the thread process connection by using the terminal enclosure, the connection plug resp. the connection cable is not permitted. • The tightening of the thread process connection may only be done at the hexagon by a suitable spanner and with the maximum permitted torque strength (see chapter „Technical data“).
  • Page 10 3 .2 .5 Nozzle installation Use a pipe nozzle if you cannot maintain the blocking distance in any other way. • The interior of the nozzle must be smooth and may not contain any edges or welded joints. In particular, there should be no burr on the inside of the tank side nozzle end. • To minimize disturbing factors, we recommend an angled socket edge (ideally 45°).

  • Page 11: Electrical Connection

    Electrical connection The electrical connection of the device must be carried out according to the respective country specific standards. Incorrect installation or adjustment could cause applicationally conditioned risks. Warning! The instrument may only be installed if the supply voltage is switched off. 4 .1 Potential equalization - earthing The device must be grounded.

  • Page 12: Analogue Output

    4 .5 Analogue output 4 .5 .1 Current output – Load resistor A load resistor, e.g. the measuring shunt of an evaluation device, requires a minimum supply voltage. Dependent on the connected supply voltage and the maximum output current, it results in a maximum value for this resistor, where a correct function is still possible.
  • Page 13 4 .6 .3 Electronic output type R 1x signal 0/4…20mA-0…10V, 4x switch PNP, supply 24VDC ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 14: Operation

    Operation 5 .1 Operation and display parts A – LCD display Display of measuring value, device state and operation menu • B - Key Down In the selection menu navigation downwards • In the set menu decreasing of value • Used, in combination with the key up, for leaving selection and set menu without applying •...
  • Page 15 I1 - Linearization > Level - display scaling e.g. 0,4..1,8 m = 0..2000 m I2 - Linearization > Percent 0..100 % - Lin. Percent 0..100 % I3 - No linearization J - Signal output > e.g. 0..100 % = 4..20 mA resp. 0..20 mA resp. 0..10V R –...

  • Page 16: Menu Structure

    5 .3 Menu structure The entrance to the different function areas of the selection and set menu layer is done by the main menu (push the key Enter/Shift right for 3 seconds). If failures are registered (see chapter diagnose/failure), these are indicated prior the jump into the main menu.

  • Page 17: Navigation

    5 .4 Navigation The navigation in a submenu and in a selection window is done by the keys Up and Down. The selection of a submenu and the selection of a setting in a selection menu is done by the key Enter/Shift right.

  • Page 18: Output

    5 .5 Output The symbol E at a menu item indicates its position in the extended menu structure. This extended menu structure can be shown in the submenu display by the menu item menu structure. A – Hysteresis function B – Window function C –...
  • Page 19 5 .5 .1 .2 Switch Point / Reset Switch Point The input values refers to the set display value or acc. to display scaling. The reset switch point must be lower or equal to the switch point. At inverse measuring principle, e.g. distance measurement, the reset switch point must be greater or equal to the switch point.
  • Page 20 Operating Mode outside • The switch output is activated, if the current measuring value is outside the area that is defined by the switch point and the reset switch point and if the set switch point delay time has been expired. The switch output is deactivated, if the current measuring value is inside the area that is defined by the switch point and the reset switch point and if the set reset switch point delay time has been expired.
  • Page 21 5 .5 .1 .4 .5 Pump function runtime S1/S2/S3/S4 Pump function runtime is used to control several pumps with the same function dependent on the previous running time. Always the pump with the shortest running time is switched on and the pump with the longest running time switched off.
  • Page 22 5 .5 .1 .4 .6 Pump function sequential S1/S2/S3/S4 Purpose of the pump function sequential is the alternating use of multiple pumps for the same task (Overflow protection or dry running protection). Due using the pumps for the same task, it can be detected by the pump switch-on time, if one of the pumps doesn’t operate with the necessary performance (Runtime of the pump increases).
  • Page 23 5 .5 .1 .6 Forced switchover – E This menu item is only available at function principle pump function runtime resp. pump function sequential. The purpose of the forced switchover is the change of a pump after a predefined dime. This gets relevant, if the measuring value does not change for a longer time and thus always the same pump is switched-on.
  • Page 24 Operating mode 0-20mA The linear output range is 0…20,5mA. >> At exceedance the limit values will be kept. • • 0mA >> At exceedance the error signal 0mA is generated. 22mA >> At exceedance the error signal 22mA is generated. •...

  • Page 25: Basic Setting

    5 .6 Basic setting The symbol E at a menu item indicates its position in the extended menu structure. This extended menu structure can be shown in the submenu display by the menu item menu structure. 5 .6 .1 Measure conditions Preselection for optimized adaption at increased requirements.
  • Page 26 Extreme foam / Extreme dust • At extreme foam resp. extreme dust the measuring signal will be damped very much. The activation of this function allows at such applications a significant improvement of the signal evaluation. Default > no Fast change rate •...
  • Page 27 5 .6 .5 Limit min/max – E If the measuring value exceeds the limits of the Min/Max-Adjustment, these limits are kept at activated function. An exceedance is not possible. At deactive function measurement values besides the limit values are output. This function is especially useful at a flow measurement to avoid negative flow measuring values.
  • Page 28 5 .6 .8 Linearization Due to the integrated linearization function it is possible, to linearize a measuring signal e.g. for volume calculation of conical or horizontal cylindrical vessels or also for flow calculation. A - Tank with linearization points 1 / 2 / 3 / 4 B - Characteristic distance - level not linearized C - Characteristic distance - level linearized 5 .6 .8 .1 Predefined linearization curves...
  • Page 29 5 .6 .8 .2 Input mode custom defined linearization Percent / Linearized Percent • Filling level / Display Scaling • CSV-file via Bluetooth-interface • The percentual input (referring to the measuring range) is only possible without applying measuring value, whereby the input in filling level and display scaling e.g. liter can be done without applying measuring signal as well as with applying measuring signal.
  • Page 30 5 .6 .10 Date/Time Input of date and time. For the measurement value recording, the measurement values are supplied with a time stamp of the integrated real time clock, which includes date and time. The set values are buffered at a short time (see chapter „Technical data“) supply voltage fail, whereas a longer failure resets the values.

  • Page 31: Display

    5 .7 Display The symbol E at a menu item indicates its position in the extended menu structure. This extended menu structure can be shown in the submenu display by the menu item menu structure. 5 .7 .1 Indicator value The measuring value can be alternatively displayed as distance, as filling level, percentual, with any desired scaling referring percentual to the measuring range or by displaying the analogue output value.
  • Page 32 5 .7 .2 Scaling This menu item is only available at indicator value scaled. By defining a scaling the measuring range can be rescaled into any desired numerical range. This allows e.g. the indication of the volume in liter. The current measuring value is indicated in the display. The input of the measuring range limits 0% and 100% are not mandatory.
  • Page 33 5 .7 .5 Indicator Type Dependent on the requirements the measuring values can be indicated in different types. Digital Switch points, active or deactive • Sensor TAG • Digital measuring value • Unit • Quantity counter value (only at activated function quantity counter) •...
  • Page 34 Vertical Bargraph Vertical percentual scaled bargraph • Chart Scaled graphical measuring value-to-time-window • • Selected historical digital measuring value with unit and with date / time • Digital measuring value with unit. • The entrance to the chart menu is done by pushing the key Enter/Shift right for 3 seconds. •...
  • Page 35 5 .7 .8 Password Protection For the protection of the settings against unauthorized persons individual or all main menu items can be protected by a password. At each activation of the main menu the password protection is active. An unknown or forgotten password can be erased by use of a service code and an activation code. These codes can be requested at the manufacturer.
  • Page 36 5 .7 .11 Dimmer function – E To reduce the supply current and also to minimize the system typical aging influences on the brightness of the backlight an automatic dim after 5 minutes of inactivity (no key touch) can be activated.

  • Page 37: Simulation - E

    5 .8 Simulation – E The symbol E at a menu item indicates its position in the extended menu structure. This extended menu structure can be shown in the submenu display by the menu item menu structure. 5 .8 .1 Output 5 .8 .1 .1 Switch Output S1/S2/S3/S4 The switch output is activated resp.

  • Page 38: Diagnosis

    5 .9 Diagnosis 5 .9 .1 Envelope curve The current measuring signal is displayed as curve. The envelope curve is displayed, below those the measuring signal is ignored. The valid measuring signal is marked by a vertical mark. Downright the characteristic curve the current distance value is displayed with unit m and the corresponding measured signal level in dB.
  • Page 39 5 .9 .2 Switching Outputs 5 .9 .2 .1 Operation Cycles S1/S2/S3/S4 The number of operation cycles per switch output is indicated. An operation cycle is a complete change of the switch state till back to the start state, thus deactive - active - deactive.
  • Page 40 Output underflow • Undershoot of the analogue output range OutA1 depending on selected operating mode Operating mode 4-20mA >> 3,8mA Operating mode 0-20mA >> -0,4mA – theoretical value Operating mode 0-10V >> -0,5V – theoretical value Default > activated Temperature sensor •...

  • Page 41: Data

    5 .10 Data The device is able to record app. a half million measuring values loss-protected. The recording is made in ring memory method, whereas after an overflow the oldest measuring values are overwritten next. The stored measuring values can be displayed graphically in the indicator type chart or exported as CSV-file per Bluetooth-interface.
  • Page 42 Protected resp . encoded transmission • A PIN is used. If a PIN is used, the devices must be connected together for a transmission. The procedure differs depending on the end device. A PIN must be input and the visibility must be switched to on. Afterwards the connection can be made at the end device.
  • Page 43 5 .10 .1 .3 Receive firmware update The internal software of the device (firmware) can be updated by a new firmware, which could include functional improvements, functional extensions, new functions or also customer specific modifications. At the file transmission the safety of the power supply must be ensured. A power fail can lead to a completely irreversible device failure.
  • Page 44 Quantity counter active • • Default > No Quantity counter The current quantity counter value, which is calculated at the moment of entering the menu, is displayed. This value can be actualized by the keys Up or Down. Unit Volume •...

  • Page 45: Start-Up Procedure

    5 .11 Start-up procedure 5 .11 .1 Level measurement The filling level is calculated by the device due to the distance of the filling material surface to the sensor. Sub menu Basic Setting Commissioning • Min/Max Adjustment • Sub menu Display Indicator value fill level •...
  • Page 46 5 .11 .2 Volume measurement For the indication of the tank volume a display scaling can be made. If a nonlinear tank style is used, a linearization must be set. Predefined linearization curves for some tank styles are available. Sub menu Basic Setting •...
  • Page 47 5 .11 .3 Flow measurement For the indication of the flow amount a display scaling can be made. If a nonlinear flow opening style is used, a linearization must be set. Predefined linearization curves for some flow opening styles are available. Sub menu Basic Setting Commissioning •...

  • Page 48: Software History

    5 .12 Software history Version Date Modifications 4.1.0 07/2017 Original version ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 49: Service

    6 Service 6 .1 Maintenance The device is free of maintenance. Special substances can lead to solid coatings on the sensor. Seized depositions can lead to faulty measurement results. In the case of coat forming liquids the sensor must be regularly cleaned e.g. with clear water. Don’t use sharp resp.

  • Page 50: Technical Data

    Technical Data 7 .1 Auxiliary power supply Supply voltage U Setting output 0/4...20 mA 9..30 V , reverse polarity protected Setting output 0…10 V 14..30 V , reverse polarity protected Residual ripple U ≤ 2V ≤ U ≤ U Smin Smax Supply current I Setting output 0/4...20 mA...

  • Page 51: Output

    7 .3 Output 7 .3 .1 Analogue output – current 0…20mA Operating range I 0…20,5mA, max. 22mA Permitted load R ≤ (U - 9V) / 22mA Step response time T ≤ Pulse rate t = 0s) Start-up time t ≤ 1s 7 .3 .2 Analogue output –...

  • Page 52: Interface Bluetooth

    7 .5 Interface Bluetooth Version Bluetooth 2.1 + EDR Specification Class 2 Transmit power ≤ 2,5mW/4dBm Range ≤ 10m 7 .6 Data memory Memory size ≥ 500.000 measuring values Memory system Ring memory Memory rate 1…99999s 7 .7 Clock Cycle accuracy ≤...

  • Page 53: Dimension Drawings

    Dimension drawings 8 .1 Terminal enclosure 8 .2 Process connection Type 5 – Thread ISO 228-1 – G1”B / Measuring range type 02 – 2m ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 54 Type 7 – Thread ISO 228-1 – G1½”B / Measuring range type 05 – 5m ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 55 Type D – Thread ISO 228-1 – G2”B / Measuring range type 08 – 8m ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 56: Ordering Information

    9 Ordering information 9 .1 Order code Type USN4S Standard Measuring system – material diaphragm / sensor type (process wetted) PVDF / Piezo Approval Standard Process connection Thread ISO 228-1 – G1”B Thread ISO 228-1 – G1½“B Thread ISO 228-1 – G2“B others Material process gaskets (process wetted)

  • Page 57: Additional Options

    9 .2 Additional options For the device additional options are available. The respective abbreviation subsequently follows the order code. • LABS-free, silicone-free / paint compatible version • Measurement point designation / TAG – Laser marking • Customer label on device – Laser marking •...
