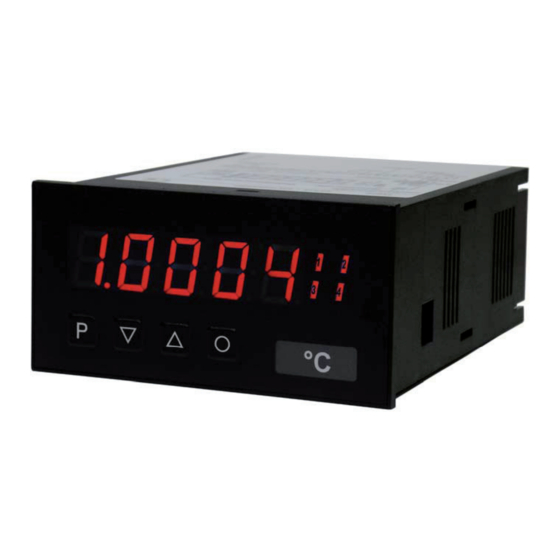

ACS contsys DAL-311-2 Series Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual M3
Pt100 3-/4-wire -200.0°C...850.0°C / -328.0°F...1562.0°F
User manual M3
Operating Instructions
Pt100 3-/4-wire -200.0°C...850.0°C / -328.0°F...1562.0°F
DAL-311x2x0S
Pt100 3-/4-wire -200,0°C...850,0°C / -328,0°F...1562,0°F
Technical features:
• red display of -19999...99999 digits (optional: green, orange or blue display)
Technical features:
• installation depth: 120 mm without plug-in terminal
• min/max memory
• red display of -19999...99999 digits (optional: green, orange or blue display)
• optical threshold value indication at threshold value exceedance / undercut
• installation depth: 120 mm without plug-in terminal
• permanent min/max-value recording
• min/max memory
• brightness control
• optical threshold value indication at threshold value exceedance / undercut
• programming interlock via access code
• permanent min/max-value recording
• protection class IP65 at the front
• brightness control
• plug-in terminal
• programming interlock via access code
• option: 1 or 2 analog outputs
• protection class IP65 at the front
• option: 2 or 4 relay outputs or 8 PhotoMos outputs
• plug-in terminal
• option: interface RS232 or RS485
• option: 1 or 2 analog outputs
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices
without keypad and for a simple adjustment of standard devices
• option: 2 or 4 relay outputs or 8 PhotoMos outputs
• option: interface RS232 or RS485
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices
without keypad and for a simple adjustment of standard devices
M3_1CGB.pdf update: 02.04.2015
M3_1CGB.pdf update: 02.04.2015
96x48
96x48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAL-311-2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ACS contsys DAL-311-2 Series

Summary of Contents for ACS contsys DAL-311-2 Series

  • Page 1 User manual M3 Pt100 3-/4-wire -200.0°C…850.0°C / -328.0°F…1562.0°F User manual M3 Operating Instructions Pt100 3-/4-wire -200.0°C…850.0°C / -328.0°F…1562.0°F DAL-311x2x0S Pt100 3-/4-wire -200,0°C…850,0°C / -328,0°F…1562,0°F Technical features: • red display of -19999…99999 digits (optional: green, orange or blue display) Technical features: •...
  • Page 2 Order code power supply Note 100-240V AC 10...40V DC galvanic seperated 100-240V AC with sensor supply 24V DC/50mA and digital input sensor supply 10...40V DC galvanic seperated with sensor supply 24V DC/50mA and digital input only at 0/4...20 mA, other voltages 0...10V DC input function input Pt100 input, 3 + 4-wire up to 850°C...

  • Page 3: Table Of Contents

    Contents Brief description Assembly Electrical connection Function description and operation 4.1. Programming software PM-TOOL Setting up the device 5.1. Switching on 5.2. Standard parameterisation (flat operation level) Value assignment for the triggering of the signal input 5.3. Programming interlock „RUN“ Activation/Deactivation of the programming interlock or change into professional or flat operation level...

  • Page 4: Brief Description

    1. Brief description 1. Brief description The panel meter instrument DAL-311 is a 5-digit device for Pt100 sensors and a visual The panel meter instrument M3-1C is a 5-digit device for Pt100 sensors and a visual threshold value threshold value monitoring via the display. The configuration happens via 4 keys at the front or via the monitoring via the display.

  • Page 5: Assembly

    2. Assembly 2. Assembly Please read the Safety advices on page 27 before installation and keep this user manual for future reference. Gap for physical unit After removing the fixing elements, insert the device. Check the seal to make sure it fits securely. Click the fixing elements back into place and tighten the clamping screws by hand.

  • Page 6: Electrical Connection

    3. Electrical connection 3. Electrical connection Type DAL-311x2x0S Type M3-1TR5B.010C.W70BD supply 10-40 VDC, galv. Isolated, 18-30 VAC Type DAL-311x2x0S Type M3-1TR5B.010C.S70BD supply 100-240 VAC, DC ± 10% ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 7: Function Description And Operation

    4. Function and operation description 4. Function and operation description Operation The operation is divided into three different levels. Menu level (delivery status) This level was designed for the standard settings of the device. Only menu items which are sufficent to set the device into operation are displayed.

  • Page 8: Programming Software Pm-Tool

    4. Function and operation description Function chart: 4.1 Parameterisation software PM-TOOL: Part of the PM-TOOL are the software on CD and an USB-cable with device adapter. The connection happens via a 4-pole micromatch-plug on the back side of the device, to the PC-side the connection happens via an USB plug.

  • Page 9: Setting Up The Device

    5. Setting up the device 5. Setting up the device 5.1. Switching on Once the installation is complete, start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.
  • Page 10 5. Setting up the device Menu level Parameterisation level Setting up the display time, SEC: Default: 1.0 then The display time is set with [▲] [▼]. The display moves up in increments of 0.1 up to 1 second and in increments of 1.0 up to 10.0 seconds. Confirm the selection by pressing the [P] button. The display then switches back to the menu level again.

  • Page 11: Programming Interlock „Run

    5. Setting up the device Menu level Parameterisation level Function for threshold value undercut / exceedance, Fu-1: Default: high A limit value undercut is selected with Louu (for LOW = lower limit value), a limit value exceedance with High (for HIGH = higher limit value). If e.g. limit value 1 is on a threshold level of 100 and allocated with function High, an alarm is activated by reaching of the threshold level.

  • Page 12: Extended Parametersation (Professional Operation Level)

    5. Setting up the device 5.4. Extended parametrisation (Professional operation level) 5.4.1. Signal input parameters Menu group level Menu level Menu level Parameterisation level Selection of the input signal, tYPE: Default: 4l Available as measuring input types are 3- and 4-wire-Pt100 signals. Confirm the selection with [P] and the display switches back to menu level.
  • Page 13 5. Setting up the device Menu level Parameterisation level Setting up the display time, SEC: Default: 1.0 then The display time is set with [▲] [▼]. The display moves up in increments of 0.1 up to 1 second and in increments of 1.0 up to 10.0 seconds. Confirm the selection by pressing the [P] button. The display then switches back to the menu level again.

  • Page 14: General Device Parameters „Fct

    5. Setting up the device 5.4.2. General device parameters Menu group level Menu level Menu level Parameterisation level Display time, DISEC: Default: 01.0 then The display is set up with [▲] [▼]. Thereby it switches up to 1 second in increments of 0.1 seconds and up to 10.0 seconds in increments of 1.0.
  • Page 15 5. Setting up the device Menu level Parameterisation level Display flashing, FLASH: Default: no A display flashing can be added as additional alarm function either to single or to a combination of off-limit condition. With no, no flashing is allocated. Assignment (deposit) of key functions, tASt: Default: no For the operation mode, special functions can be deposited on the navigation keys [▲] [▼], in...

  • Page 16: Safety Parameters „Cod

    5. Setting up the device 5.4.3. Safety parameters Menu group level Menu level Menu level Parameterisation level User code U.Code: Default: 0000 Via this code reduced sets of parameters can be set free. A change of the U.CodE can be done via the correct input of the A.CodE (master code).

  • Page 17: Serial Parameters „Ser

    5. Setting up the device 5.4.4. Serial parameters Menu group level Menu level Menu level Parameterisation level Device address, ADDR: Default: 001 The device address is adjusted from the smallest to the largest digit with the navigation keys [▲] [▼] and confirmed digit per digit with [P]. A device address up to max. 250 is available. Interface data: Baudrate 9600 bit/s, 8 databyte, 1 stopbit, no parity (8n1).

  • Page 18: Analog Output Parameters „Out

    5. Setting up the device 5.4.5. Analog output parameters for analog output 1 Menu group level Menu level Menu level Parameterisation level Selection reference of analog output, OutPt: Default: actua The analog output signal can refer to different functions, in detail these are the current measurand, the min-value or the max-value.
  • Page 19 5. Setting up the device Menu level Parameterisation level Overflow behaviour, O.FLoU: Default: edge To recognise and evaluate faulty signals, e.g. by a controller, the overflow behaviour of the analog output can be defined. As overflow can be seen either EdGE, that means the analog output runs on the set limits e.g.
  • Page 20 5. Setting up the device Menu level Parameterisation level Selection analog output, Ou2.rA: Default: 4-20 3 output signals are available 0-10 VDC, 0-20 mA and 4-20 mA. Select the desired signal with this function. Setting the final value of the analog output, Ou2.En: Default: 850.0 The final value is adjusted from the smallest to the highest digit with [▲] [▼] and confirmed digit per digit with [P].

  • Page 21: Relay Functions „Rel

    5. Setting up the device 5.4.6. Relay functions Menu group level Menu level Menu level Parameterisation level Alarm relay 1, rEL-1: The same applies for relays 2-4 Default: al-1 …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms Al-1/4 or deactivated alarms Aln1/4.
  • Page 22 5. Setting up the device Menu level Parameterisation level Alarm relay 5, reL-5: The same applies for relays 6-8 Default: al-5 …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms AL6/8 or deactivated alarms ALN6/8.

  • Page 23: Alarm Parameters „Al1

    5. Setting up the device 5.4.7. Alarm parameters Menu group level Menu level Menu level Parameterisation level Dependency alarm 1, ALrM.1: Default: actua The dependency of alarm 1 can be related to special functions, in detail these are the current measuring value, the min-value, the max-value.

  • Page 24: Reset To Factory Settings

    6. Reset to factory settings Menu level Parameterisation level Switching-on delay, ton-1: Default: 000 For limit value 1 one can preset a delayed switching-on of 0-100 seconds. Switching-off delay, toF-1: Default: 000 For limit value 1 one can preset a delayed switching-off of 0-100 seconds. Back to menu group level, rEt: With [P] the selection is confirmed and the device changes into menu group level „–Al1–“.

  • Page 25: Alarms / Relays

    7. Alarms / Relays 7. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1-S4; furthermore alarms can be controlled by events like e.g.

  • Page 26: Interfaces

    8. Interfaces RS232 and RS485 8. Interfaces RS232 and RS485 The interface RS485 is connected via a screened data line with twisted wires (Twisted-Pair). On each end of the bus segment a termination of the bus lines needs to be connected. This is neccessary to ensure a secure data transfer to the bus.

  • Page 27: Technical Data

    9. Technical data 9. Technical data Housing Dimensions 96x48x120 mm (BxHxD) 96x48x139 mm (BxHxD) incl. plug-in terminal Panel cut-out 92.0 +0,8 x 45.0 +0,6 Wall thickness to 15 mm Fixing screw elements Material PC Polycarbonate, black, UL94V-0 Sealing material EPDM, 65 Shore, black Protection class standard IP65 (Front), IP00 (Back side) Weight...
  • Page 28 9. Technical data Switching outputs Relay with change-over contacts 250 VAC / 5 AAC; 30 VDC / 5 ADC Switching cycles 30 x 10 at 5 AAC, 5 ADC ohm resistive load 10 x 10 mechanically Diversity according to DIN EN50178 / Characteristics according to DIN EN60255 PhotoMos outputs 8 normally open (NO) contacts 30 VDC/AC, 0,4 A...

  • Page 29: Safety Advices

    10. Safety advices 10. Safety advices 10. Safety advices 10. Safety advices 10. Safety advices 10. Safety advices Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep it for future reference.

  • Page 30: Error Elimination

    11. Error elimination 11. Error elimination Error description Measures The unit permanently indicates • The input has a very high measurement, check overflow. the measuring circuit. • The input is open. The unit permanently shows • The input has a very low measurement, check underflow.
  • Page 31 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 32      Füllstand Pegel Druck Temperatur Durchfluss Regis- Sensorik Visua- Mess- trierung lisierung umformer Wir erwarten Ihren Anruf. ACS-CONTROL-SYSTEM GmbH Lauterbachstr. 57 D- 84307 Eggenfelden Tel: +49 (0) 8721-9668-0 Fax: +49 (0) 8721-9668-30 ACS-CONTROL-SYSTEM info@acs-controlsystem.de know how mit System www.acs-controlsystem.de Ihr Partner für Messtechnik und Automation...
