Flowcont UN
Flow meter

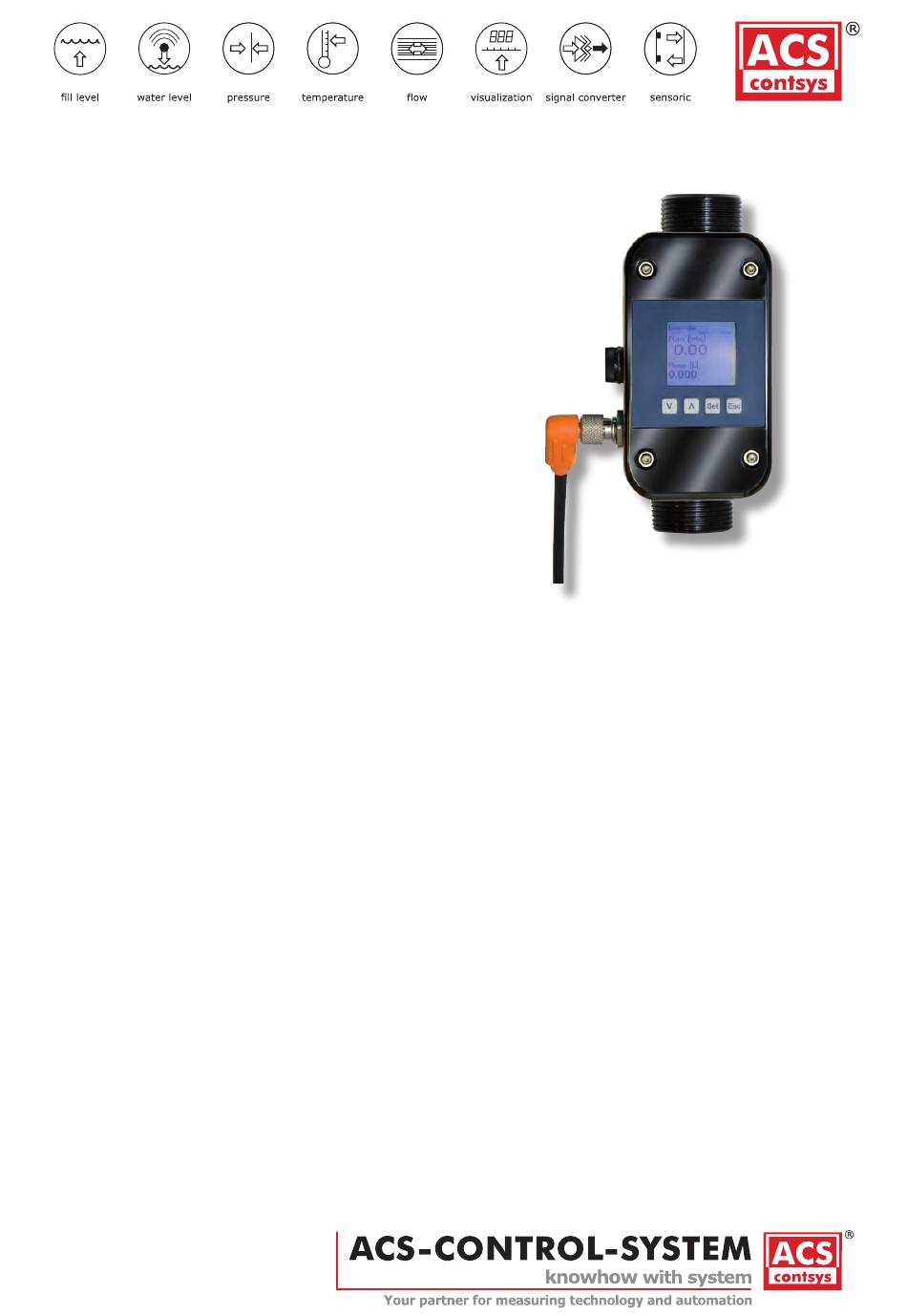

Ultrasonic flow meter Flowcont UN
Non-contact flow measurement
Operating Instructions
03.14
Main features
Flow sensor for conductive and non-conductive liquids
No moving parts, compact design
Process temperature up to 80 ° C, process pressure up to
10 bar
High chemical resistance due to seal-free sensor design
Large display with keypad
Integrated empty pipe detection
Easy to clean, hygienic version available (EHEDG-approved
and FDA compliant), CIP
Maintenance free flow sensor, saving maintenance costs
Adjustable ranges, reduces variants
Can be used for conducting and non-conducting liquids,
reduces variants and storage costs
Straight measuring tube reduces pressure loss, thus
saving on energy costs
Seal-free sensor increases process reliability and
availability
Flexible measuring system for all industries

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowcont UN and is the answer not in the manual?

Questions and answers

Related Manuals for ACS contsys Flowcont UN

Summary of Contents for ACS contsys Flowcont UN

  • Page 1 Flowcont UN Flow meter Ultrasonic flow meter Flowcont UN Non-contact flow measurement Operating Instructions 03.14 Main features Flow sensor for conductive and non-conductive liquids No moving parts, compact design Process temperature up to 80 ° C, process pressure up to...
  • Page 2 You have purchased a high-grade and modern measuring device of ACS-CONTROL-SYSTEM GmbH. We want to give thanks for your purchase and for your confidence to us. The actual technical manual includes instructions for installation, electrical connection and inauguration, as well as the technical data of the device. Modifications, that answer the purpose of the technical progress, are reserved by ACS-CONTROL-SYSTEM GmbH without prior notice.

  • Page 3: Table Of Contents

    Index Principle of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Safety notes .

  • Page 4: Principle Of Operation

    • energized state. Incorrect handling or improper use can lead to malfunctions in your application. • Flowcont UN can be used by the Pressure Equipment Directive (PED) of group 2 only for „non- • hazardous liquids.“ Applications The Flowcont UN flow meter is particularly suited for measuring highly dynamic processes in pipelines.

  • Page 5: Commissioning

    Commissioning Installation notes An arrow on the measuring channel of the Flowcont UN indicates the flow measurement direction. The measuring device must be installed such that the flow passes through the measuring tube in the direction of the arrow. TOP -> Outlet Bottom ->...

  • Page 6: Mounting

    If the device cannot be mounted vertically, the pipe in which the measuring device is located should always be full. Preventing the formation of gas bubbles in the Flowcont UN measuring channel will aid optimal measurements.
  • Page 7 Application with hot fluids In applications where the Flowcont UN is subject to high heat (t < 60 °C), we recommend mounting the measuring device and electronic housing beneath the measurement area. This allows the heat to radiate upwards and reduces its effects on the device electronics.

  • Page 8: Electrical Connection

    Electrical connection The Flowcont UN is connected via a ready-made cable socket with M12x1 plug, with 5 pins or 8 pins. Plug in the cable socket without power onto the sensor and screw it tight. Connect the cable in accordance with its function. After application of the supply voltage, the sensor carries out a self-test –...
  • Page 9 grey Analog output QA 4 ... 20 mA; 0 ... 20 mA Functions: For example: 0 l/min => 4 1. Flow 36 l/min => 20 mA 2. Temperature Alarm => 3,5 mA (dependent on set measuring area) Connection diagram 8-pin variant Wire colour Function Description...
  • Page 10 black Digital output Q2 Digital output Q2 Functions: Can be freely set in the range of 0.1 to 3000 ml/ 1. Empty pipe detection pulse in stages of 0.1 ml/pulse, 2. Pulse npn or pnp transistor, 3. Threshold monitoring max. load 18 ... 30 V / 100 mA. 4.

  • Page 11: Operation

    Commissioning procedure If the Flowcont UN is being used as a flow meter for water or liquids similar to water, it generally does not require an on-site adjustment because the factory setting parameters listed below ensure optimal function.
  • Page 12 Menu ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 13 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 14 Units The Flowcont UN is able to show actual flow or the volume in different unities. Following unities can be selected: ml/s + l , Gal/min +Gal , l/min + l , l/min + m³.
  • Page 15 Creeping flow The creeping suppression serves the purpose of excluding flows from the measurement that can evolve through convection in a narrow frame around zero, even with a closed valve. At the factory, the creeping suppression is set at a reasonable standard value in relation to the cross-section of the flow meter.
  • Page 16 Setting area: off, pulse output, empty pipe, lower limit, upper limit, negative flow Media The Flowcont Un dispose of a medium matrix with up to 8 interpolation values. Different medias can be managed in the sub menu “Media”. Matrix values can be saved and if needed be loaded for different medias.
  • Page 17 1. The Flowcont UN as dosing device (dosing control Flowcont UN) The Flowcont UN does the entire dosing control. The dosing quantity (e.g. 400 ml) is pre-set in the FFU using the user menu of the display. Dosing starts, as soon as line digital input is wired to 24 V, e.g.

  • Page 18: Overview Of Default Settings

    Is the sample line completely filled with liquid? Is there a corresponding counterpressure? The Flowcont UN is ready for operation. ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 19: Dimensional Drawing

    Dimensional drawing ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 20 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 21 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 22: Technical Data

    Technical data Features NW10 NW15 NW20 NW25 Measuring Ultrasonic sensor principle Medium Fluids Nominal width NW10 NW15 NW20 NW25 measuring tube Process 0 °C ... +80 °C temperature Process pressure Max. 16 bar Max. 10 bar EHEDG approval Performance NW10 NW15 NW20 NW25...
  • Page 23 Enclosure rating IP 67 Weight 340 g 350 g 420 g 460 g Electronics Supply voltage 18 V DC ... 30 V DC Ripple < 5 V Power consumption < 180 mA Initialization time < 5 s Ansprechzeit Filter off 100 ms, filter low 300 ms, filter medium 1 s, filter strong 4.2 s Protection class Electrical connection...
  • Page 24 Digital output General All outputs switch over to high resistance when the supply is smaller than 18 V. When overload or short circuit is detected the digital outputs were switched off after 100 μs for a period of 2 s. When time is up the outputs get applied again.
  • Page 25 Startup of device While dosing Before/after dosing NPN normally High impedance High impedance closed NPN normally open High impedance High impedance PNP normally High impedance High impedance 24 V closed PNP normally open High impedance 24 V High impedance Characteristic analog output 0 - 20 mA For the following graphic “min Range”...
  • Page 26 4 bis 20 mA For the following graphic “min Range” is used for 0 % and “max Range” is used for 100 %. Value Current Empty pipe 3.5 mA Smaller -1.2 % 3.8 mA Between -1.2 % and 0 % Linear interpolation from 3.8 mA to 4 mA 0 % (min range) 4 mA...
  • Page 27 Filter configurations Filter 100% Soft 16 s Medium 1 min Streng 4 min Influence of the environment temperature In the table below some examples of the temperature influence are shown. Liquid + Enviroment = Measured temperature temperature temperature 40°C + 20°C = 34°C 40°C + 30°C...
  • Page 28 Filter options for analog output Filter Response time 0.1 s soft 0.3 s medium strong 4.2 s Digital Input General When configuration of the input is changed a device restart is required. After restart the changes are active. Available input functions Set offset Creeping Dosing...

  • Page 29: Return

    Return Declaration of no objection (contamination declaration in case of service work) Rinse off or clean removed devices before returning them in order to protect our employees and the environment from dangers of residue of measured materials. Failed devices can only be examined when accompanied by a completely filled-out return form. Such a declaration includes information about all materials which have come into contact with the device, including those which were used for testing purposes, operation, or cleaning.
