ACS contsys DAL-311x0x0S Operating Instructions Manual

Direct current / direct voltage signals: 0/4-20 ma, 0-10 vdc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual M3
Direct current / direct voltage signals: 0/4-20 mA, 0-10 VDC
User manual M3

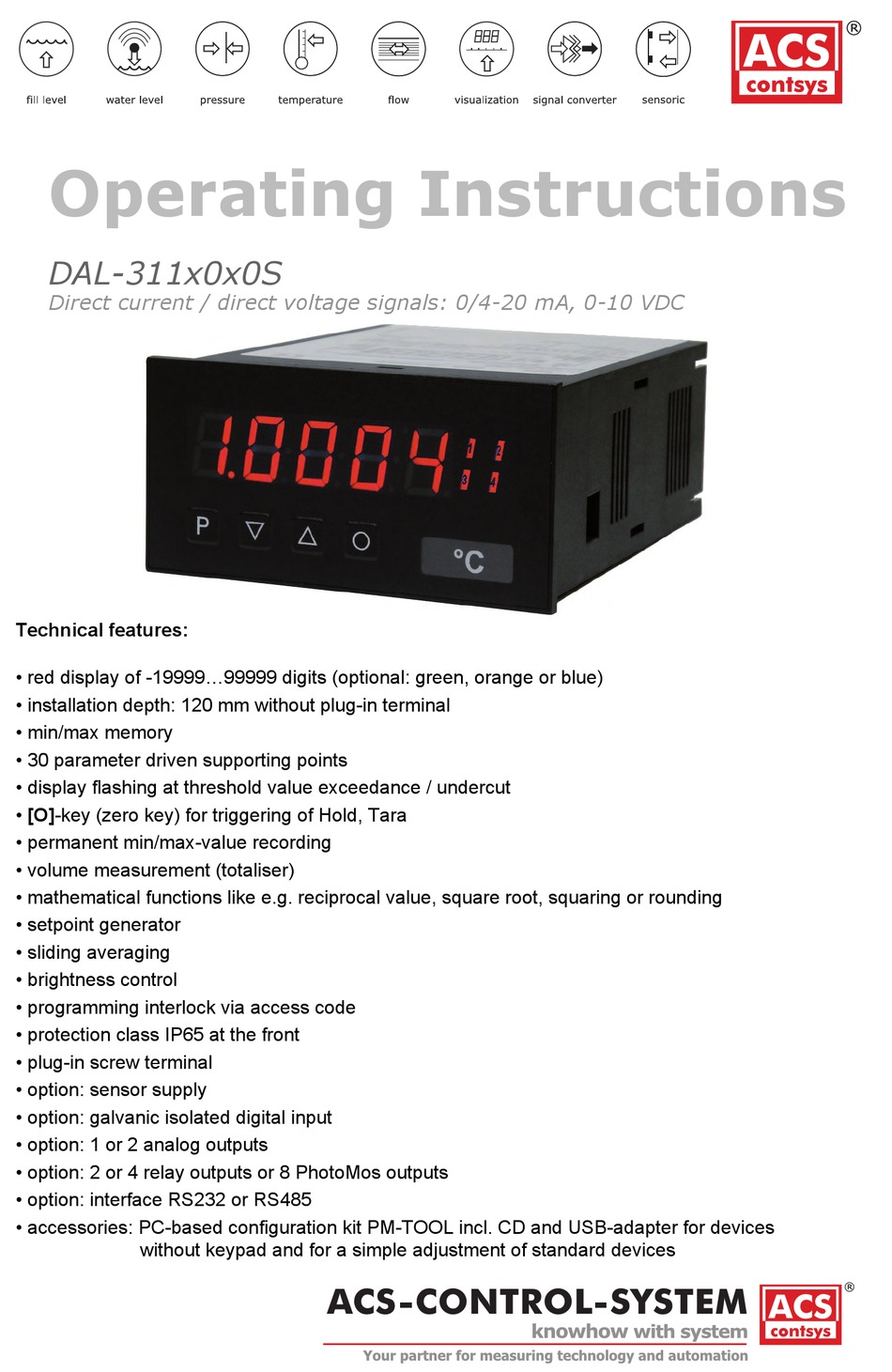

Operating Instructions

Direct current / direct voltage signals: 0/4-20 mA, 0-10 VDC
DAL-311x0x0S
Direct current / direct voltage signals: 0/4-20 mA, 0-10 VDC
Technical features:
• red display of -19999...99999 digits (optional: green, orange or blue)
• installation depth: 120 mm without plug-in terminal
Technical features:
• min/max memory
• 30 parameter driven supporting points
• red display of -19999...99999 digits (optional: green, orange or blue)
• display flashing at threshold value exceedance / undercut
• installation depth: 120 mm without plug-in terminal
• [O]-key (zero key) for triggering of Hold, Tara
• min/max memory
• permanent min/max-value recording
• 30 parameter driven supporting points
• volume measurement (totaliser)
• display flashing at threshold value exceedance / undercut
• mathematical functions like e.g. reciprocal value, square root, squaring or rounding
• [O]-key (zero key) for triggering of Hold, Tara
• setpoint generator
• permanent min/max-value recording
• sliding averaging
• volume measurement (totaliser)
• brightness control
• mathematical functions like e.g. reciprocal value, square root, squaring or rounding
• programming interlock via access code
• setpoint generator
• protection class IP65 at the front
• sliding averaging
• plug-in screw terminal
• brightness control
• option: sensor supply
• programming interlock via access code
• option: galvanic isolated digital input
• protection class IP65 at the front
• option: 1 or 2 analog outputs
• plug-in screw terminal
• option: 2 or 4 relay outputs or 8 PhotoMos outputs
• option: sensor supply
• option: interface RS232 or RS485
• option: galvanic isolated digital input
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices
• option: 1 or 2 analog outputs
without keypad and for a simple adjustment of standard devices
• option: 2 or 4 relay outputs or 8 PhotoMos outputs
• option: interface RS232 or RS485
M3_11GB.pdf update: 10.04.2015
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices
without keypad and for a simple adjustment of standard devices
96x48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAL-311x0x0S and is the answer not in the manual?

Questions and answers

Related Manuals for ACS contsys DAL-311x0x0S

Summary of Contents for ACS contsys DAL-311x0x0S

  • Page 1: Operating Instructions

    Direct current / direct voltage signals: 0/4-20 mA, 0-10 VDC User manual M3 Operating Instructions Direct current / direct voltage signals: 0/4-20 mA, 0-10 VDC DAL-311x0x0S Direct current / direct voltage signals: 0/4-20 mA, 0-10 VDC Technical features: • red display of -19999…99999 digits (optional: green, orange or blue) •...
  • Page 2 Order code power supply Note 100-240V AC 10...40V DC galvanic seperated 100-240V AC with sensor supply 24V DC/50mA and digital input sensor supply 10...40V DC galvanic seperated with sensor supply 24V DC/50mA and digital input only at 0/4...20 mA, other voltages 0...10V DC input function input 0/4...20 mA, 0...10V DC...

  • Page 3: Table Of Contents

    Contents Brief description Assembly Electrical connection Description of function and operation 4.1. Programming software PM-TOOL Setting up the device 5.1. Switching on 5.2. Standard parameterisation (flat operation level) Value assignment for the triggering of the signal input 5.3. Programming interlock „RUN“ Activation/Deactivation of the programming interlock or change into professional or flat operation level 5.4.

  • Page 4: Brief Description

    1. Brief description 1. Brief description The panel meter instrument DAL-311 is a 5-digit device for direct current / direct voltage signals and a visual The panel meter instrument M3-11 is a 5-digit device for direct current / direct voltage signals and a visual threshold value monitoring via the display.

  • Page 5: Assembly

    2. Assembly 2. Assembly Please read the Safety advices on page 35 before installation and keep this user manual for future reference. Gap for physical unit After removing the fixing elements, insert the device. Check the seal to make sure it fits securely. Click the fixing elements back into place and tighten the clamping screws by hand.

  • Page 6: Electrical Connection

    Type DAL-311x0x0S Type M3-1VR5B.0001.W70BD supply 10-40 VDC galv. isolated, 18-30 VAC Type DAL-311x0x0S Type M3-1VR5B.0001.S70BD supply 100-240 VAC, DC ±10% DAL-311x0x0S with digital input in combination DAL-311x0x0S with digital input and external with 24 VDC sensor supply voltage source ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 7 3. Electrical connection Connection examples Below please find some connection examples that show practical applications. For devices with current inputs / voltage inputs, without sensor supply. DAL-311x0x0S in combination with a DAL-311x0x0S in combination with a 2-wire-sensor 4-20 mA 3-wire-sensor 0/4-20 mA...

  • Page 8: Description Of Function And Operation

    4. Description of function and operation 4. Description of function and operation Operation The operation is divided into three different levels. Menu level (delivery status) This level was designed for the standard settings of the device. Only menu items which are sufficent to set the device into operation are displayed.

  • Page 9: Programming Software Pm-Tool

    4. Description of function and operation Function chart: 4.1 Parameterisation software PM-TOOL: Part of the PM-TOOL are the software on CD and an USB-cable with device adapter. The connection happens via a 4-pole micromatch-plug on the back side of the device, to the PC-side the connection happens via an USB plug.

  • Page 10: Setting Up The Device

    5. Setting up the device 5. Setting up the device 5.1. Switching on Once the installation is complete, start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.
  • Page 11 5. Setting up the device Menu level Parameterisation level Setting the decimal point, dot: Default: 0 The decimal point on the display can be moved with [▲] [▼] and confirmed with [P]. The display then switches back to the menu level again. Setting up the display time, SEC: Default: 1.0 then...
  • Page 12 5. Setting up the device Menu level Parameterisation level Hysteresis for limit values, HY-1: Default: 00000 The delayed reaction of the alarm is the difference to the threshold value, which is defined by the hysteresis. Function for threshold value undercut / exceedance, Fu-1: Default: high A limit value undercut is selected with Louu (for LOW = lower limit value), a limit value exceedance with High (for HIGH = higher limit value).

  • Page 13: Programming Interlock „Run

    5. Setting up the device 5.3. Programming interlock „RUN“ Menu level Parameterisation level Activation / deactivation of the programming lock or completion of the standard parameterisation with change into menu group level (complete function range), run: Default: uloc Choose between the deactivated key lock Uloc (works setting) and the activated key lock Loc, or the change into the menu group level ProF with the navigation keys [▲] [▼].
  • Page 14 5. Setting up the device Menu level Parameterisation level Setting the end value of the measuring range, END: Default: 10000 Set the end value from the smallest to the highest digit with [▲] [▼] and confirm each digit with [P]. A minus sign can only be parameterised on the highest value digit. After the last digit, the display switches back to the menu level.
  • Page 15 5. Setting up the device Menu level Parameterisation level Rescaling the measuring input values, OFFA: Default: 0 With this function, you can rescale the input value of e.g. 3.5 mA (works setting) without applying a measuring signal. If sensor calibration has been selected, these parameters are not available.
  • Page 16 5. Setting up the device Menu level Parameterisation level Analog values for setpoints, InP.01 … InP.30: The setpoints are always set according to the selected input signal. The desired analog values can be freely parameterised in ascending order. Device undercut, dI.Und: Default: -i9999 With this function the device undercut (_ _ _ _ _) can be defined on a definite value.

  • Page 17: General Device Parameters „Fct

    5. Setting up the device 5.4.2. General device parameters Menu group level Menu level Menu level Parameterisation level Display time, DISEC: Default: 01.0 then The display is set up with [▲] [▼]. Thereby it switches up to 1 second in increments of 0.1 seconds and up to 10.0 seconds in increments of 1.0.
  • Page 18 5. Setting up the device Menu level Parameterisation level Zero point slowdown, ZErO: Default: 00 At the zero point slowdown, a value range around the zero point can be preset, so the display shows a zero. If e.g. a 10 is set, the display would show a zero in the value range from -10 to +10;...
  • Page 19 5. Setting up the device Menu level Parameterisation level Brightness control, Light: Default: 15 The brightness of the display can be adjusted in 16 levels from 00 = very dark to 15 = very bright via this parameter or alternatively via the navigation keys from the outside. During the start of the device the level that is deposited under this parameter will always be used, even though the brightness has been changed via the navigation keys in the meantime.
  • Page 20 5. Setting up the device Menu level Parameterisation level Special function [O]-key, tASt.4: Default: no … For the operation mode, special functions can be deposited on the [O]-key. This function is activated by pressing the key. With tArA the device is set temporarily on a parameterised value. The device acknowledges the correct taring with oo0oo in the display.

  • Page 21: Safety Parameters „Cod

    5. Setting up the device 5.4.3. Safety parameters Menu group level Menu level Menu level Parameterisation level User code U.Code: Default: 0000 Via this code reduced sets of parameters can be set free. A change of the U.CodE can be done via the correct input of the A.CodE (master code).

  • Page 22: Serial Parameters „Ser

    5. Setting up the device 5.4.4. Serial parameters Menu group level Menu level Menu level Parameterisation level Device address, ADDR: Default: 001 The device address is adjusted from the smallest to the largest digit with the navigation keys [▲] [▼] and confirmed digit per digit with [P]. A device address up to max. 250 is available. Interface data: Baudrate 9600 bit/s, 8 databyte, 1 stopbit, no parity (8n1).

  • Page 23: Analog Output Parameters „Out" And „Ou2

    5. Setting up the device 5.4.5. Analog output parameters for analog output 1 Menu group level Menu level Menu level Parameterisation level Selection reference of analog output, OutPt: Default: actua The analog output signal can refer to different functions, in detail these are the current measurand, the min-value, the max-value, the totaliser function/sum function, the constant value or the difference between current measurand and constant value.
  • Page 24 5. Setting up the device Menu level Parameterisation level Overflow behaviour, O.FLoU: Default: edge To recognise and evaluate faulty signals, e.g. by a controller, the overflow behaviour of the analog output can be defined. As overflow can be seen either EdGE, that means the analog output runs on the set limits e.g.
  • Page 25 5. Setting up the device Menu level Parameterisation level Selection analog output, Ou2.rA: Default: 4-20 3 output signals are available 0-10 VDC, 0-20 mA and 4-20 mA. Select the desired signal with this function. Setting the final value of the analog output, Ou2.En: Default: 10000 The final value is adjusted from the smallest to the highest digit with [▲] [▼] and confirmed digit per digit with [P].

  • Page 26: Relay Functions „Rel

    5. Setting up the device 5.4.6. Relay functions Menu group level Menu level Menu level Parameterisation level Alarm relay 1, rEL-1: The same applies for relays 2-4 Default: al-1 …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms Al-1/4 or deactivated alarms Aln1/4.
  • Page 27 5. Setting up the device Menu level Parameterisation level Alarms for relay 1, CoM-1: Default: a.i …. The allocation of the alarms to relay 1 happens via this parameter, one alarm or a group of alarms can be chosen. With [P] the selection is confirmed and the device changes into menu level.

  • Page 28: Alarm Parameters „Al1

    5. Setting up the device Menu level Parameterisation level Alarms for relay 5, CoM-5: Default: a.5 …. The allocation of the alarms to relay 5 happens via this parameter, one alarm or a group of alarms can be chosen. With [P] the selection is confirmed and the device changes into menu level.
  • Page 29 5. Setting up the device Menu level Parameterisation level Threshold values / limit values, LI-1: Default: 2000 The limit value defines the threshold, that activates/deactivates an alarm. Hysteresis for threshold values, HY-1: Default: 00000 The delayed reaction of the alarm is the difference to the threshold value, which is defined by the hysteresis.

  • Page 30: Totaliser (Volume Metering) „Tot

    5. Setting up the device 5.4.8. Totaliser (Volume metering) Menu group level Menu level Menu level Parameterisation level Totaliser state, total: Default: off The totaliser makes measurements on a time base of e.g. l/h possible, at this the scaled input signal is integrated by a time and steadily (select Stead) or temporarily (select temp) saved.

  • Page 31: Reset To Factory Settings (Default Values)

    6. Reset to factory settings Menu level Parameterisation level Totaliser reset, tot.re: Default: 000 The reset value is adjusted from the smallest to the highest digit with the navigation keys [▲] [▼] and digit per digit confirmed with [P]. After the last digit, the display switches back to the menu level.

  • Page 32: Alarms / Relays

    7. Alarms / Relays 7. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1-S4; furthermore alarms can be controlled by events like e.g.

  • Page 33: Interfaces

    8. Interfaces RS232 and RS485 8. Interfaces RS232 and RS485 The interface RS485 is connected via a screened data line with twisted wires (Twisted-Pair). On each end of the bus segment a termination of the bus lines needs to be connected. This is neccessary to ensure a secure data transfer to the bus.

  • Page 34: Sensor Aligment

    9. Sensor alignment offset / final value 9. Sensor alignment offset / final value The device is equipped with a semi-automatic sensor calibration (SENSu / SENSa). A switching output operates the trimming resistor, which exists in some sensors. An adjustment of offset and final value takes place, after which the sensor can be used directly.

  • Page 35: Technical Data

    10. Technical data 10. Technical data Housing Dimensions 96x48x120 mm (BxHxD) 96x48x139 mm (BxHxD) incl. plug-in terminal Panel cut-out 92.0 +0,8 x 45.0 +0,6 Wall thickness to 15 mm Fixing screw elements Material PC Polycarbonate, black, UL94V-0 Sealing material EPDM, 65 Shore, black Protection class standard IP65 (Front), IP00 (Back side) Weight...
  • Page 36 10. Technical data Switching outputs Relay with change-over contacts 250 VAC / 5 AAC; 30 VDC / 5 ADC Switching cycles 30 x 10 at 5 AAC, 5 ADC ohm resistive load 10 x 10 mechanically Diversity according to DIN EN50178 / Characteristics according to DIN EN60255 PhotoMos outputs 30 VDC/AC, 0,4 A...

  • Page 37: Safety Advices

    11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep it for future reference.

  • Page 38: Error Elimination

    12. Error elimination 12. Error elimination Error description Measures The unit permanently indicates • The input has a very high measurement, check overflow. the measuring circuit. • With a selected input with a low voltage signal, it is only connected on one side or the input is open. •...
  • Page 39 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
  • Page 40      Füllstand Pegel Druck Temperatur Durchfluss Regis- Sensorik Visua- Mess- trierung lisierung umformer Wir erwarten Ihren Anruf. ACS-CONTROL-SYSTEM GmbH Lauterbachstr. 57 D- 84307 Eggenfelden Tel: +49 (0) 8721-9668-0 Fax: +49 (0) 8721-9668-30 ACS-CONTROL-SYSTEM info@acs-controlsystem.de know how mit System www.acs-controlsystem.de Ihr Partner für Messtechnik und Automation...
