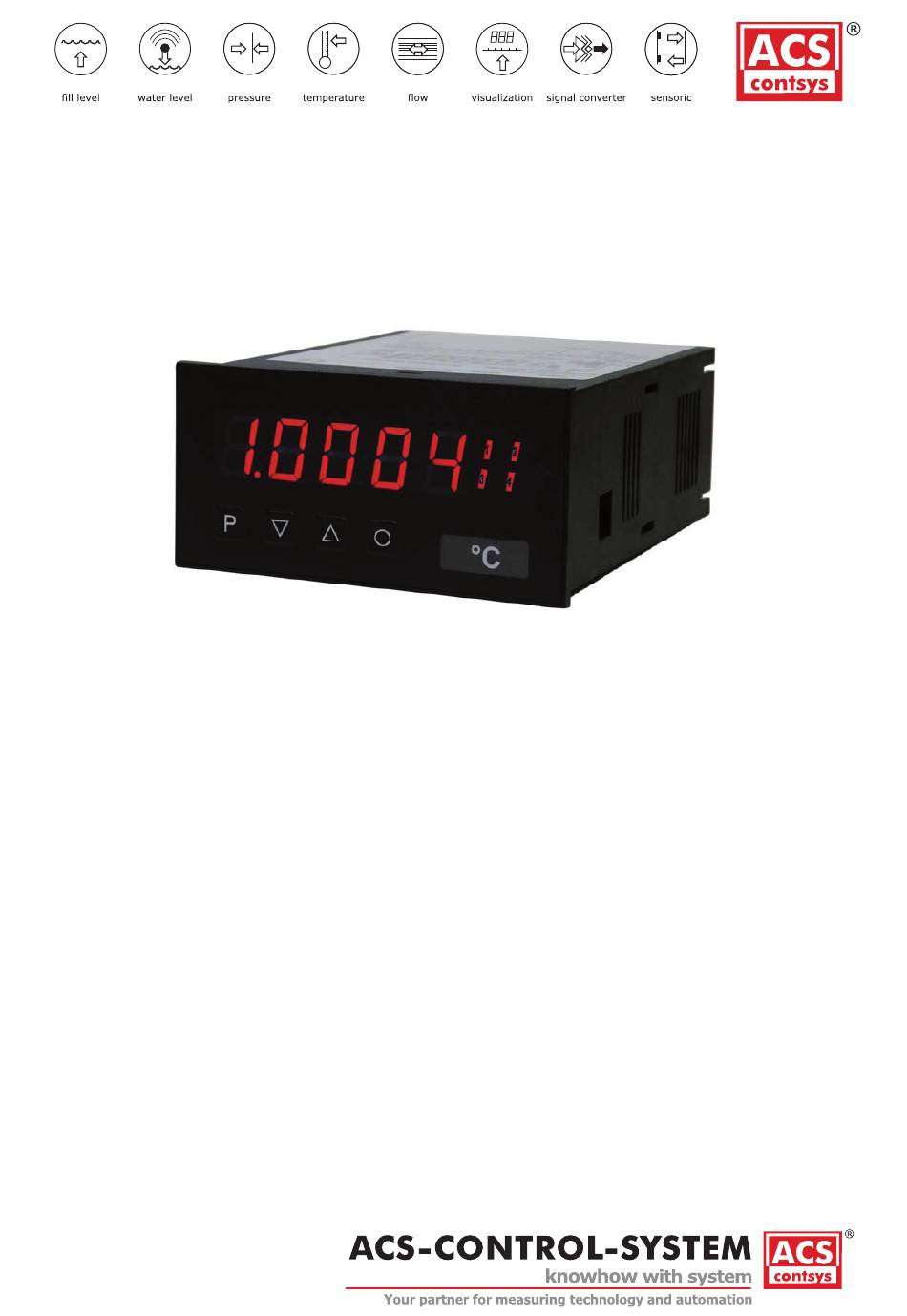

User manual M3

Operating Instructions

Alternating voltage / Alternating current signal rms-value (TRMS)

0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC

DAL-311x5x0S

Alternating voltage / Alternating current signal rms-value (TRMS)

0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC

Technical features:

• red display of -19999...99999 digits (optional: green, orange, blue)

• installation depth: 120 mm without plug-in terminal

• min/max-memory

• 30 adjustable setpoints

• display flashing at threshold value exceedance / undercut

• digital input for triggering of Hold, Tara

• permanent min/max value recording

• volume metering (totaliser)

• mathematical functions like reciprocal value, square roots, squaring or rounding

• setpoint generator

• sliding averaging

• brightness control

• programming interlock via access code

• protection class IP65 at the front

• pluggable screw terminal

• optional galvanic isolated digital input

• optional 1 or 2 analog outputs or 8 PhotoMos-outputs

• optional 2 or 4 relay outputs

• optional interface RS232 or RS485

• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices without keypad

and for a simple adjustment of standard devices

M3_14HGB.pdf update: 16.04.2015

96x48

Table of Contents

Need help?

Do you have a question about the DAL-311 5 0S Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ACS contsys DAL-311 5 0S Series

Page 1 User manual M3 User manual M3 Operating Instructions Alternating voltage / Alternating current signal rms-value (TRMS) Alternating voltage / Alternating current signal rms-value (TRMS) 0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC 0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC DAL-311x5x0S Alternating voltage / Alternating current signal rms-value (TRMS) 0-300 VAC, 0-600 VAC, 0-1 AAC, 0-5 AAC...
Page 2 Order code power supply Note 100-240V AC 10...40V DC galvanic seperated 100-240V AC with sensor supply 24V DC/50mA and digital input sensor supply 10...40V DC galvanic seperated with sensor supply 24V DC/50mA and digital input only at 0/4...20 mA, other voltages 0...10V DC input function input 300/600V AC, 1A, 5A AC...
Page 3: Table Of Contents
Contents Brief description Assembly Electrical connection Description of function and operation 4.1. Programming software PM-TOOL Setting up the device 5.1. Switching on 5.2. Standard parameterisation (flat operation level) Value assignment for the triggering of the signal input 5.3. Programming interlock „RUN“ Activation/Deactivation of the programming interlock or change into professional or flat operation level 5.4.
Page 4: Brief Description
1. Brief description 1. Brief description The panel meter instrument DAL-311 is a 5-digit device for AC current / AC voltage signals (TRMS) and a visual The panel meter instrument M3-14H is a 5-digit device for AC current / AC voltage signals (TRMS) and a threshold value monitoring via the display.
Page 5: Assembly
2. Assembly 2. Assembly Please read the Safety advices on page 35 before installation and keep this user manual for future reference. Gap for physical unit After removing the fixing elements, insert the device. Check the seal to make sure it fits securely. Click the fixing elements back into place and tighten the clamping screws by hand.
Page 6: Electrical Connection
3. Electrical connection 3. Electrical connection Type DAL-311x5x0S Type M3-1VR5B.0H04.470BD with a supply of 100-240 VAC, DC ±10% DAL-311x5x0S with digital input and external voltage source ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
Page 7: Description Of Function And Operation
4. Description of function and operation 4. Description of function and operation Operation The operation is divided into three different levels. Menu level (delivery status) This level was designed for the standard settings of the device. Only menu items which are sufficent to set the device into operation are displayed.
Page 8: Programming Software Pm-Tool
4. Description of function and operation Function chart: 4.1 Parameterisation software PM-TOOL: Part of the PM-TOOL are the software on CD and an USB-cable with device adapter. The connection happens via a 4-pole micromatch-plug on the back side of the device, to the PC-side the connection happens via an USB plug.
Page 9: Setting Up The Device
5. Setting up the device 5. Setting up the device 5.1. Switching on Once the installation is complete, start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.
Page 10 5. Setting up the device Menu level Parameterisation level Setting the decimal point, dot: Default: 0 The decimal point on the display can be moved with [▲] [▼] and confirmed with [P]. The display then switches back to the menu level again. Setting up the display time, SEC: Default: 1.0 then...
Page 11 5. Setting up the device Menu level Parameterisation level Hysteresis for limit values, HY-1: Default: 00000 The delayed reaction of the alarm is the difference to the threshold value, which is defined by the hysteresis. Function for threshold value undercut /exceedance, Fu-1: Default: high A limit value undercut is selected with Louu (for LOW = lower limit value), a limit value exceedance with High (for HIGH = higher limit value).
Page 12: Programming Interlock „Run
5. Setting up the device 5.3. Programming interlock „RUN“ Menu level Parameterisation level Activation / deactivation of the programming lock or completion of the standard parameterisation with change into menu group level (complete function range), run: Default: uloc With the navigation keys [▲] [▼], choose between the deactivated key lock Uloc (works setting) and the activated key lock Loc, or the change into the menu group level ProF.
Page 13: Extended Parametersation (Professional Operation Level)
5. Setting up the device 5.4. Extended parameterisation (Professional operation level) 5.4.1. Signal input parameters Menu group level Menu level Menu level Parameterisation level Selection of the input signal, tYPE: Default: s.60ou Available as measuring input options are 0-600/0-300 VAC or 0-5/0-1 AAC signals as works calibration (without application of the sensor signal) and S.600v, S.300v, se.5a and se.1a as sensor calibration (with the sensor applied).
Page 14 5. Setting up the device Menu level Parameterisation level Setting the decimal point, dot: Default: 0 The decimal point on the display can be moved with [▲] [▼] and confirmed with [P]. The display then switches back to the menu level again. Setting up the display time, SEC: Default: 1.0 then...
Page 15 5. Setting up the device Menu level Parameterisation level Setting up the physical unit, UnIt: Default: no One can choose between the above shown physical units. It will be displayed on the 5th digit of the display. Number of additional setpoints, SPCt: Default: 00 30 additional setpoints can be defined to the initial value and final value, so linear sensor values are not linearised.
Page 16: General Device Parameters „Fct
5. Setting up the device Menu level Parameterisation level Display overflow, dI.OUE: Default: 99999 _ _ _ _ _ With this function the display overflow ( ) can be defined on a definite value. Input variable of process value, SIG.in: Default: a.meas With this parameter, the device can be controlled via the analog input signals a.meas = 10 VAC, 50 VAC respectively 1.5 AAC or via the digital signals of the interface M.bus = RS232/RS485...
Page 17 5. Setting up the device Menu level Parameterisation level Rounding of display values, round: Default: 00001 This function is for instable display values, where the display value is changed in increments of 1, 5, 10 or 50. This does not affect the resolution of the optional outputs. With [P] the selection is confirmed and the device changes into menu level.
Page 18 5. Setting up the device 5. Setting up the device Menu level Parameterisation level Menu level Parameterisation level Minimum constant value, con.mi: Default: -i9999 The minimum constant value is adjusted from the smallest to the highest digit with the navigation keys [▲] [▼] and confirmed digit per digit with [P]. A minus sign can only be adjusted on the highest digit.
Page 19 5. Setting up the device Menu level Parameterisation level Display flashing, FLASH: Default: no A display flashing can be added as additional alarm function either to single or to a combination of off-limit condition. With no, no flashing is allocated. Assignment (deposit) of key functions, tASt: Default: no For the operation mode, special functions can be deposited on the navigation keys [▲] [▼], in...
Page 20 5. Setting up the device Menu level Parameterisation level Special function [O]-key, tASt.4: Default: no … For the operation mode, special functions can be deposited on the [O]-Taste. This function is activated by pressing the key. With tArA the device is set temporarily on a parameterised value. The device acknowledges the correct taring with oo0oo in the display.
Page 21: Safety Parameters „Cod
5. Setting up the device 5.4.3. Safety parameters Menu group level Menu level Menu level Parameterisation level User code U.Code: Default: 0000 Via this code reduced sets of parameters can be set free. A change of the U.CodE can be done via the correct input of the A.CodE (master code).
Page 22: Serial Parameters „Ser
5. Setting up the device Menu level Parameterisation level Back to menu group level, rEt: With [P] the selection is confirmed and the device changes into menu group level „–COD–“. 5.4.4. Serial parameters Menu group level Menu level Menu level Parameterisation level Device address, ADDR: Default: 001...
Page 23: Analog Parameters „Out" And „Ou2
5. Setting up the device 5.4.5. Analog output parameters for analog output 1 Menu group level Menu level Menu level Parameterisation level Selection reference of analog output, OutPt: Default: actua The analog output signal can refer to different functions, in detail these are the current measurand, the min-value, the max-value, the totaliser function/sum function, the constant value or the difference between current measurand and constant value.
Page 24 5. Setting up the device Menu level Parameterisation level Overflow behaviour, O.FLoU: Default: edge To recognise and evaluate faulty signals, e.g. by a controller, the overflow behaviour of the analog output can be defined. As overflow can be seen either EdGE, that means the analog output runs on the set limits e.g.
Page 25 5. Setting up the device Menu level Parameterisation level Selection analog output, Ou2.rA: Default: 4-20 3 output signals are available 0-10 VDC, 0-20 mA and 4-20 mA. Select the desired signal with this function. Setting the final value of the analog output, Ou2.En: Default: 10000 The final value is adjusted from the smallest to the highest digit with [▲] [▼] and confirmed digit per digit with [P].
Page 26: Relay Functions „Rel
5. Setting up the device 5.4.6. Relay functions Menu group level Menu level Menu level Parameterisation level Alarm relay 1, rEL-1: The same applies for relays 2-4 Default: al-1 …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms AL1/4 or deactivated alarms ALN1/4.
Page 27 5. Setting up the device Menu level Parameterisation level Alarms for relay 1, CoM-1: Default: a.i …. The allocation of the alarms to relay 1 happens via this parameter, one alarm or a group of alarms can be chosen. With [P] the selection is confirmed and the device changes into menu level.
Page 28: Alarm Parameters „Al1
5. Setting up the device Menu level Parameterisation level Alarms for relay 5, CoM-5: Default: a.5 …. The allocation of the alarms to relay 5 happens via this parameter, one alarm or a group of alarms can be chosen. With [P] the selection is confirmed and the device changes into menu level.
Page 29 5. Setting up the device Menu level Parameterisation level Threshold values / limit values, LI-1: Default: 2000 The limit value defines the threshold, that activates/deactivates an alarm. Hysteresis for threshold values, HY-1: Default: 00000 The delayed reaction of the alarm is the difference to the threshold value, which is defined by the hysteresis.
Page 30: Totaliser (Volume Metering) „Tot
5. Setting up the device 5.4.8. Totaliser (Volume metering) Menu group level Menu level Menu level Parameterisation level State of totaliser, total: Default: off The totaliser realizes measurements on a time base of e.g. l/h, at this the scaled input signal is integrated by a time and steadily (select Stead) or temporarily (select temp) safed.
Page 31: Reset To Factory Settings
6. Reset to default values Menu level Parameterisation level Totaliser reset, tot.re: Default: ooooo The reset value is adjusted from the smallest to the highest digit with the navigation keys [▲] [▼] and digit per digit confirmed with [P]. After the last digit, the display switches back to the menu level.
Page 32: Alarms / Relays
7. Alarms / Relays 7. Alarms / Relays This device has 8 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1-S4; furthermore alarms can be controlled by events like e.g.
Page 33: Interfaces
8. Interfaces 8. Interfaces The interface RS485 is connected via a screened data line with twisted wires (Twisted-Pair). On each end of the bus segment a termination of the bus lines needs to be connected. This is neccessary to ensure a secure data transfer to the bus.
Page 34: Sensor Aligment
9. Sensor alignment offset / final value 9. Sensor alignment offset / final value The device is equipped with a semi-automatic sensor calibration (s.600, s.300, se.ia, se.sa). A switching output operates the trimming resistor, which exists in some sensors. An adjustment of offset and final value takes place, after which the sensor can be used directly.
Page 35: Technical Data
10. Technical data 10. Technical data Housing Dimensions 96x48x120 mm (BxHxD) 96x48x139 mm (BxHxD) incl. plug-in terminal Panel cut-out 92.0 +0.8 x 45.0 +0.6 Wall thickness up to 10 mm Fixing screw elements Material PC polycarbonate, black, UL94V-0 Sealing material EPDM, 65 Shore, black Protection class standard IP65 (front), IP00 (back side)
Page 36 10. Technical data Output Analog output 0/4-20 mA / burden ≤500 Ohm, 0-10 VDC / burden ≥10 kOhm, 16 bit Switching outputs Relay with change-over contact 250 VAC / 5 AAC; 30 VDC / 5 ADC Switching cycles 30 x 10 with 5 AAC, 5 ADC ohm resistive burden 10 x 10 mechanically...
Page 37: Safety Advices
11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep it for future reference.
Page 38: Error Elimination
12. Error elimination 12. Error elimination Error description Measures The unit permanently indicates • The input has a very high measurement, check overflow. the measuring circuit. • With a selected input with a low voltage signal, it is only connected on one side or the input is open.
Page 39 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
Page 40      Füllstand Pegel Druck Temperatur Durchfluss Regis- Sensorik Visua- Mess- trierung lisierung umformer Wir erwarten Ihren Anruf. ACS-CONTROL-SYSTEM GmbH Lauterbachstr. 57 D- 84307 Eggenfelden Tel: +49 (0) 8721-9668-0 Fax: +49 (0) 8721-9668-30 ACS-CONTROL-SYSTEM info@acs-controlsystem.de know how mit System www.acs-controlsystem.de Ihr Partner für Messtechnik und Automation...
