User manual M3
User manual M3
Direct voltage shunt: 0-60/150/300/1000 mV
Operating Instructions
Direct voltage shunt: 0-60/150/300/1000 mV
DAL-311x3x0S
Direct voltage shunt: 0-60/150/300/1000 mV

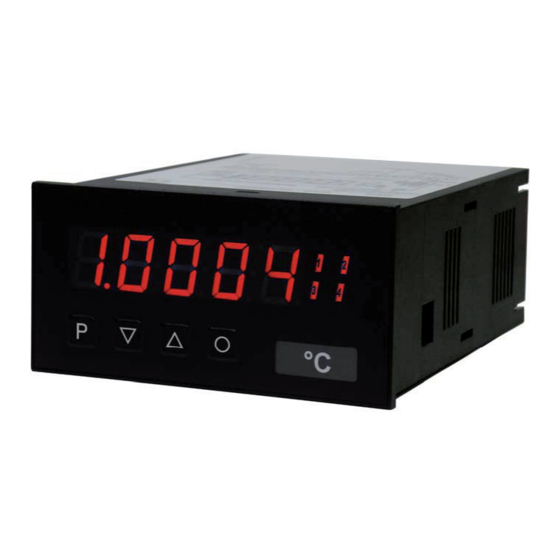

Technical features:
Technical features:
• red display of -19999...99999 digits (optional: green, orange or blue display)
• minimal installation depth: 120 mm without plug-in terminal
• red display of -19999...99999 digits (optional: green, orange or blue display)
• min/max memory
• minimal installation depth: 120 mm without plug-in terminal
• 30 parameter driven setpoints
• min/max memory
• optical threshold value indication at threshold value exceedance / undercut
• 30 parameter driven setpoints
• [O]-key for triggering of Hold, Tara
• optical threshold value indication at threshold value exceedance / undercut
• permanent min/max-value recording
• [O]-key for triggering of Hold, Tara
• volume measurement (totaliser)
• permanent min/max-value recording
• arithmetic function
• volume measurement (totaliser)
• zero point slowdown
• arithmetic function
• programming interlock via access code
• zero point slowdown
• protection class IP65 at the front
• programming interlock via access code
• plug-in terminal
• protection class IP65 at the front
• option: digital input
• plug-in terminal
• option: 2 or 4 analog outputs
• option: digital input
• option: 2 or 4 relay outputs or 8 PhotoMos outputs
• option: 2 or 4 analog outputs
• option: interface RS232 or RS485
• option: 2 or 4 relay outputs or 8 PhotoMos outputs
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices
• option: interface RS232 or RS485
without keypad and for a simple adjustment of standard devices
• accessories: PC-based configuration kit PM-TOOL incl. CD and USB-adapter for devices
without keypad and for a simple adjustment of standard devices
M3_12GB.pdf update: 14.04.2015
M3_12GB.pdf update: 14.04.2015
96x48
96x48

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAL-311x3x0S and is the answer not in the manual?

Questions and answers

Related Manuals for ACS contsys DAL-311x3x0S

Summary of Contents for ACS contsys DAL-311x3x0S

  • Page 1 User manual M3 User manual M3 Direct voltage shunt: 0-60/150/300/1000 mV Operating Instructions Direct voltage shunt: 0-60/150/300/1000 mV DAL-311x3x0S Direct voltage shunt: 0-60/150/300/1000 mV Technical features: Technical features: • red display of -19999…99999 digits (optional: green, orange or blue display) •...
  • Page 2 Order code power supply Note 100-240V AC 10...40V DC galvanic seperated 100-240V AC with sensor supply 24V DC/50mA and digital input sensor supply 10...40V DC galvanic seperated with sensor supply 24V DC/50mA and digital input only at 0/4...20 mA, other voltages 0...10V DC input function input 60 / 150 / 300 / 1000 mV...

  • Page 3: Table Of Contents

    Contents Short description Assembly Electrical connection Description of function and operation 4.1. Programming software PM-TOOL Setting up the device 5.1. Switching on 5.2. Standard parameterisation (flat operation level) Value assignment for the control of the signal input 5.3. Programming interlock „RUN“ Activation/Deactivation of the programming interlock or change into professional operation level / back into flat operation level 5.4.

  • Page 4: Short Description

    1. Brief description 1. Brief description 2. Assembly 2. Assembly 1. Brief description 1. Brief description The panel meter instrument DAL-311 is a 5-digit device for direct current signals and a visual The panel meter instrument M3-12 is a 5-digit device for direct voltage signals and a visual threshold value The panel meter instrument M3-12 is a 5-digit device for direct voltage signals and a visual threshold value threshold value monitoring via the display.

  • Page 5: Electrical Connection

    Type M3-1VR5B.0002.S70BD supply of 100-240 VAC, DC ± 10% Type DAL-311x3x0S Type M3-1VR5B.0002.W70BD supply of 10-40 VDC galv. Isolated, 18-30 VAC DAL-311x3x0S with digital input and external voltage source ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...

  • Page 6: Description Of Function And Operation

    4. Function and operation description 4. Function and operation description Operation The operation is divided into three different levels. Menu level (delivery status) This level was designed for the standard settings of the device. Only menu items which are sufficent to set the device into operation are displayed.

  • Page 7: Programming Software Pm-Tool

    4. Function and operation description Function chart: 4.1 Parameterisation software PM-TOOL: Part of the PM-TOOL are the software on CD and an USB-cable with device adapter. The connection happens via a 4-pole micromatch-plug on the back side of the device, to the PC-side the connection happens via an USB plug.

  • Page 8: Setting Up The Device

    5. Setting up the device 5. Setting up the device 5.1. Switching on Once the installation is complete, start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test (8 8 8 8 8) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.
  • Page 9 5. Setting up the device Menu level Parameterisation level Setting the decimal point, dot: Default: 0 The decimal point on the display can be moved with [▲] [▼] and confirmed with [P]. The display then switches back to the menu level again. Setting up the display time, SEC: Default: 1.0 then...
  • Page 10 5. Setting up the device Menu level Parameterisation level Hysteresis for limit values, HY-1: Default: 00000 The delayed reaction of the alarm is the difference to the threshold value, which is defined by the hysteresis. Function for threshold value undercut / exceedance, Fu-1: Default: high A limit value undercut is selected with Louu (for LOW = lower limit value), a limit value exceedance with High (for HIGH = higher limit value).

  • Page 11: Programming Interlock „Run

    5. Setting up the device 5.3 Programming interlock „RUN“ Menu level Parameterisation level Activation / deactivation of the programming lock or completion of the standard parameterisation with change into menu group level (complete function range), run: Default: uloc With the navigation keys [▲] [▼], choose between the deactivated key lock Uloc (works setting) and the activated key lock Loc, or the change into the menu group level ProF.
  • Page 12 5. Setting up the device Menu level Parameterisation level Setting the end value of the measuring range, END: Default: 10000 Set the end value from the smallest to the highest digit with [▲] [▼] and confirm each digit with [P]. A minus sign can only be parameterized on the highest value digit. After the last digit, the display switches back to the menu level.
  • Page 13 5. Setting up the device Menu level Parameterisation level Rescaling the measuring input values, OFFA: Default: 0 With this function, you can rescale the input value of e.g. 0.5 mV (works setting) without applying a measuring signal. If sensor calibration has been selected, these parameters are not available.
  • Page 14 5. Setting up the device Menu level Parameterisation level Analog values for setpoints, InP.01 … InP.30: The setpoints are always set according to the selected input signal. The desired analog values can be freely parameterised in ascending order. Device undercut, dI.Und: Default: -i9999 With this function the device undercut (_ _ _ _ _) can be defined on a definite value.

  • Page 15: General Device Parameters „Fct

    5. Setting up the device 5.4.2. General device parameters Menu group level Menu level Menu level Parameterisation level Display time, DISEC: Default: 01.0 then The display is set up with [▲] [▼]. Thereby it switches up to 1 second in increments of 0.1 seconds and up to 10.0 seconds in increments of 1.0.
  • Page 16 5. Setting up the device Menu level Parameterisation level Zero point slowdown, ZErO: Default: 00 At the zero point slowdown, a value range around the zero point can be preset, so the display shows a zero. If e.g. a 10 is set, the display would show a zero in the value range from -10 to +10;...
  • Page 17 5. Setting up the device Menu level Parameterisation level Brightness control, Light: Default: 15 The brightness of the display can be adjusted in 16 levels from 00 = very dark to 15 = very bright via this parameter or alternatively via the navigation keys from the outside. During the start of the device the level that is deposited under this parameter will always be used, even though the brightness has been changed via the navigation keys in the meantime.
  • Page 18 5. Setting up the device Menu level Parameterisation level Special function [O]-key, tASt.4: Default: no … For the operation mode, special functions can be deposited on the [O]-key. This function is activated by pressing the key. With tArA the device is set temporarily on a parameterised value. The device acknowledges the correct taring with oo0oo in the display.

  • Page 19: Safety Parameters „Cod

    5. Setting up the device 5.4.3. Safety parameters Menu group level Menu level Menu level Parameterisation level User code U.Code: Default: 0000 Via this code reduced sets of parameters can be set free. A change of the U.CodE can be done via the correct input of the A.CodE (master code).

  • Page 20: Serial Parameters „Ser

    5. Setting up the device 5.4.4. Serial parameters Menu group level Menu level Menu level Parameterisation level Device address, ADDR: Default: 001 The device address is adjusted from the smallest to the largest digit with the navigation keys [▲] [▼] and confirmed digit per digit with [P]. A device address up to max. 250 is available. Interface data: Baudrate 9600 bit/s, 8 databyte, 1 stopbit, no parity (8n1).

  • Page 21: Analog Output Parameters „Out" And „Ou2

    5. Setting up the device 5.4.5. Analog output parameters for analog output 1 Menu group level Menu level Menu level Parameterisation level Selection reference of analog output, OutPt: Default: actua The analog output signal can refer to different functions, in detail these are the current measurand, the min-value, the max-value or the totaliser/sum function.
  • Page 22 5. Setting up the device Menu level Parameterisation level Overflow behaviour, O.FLoU: Default: edge To recognise and evaluate faulty signals, e.g. by a controller, the overflow behaviour of the analog output can be defined. As overflow can be seen either EdGE, that means the analog output runs on the set limits e.g.
  • Page 23 5. Setting up the device Menu level Parameterisation level Selection analog output, Ou2.rA: Default: 4-20 3 output signals are available 0-10 VDC, 0-20 mA and 4-20 mA. Select the desired signal with this function. Setting the final value of the analog output, Ou2.En: Default: 10000 The final value is adjusted from the smallest to the highest digit with [▲] [▼] and confirmed digit per digit with [P].

  • Page 24: Relay Functions „Rel

    5. Setting up the device 5.4.6. Relay functions Menu group level Menu level Menu level Parameterisation level Alarm relay 1, rEL-1: The same applies for relays 2-4 Default: al-1 …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms Al-1/4 or deactivated alarms Aln1/4.
  • Page 25 5. Setting up the device Menu level Parameterisation level Alarm relay 5, reL-5: The same applies for relays 6-8 Default: al-5 …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms AL6/8 or deactivated alarms ALN6/8.

  • Page 26: Alarm Parameters „Al1

    5. Setting up the device 5.4.7. Alarm parameters Menu group level Menu level Menu level Parameterisation level Dependency alarm 1, ALrM.1: Default: actua The dependency of alarm 1 can be related to special functions, in detail these are the current measuring value, the min-value, the max-value or the totaliser/sum-value.

  • Page 27: Totaliser (Volume Metering) „Tot

    5. Setting up the device Menu level Parameterisation level Switching-on delay, ton-1: Default: 000 For limit value 1 one can preset a delayed switching-on of 0-100 seconds. Switching-off delay, toF-1: Default: 000 For limit value 1 one can preset a delayed switching-off of 0-100 seconds. Back to menu group level, rEt: With [P] the selection is confirmed and the device changes into menu group level „–Al1–“.
  • Page 28 5. Setting up the device Menu level Parameterisation level Time base, t.base: Default: sec Under this parameter the time base of the measurement can be preset in seconds, minutes or hours. Totaliser factor, Facto: Default: 10 Π … At this the factor (10 …10 ) respectively the divisor for the internal calculation of the measuring value is assigned.

  • Page 29: Reset To Factory Settings

    6. Reset to factory settings Programming interlock, run: Menu group level Description see page 9, menu level run 6. Reset to factory settings To return the unit to a defined basic state, a reset can be carried out to the default values. The following procedure should be used: •...

  • Page 30: Alarms / Relay

    7. Alarms / Relays 7. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1-S2; furthermore alarms can be controlled by events like e.g.

  • Page 31: Interfaces

    8. Interfaces RS232 and RS485 8. Interfaces RS232 and RS485 The interface RS485 is connected via a screened data line with twisted wires (Twisted-Pair). On each end of the bus segment a termination of the bus lines needs to be connected. This is neccessary to ensure a secure data transfer to the bus.

  • Page 32: Sensor Alignment

    9. Sensor alignment offset / final value 9. Sensor alignment offset / final value The device is equipped with a semi-automatic sensor calibration (Su.xxx). A switching output operates the trimming resistor, which exists in some sensors. An adjustment of offset and final value takes place, after which the sensor can be used directly.

  • Page 33: Technical Data

    10. Technical data 10. Technical data Housing Dimensions 96x48x120 mm (BxHxD) 96x48x139 mm (BxHxD) incl. plug-in terminal Panel cut-out 92.0 +0.8 x 45.0 +0.6 Wall thickness to 15 mm Fixing screw elements Material PC Polycarbonate, black, UL94V-0 Sealing material EPDM, 65 Shore, black Protection class standard IP65 (Front), IP00 (Back side) Weight...
  • Page 34 10. Technical data Output Analog output 0/4-20 mA / burden ≤ 500 Ω or 0-10 VDC / ≥ 10 kΩ, 16 bit Switching outputs Relay with change-over contacts 250 VAC / 5 AAC; 30 VDC / 5 ADC Switching cycles 30 x 10 at 5 AAC, 5 ADC ohm resistive load 10 x 10...

  • Page 35: Safety Advices

    11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices 11. Safety advices Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep Please read the following safety advices and the assembly chapter 2 before installation and keep it for future reference.

  • Page 36: Error Elimination

    12. Error elimination 12. Error elimination Error description Measures The unit permanently indicates • The input has a very high measurement, check overflow. the measuring circuit. • With a selected input with a low voltage signal, it is only connected on one side or the input is open.
  • Page 37 ACS-CONTROL-SYSTEM GmbH l Lauterbachstr. 57 l D-84307 Eggenfelden l www.acs-controlsystem.de l info@acs-controlsystem.de...
