Note:
This COM port can be determined from the Device Manager, as described in the the
USB-to-UART Driver Installation
2. Configure this port to reflect the following settings:
–
–
–
–
–
3. Click the
be able to see the Demo program menu shown in Figure 31.
At this point, you have successfully run the Z51F3221 demo project, but you are welcome
to continue evaluating the demo in HyperTerminal. For additional information about how
UM025801-1112
9600 bps
8 data bits
No parity
1 stop bit
No flow control
button to connect to the Z51F3221 Board. Upon connection, you should
Call

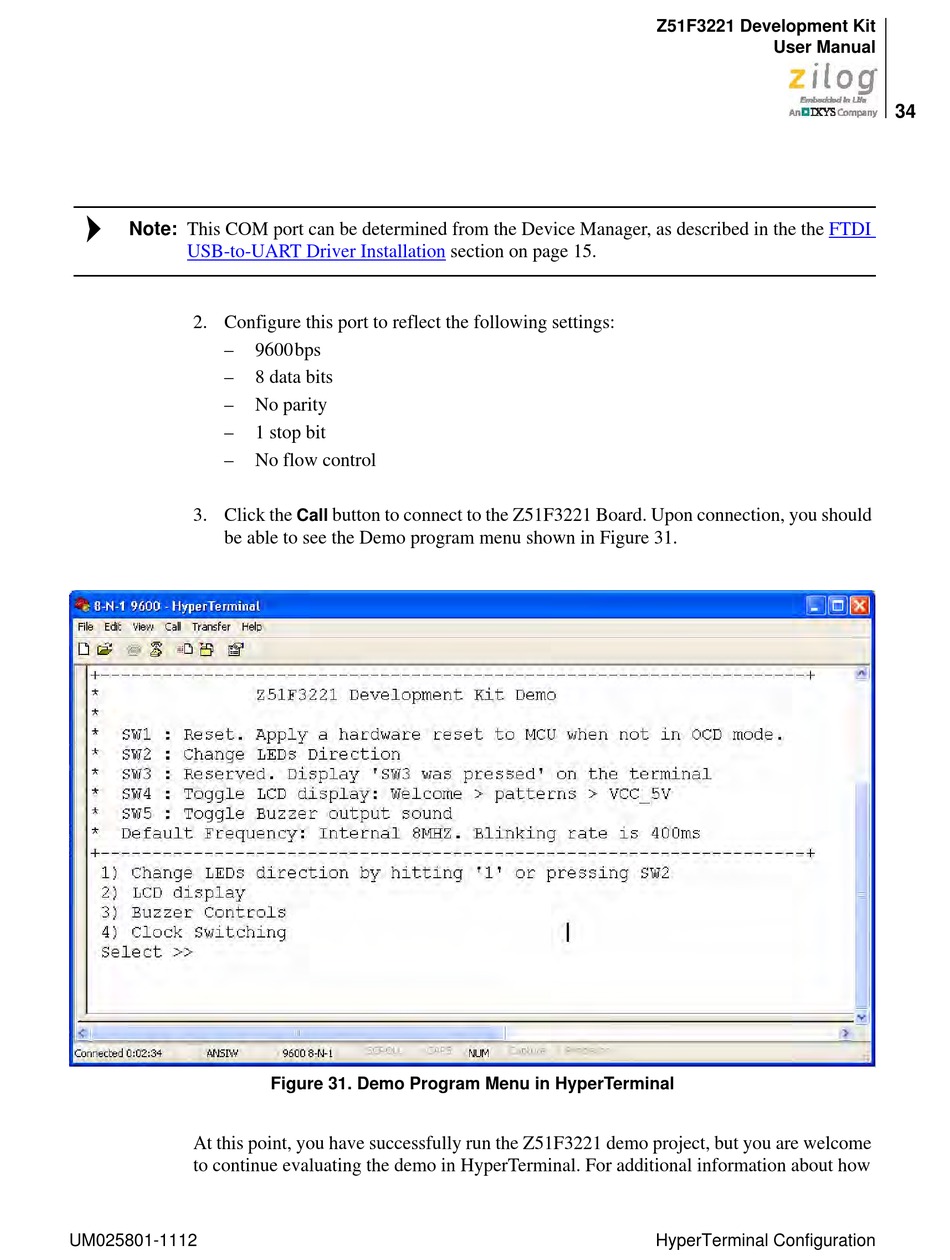

Figure 31. Demo Program Menu in HyperTerminal
section on page 15.
Z51F3221 Development Kit
User Manual
FTDI
HyperTerminal Configuration
34
