Z51F3221 Development Kit

User Manual

Note:

Please disregard the instructions stated in the Configuration Is Changed dialog, and pro-

ceed to

Step

9. Click

to open the On-Chip Debugger's main window. A typical OCD display is

shown in Figure 20; Figure 21 shows an OCD window with child windows open.

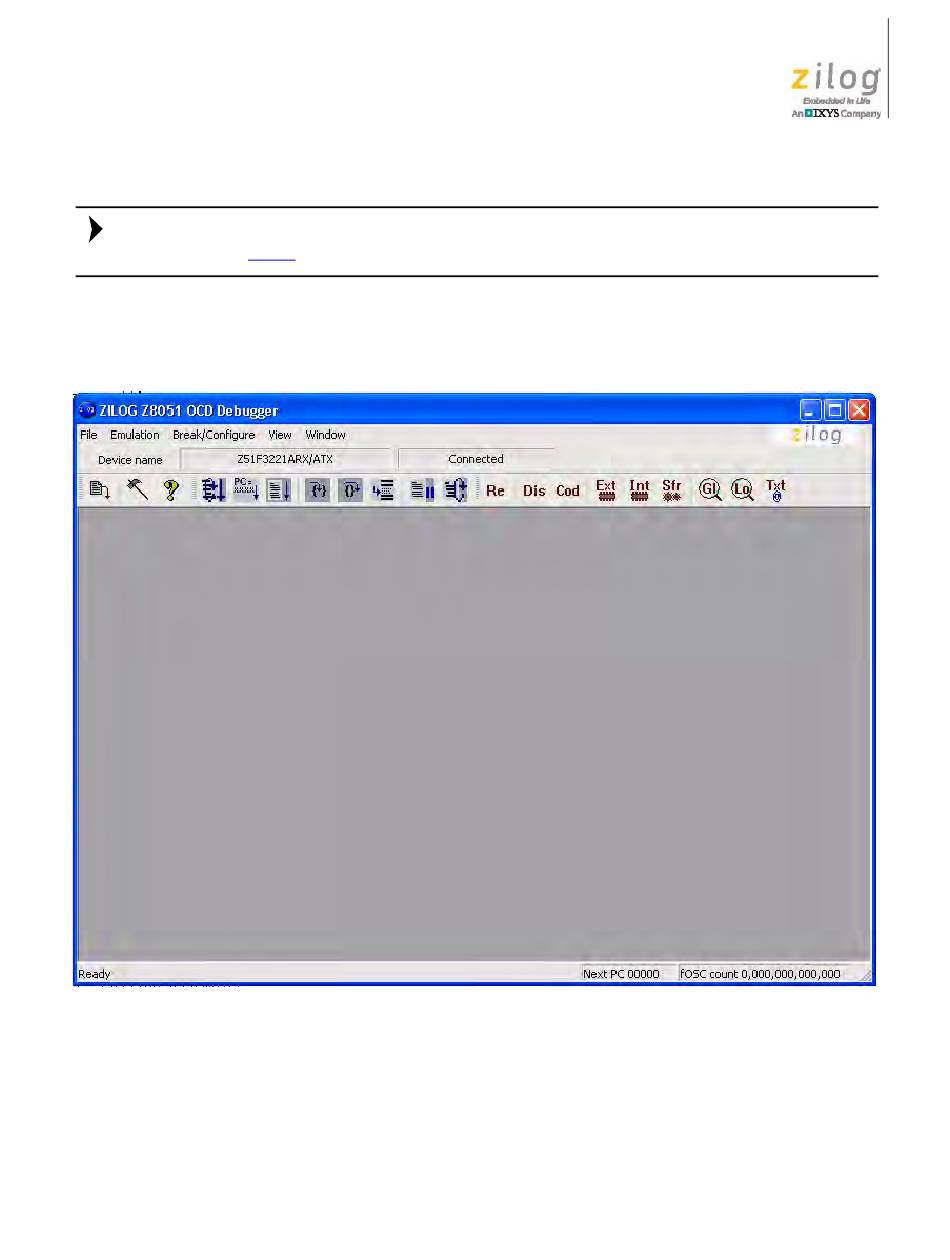

Figure 20. A Typical On-Chip Debugger Window

UM025801-1112

Build and Run the Z51F3221 Demo Project
