Z51F3221 Development Kit

User Manual

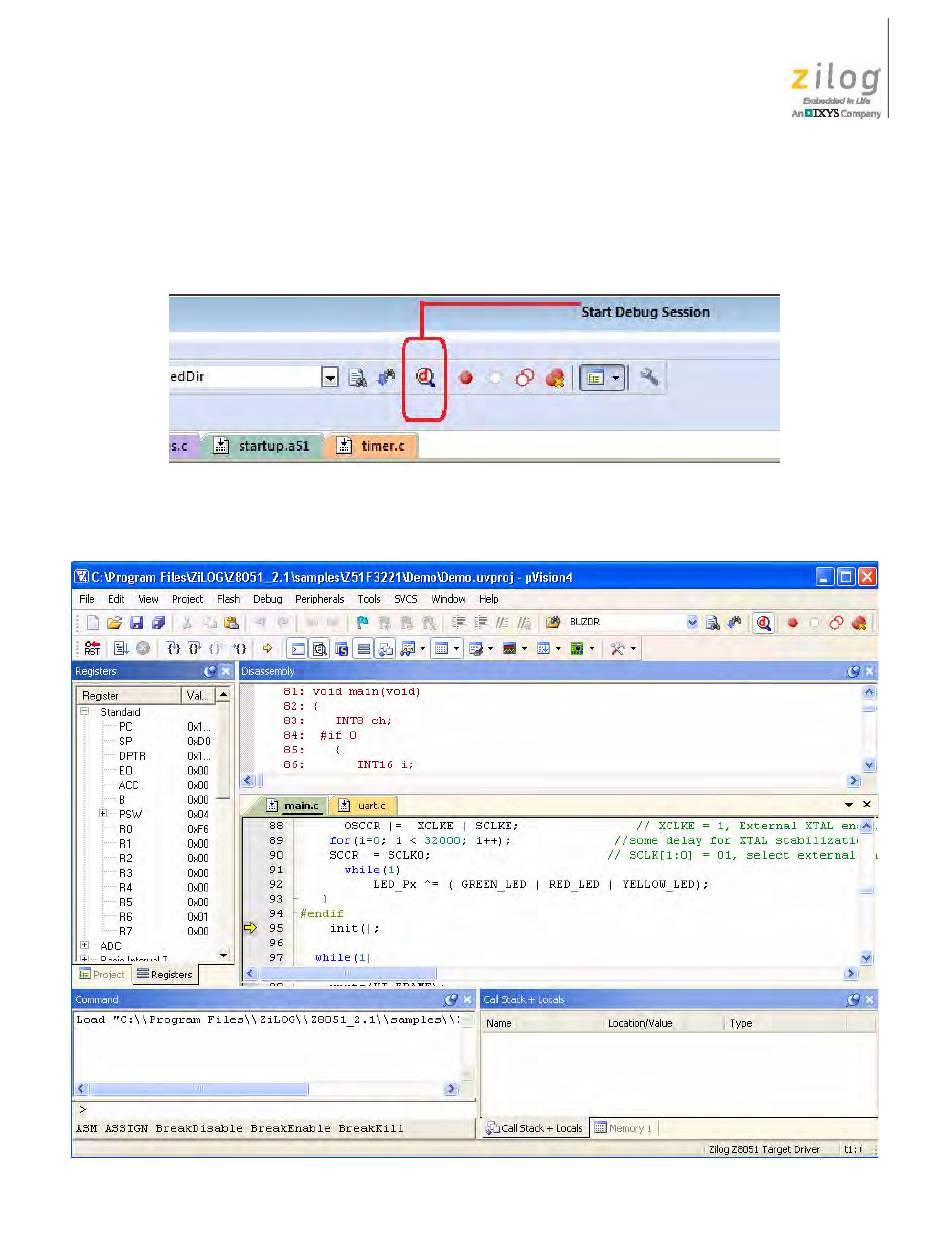

13. Start your debugging session by clicking the

Start/Stop Debug Session

icon, as indi-

cated in Figure 29. A default Windows configuration of the debug session is shown in

Figure 30.

Figure 29. Beginning a Debug Session

UM025801-1112

Using the Keil µVision IDE on a Demo Project
