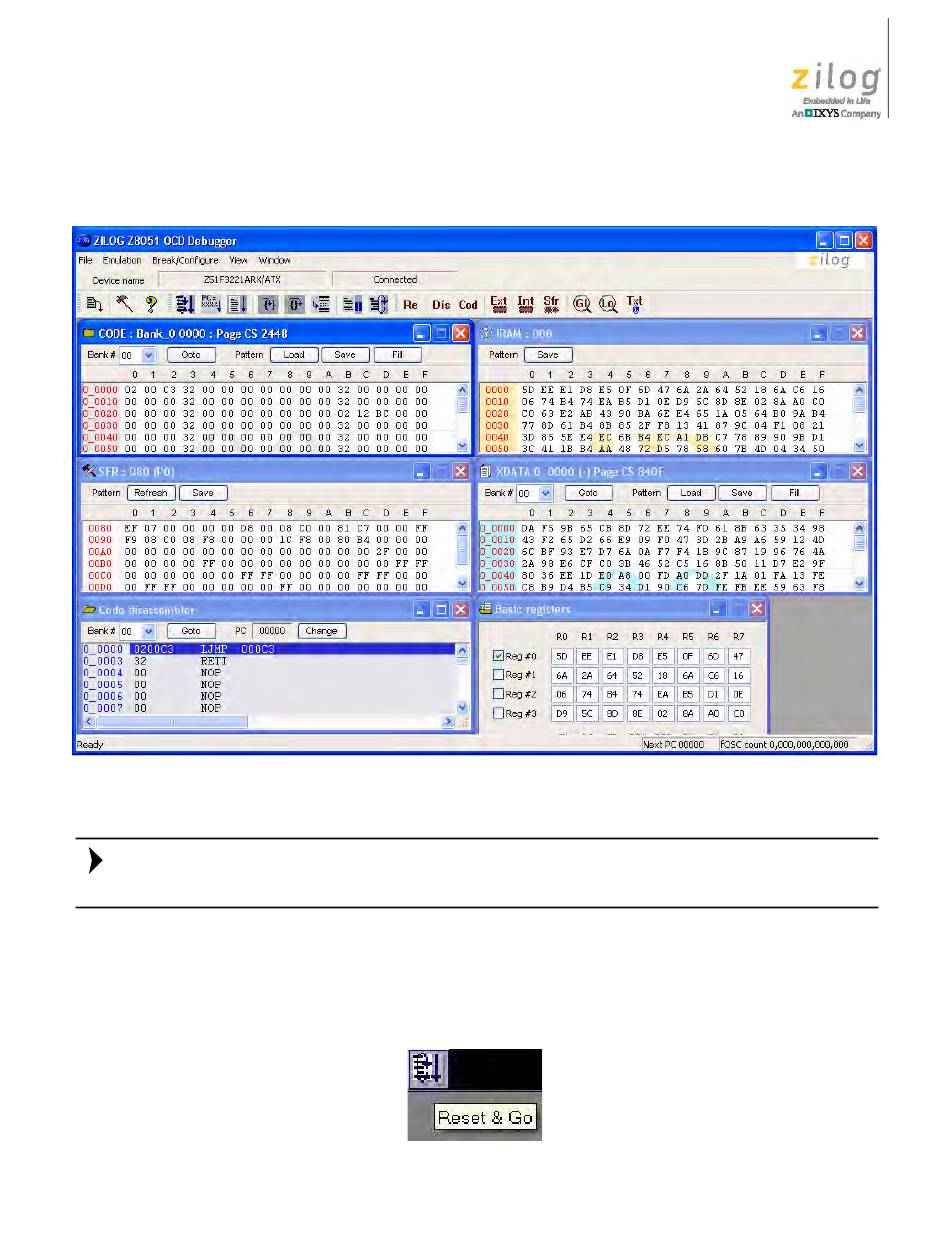

Figure 21. A Typical On-Chip Debugger Window with Child Windows Open

Note:

Use the View menu to open the child windows. For this demonstration, the example win-

dows shown in Figure 21 do not need to be opened.

10. Click the

D4 on the Z51F3221 Board will blink in sequence, and the LCD panel will display

Welcome to Zilog's Z51F3221 Development Kit

UM025801-1112

toolbar icon, shown in Figure 22. As a result, LEDs D2, D3 and

Reset & Go

Figure 22. Reset & Go Toolbar Icon

Z51F3221 Development Kit

Build and Run the Z51F3221 Demo Project

User Manual
