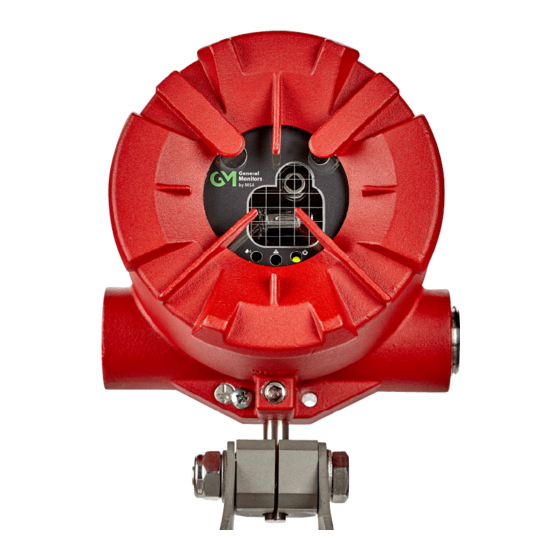

MSA FL500 UV/IR Operating Manual
  1. Manuals
  2. Brands
  3. MSA Manuals
  4. Security Sensors
  5. FL500 UV/IR
  6. Operating manual

MSA FL500 UV/IR Operating Manual

Hart communication
Hide thumbs Also See for FL500 UV/IR:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
®
FL500 HART
Communication
Operating Manual
Order No.: 10193215/00
MSAsafety.com

Advertisement

Table of Contents
loading

Related Manuals for MSA FL500 UV/IR

Summary of Contents for MSA FL500 UV/IR

  • Page 1 ® FL500 HART Communication Operating Manual Order No.: 10193215/00 MSAsafety.com...
  • Page 2 HART is a registered trademark of the FieldComm Group, Austin, Texas. 1000 Cranberry Woods Drive Cranberry Township, PA 16066 Phone 1-800-MSA-2222 Fax 1-800-967-0398 For your local MSA contacts please go to our website www.MSAsafety.com © MSA 2018. All rights reserved...

  • Page 3: Table Of Contents

    Contents Contents Introduction ............................... 5 Device Identification ..........................5 Getting Started ............................6 Connections .............................. 7 Dynamic Variables ........................... 7 5.1. FL500 Operating Mode Decimal Values ..................7 Error Status ............................... 8 Universal Commands ..........................8 Common-practice Commands ........................ 9 Device-specific Commands ........................
  • Page 4 Contents 9.19. Command 164: Get Slow-Changing Information ................24 9.20. Command 165: Get Set-up Information ..................25 9.21. Command 166: Get Device Constants ..................26 9.22. Command 170: Set Current Range ....................26 9.23. Command 200: Set Sensitivity ....................... 27 9.24.

  • Page 5: Introduction

    Introduction Introduction The FL500 UV/IR flame detector (hereafter referred to as the "FL500" or "device") is compliant with HART protocol Revision 7.0. This manual gives information about device-specific features related to the implementation of the HART protocol. This manual is made to be used as a technical reference for HART-capable host application developers, system integrators, and knowledgeable end users.

  • Page 6: Getting Started

    Getting Started Getting Started HART communication with the FL500 can be enabled through HART handheld communicators and PC-based systems. The following shows a typical setup. After the device is installed and connected to a PC, host application, or handheld communicator, the master typically starts communication to the device by sending HART Command 0.

  • Page 7: Connections

    20.0 mA 20.0 mA Fire after time delay (Alarm High) For information about terminal connections, refer to the FL500 UV/IR Flame Detector Operating Manual (PN 10193213). Dynamic Variables The only dynamic variable for the HART protocol is the primary variable. The output of the primary variable is the FL500 Operating Mode.

  • Page 8: Error Status

    Error Status Error Status Common-practice command 48 sends the Error status. The Error status is equivalent to Modbus register 0x02. Device Status Byte Description Class Bits Set 1 (upper) 0x0100 Alarm High relay Error 0x0200 Alarm Low relay Error 0x0400 Fault relay Error 0x0800...

  • Page 9: Common-Practice Commands

    Common-practice Commands Common-practice Commands Command Byte Command Number Reset Configuration Changed flag Priority Fault, Low Byte Priority Fault, High Byte Error status, Low Byte* Error status, High Byte* Power Cycled flag Event Happened flag 0x01 = Maintenance necessary 0x02 = Alarm High or Alarm Low * Equivalent to Modbus register x02 The FL500 does not use Burst mode or the Catch Device variable.

  • Page 10: Device-Specific Commands

    Device-specific Commands Device-specific Commands The following device-specific commands are used only for the FL500. Command Command Description Number Abort Alarm Test Puts the device in Normal operating mode Start or Stop Alarm Test Starts or stops Alarm Test mode Reset Alarm High Resets the latching Alarm Low and Alarm High relays Set Alarm High Relay Sets the configuration of the relay settings...

  • Page 11: Command 131: Abort Alarm Test

    Device-specific Commands Command Command Description Number Set Alarm High Delay Sets the delay in seconds for the time between when an Alarm Low event occurs until an alarm is activated Refer to Section 9.25 "Command 203: Set DIP Switch Override" Set DIP Switch Override for more information Reset COPM Fault...

  • Page 12: Command 132: Start Or Stop Alarm Test

    Device-specific Commands 9.2. Command 132: Start or Stop Alarm Test Request Data Bytes Byte Format Description Unsigned-8 0 = Off, 1 = On Response Data Bytes Byte Format Description Unsigned-8 0 = Off, 1 = On Command-specific Response Codes Code Class Description Success...

  • Page 13: Command 141: Set Alarm High Relay Configuration

    Device-specific Commands 9.4. Command 141: Set Alarm High Relay Configuration Request Data Bytes Byte Format Description Unsigned-8 Alarm High relay La/nL: 0 = nL, 1 = LA Unsigned-8 Alarm High relay En/dE: 0 = dE, 1 = En Unsigned-8 Alarm Low relay La/nL: 0 = nL, 1 = LA Unsigned-8 Alarm Low relay En/dE: 0 = dE, 1 = En Unsigned-8...

  • Page 14: Command 142: Reset Event Happened Flag

    Device-specific Commands 9.5. Command 142: Reset Event Happened Flag Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description None Command-specific Response Codes Code Class Description Success No command-specific errors 1-15 Undefined Error Access restricted 17-127 Undefined 9.6.

  • Page 15: Command 144: Clear Event Logging Counters

    Device-specific Commands 9.7. Command 144: Clear Event Logging Counters Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description None Command-specific Response Codes Code Class Description Success No command-specific errors 1-127 Undefined 9.8. Command 145: Read Alarm Low Event Log Request Data Bytes Byte Format...

  • Page 16: Command 146: Read Alarm High Event Log

    Device-specific Commands 9.9. Command 146: Read Alarm High Event Log Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-32 Event running time in seconds Date Event date: Day, Month, Year Unsigned-8 Event hour Unsigned-8 Event minute Unsigned-8 Event second 10-13 Unsigned-8...

  • Page 17: Command 147: Read Fault Event Log

    Device-specific Commands 9.10. Command 147: Read Fault Event Log This command reads the sensor life for the specified sensor. Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-32 Event running time in seconds Date Event date: Day, Month, Year Unsigned-8 Event hour Unsigned-8...

  • Page 18: Command 148: Read Maintenance Event Log

    Device-specific Commands 9.11. Command 148: Read Maintenance Event Log Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-32 Event running time in seconds Date Event date: Day, Month, Year Unsigned-8 Event hour Unsigned-8 Event minute Unsigned-8 Event second 10-11 Unsigned-8...

  • Page 19: Command 149: Set Clock

    Device-specific Commands 9.12. Command 149: Set Clock This command sets the internal real-time clock. Request Data Bytes Byte Format Description Date Date: Day, Month, Year Unsigned-8 Hours Unsigned-8 Minutes Unsigned-8 Seconds Response Data Bytes Byte Format Description Date Date: Day, Month, Year Unsigned-8 Hours Unsigned-8...

  • Page 20: Command 150: Read Clock

    Device-specific Commands 9.13. Command 150: Read Clock Request Data Bytes Byte Format Description Response Data Bytes Byte Format Description Date Date: Day, Month, Year Unsigned-8 Hours Unsigned-8 Minutes Unsigned-8 Seconds Command-specific Response Codes Code Class Description Success No command-specific errors 1-127 Undefined 9.14.

  • Page 21: Command 152: Read Run-Time Meter

    Device-specific Commands 9.15. Command 152: Read Run-time Meter Request Data Bytes Byte Format Description Response Data Bytes Byte Format Description Unsigned-32 Run-time meter value Command-specific Response Codes Code Class Description Success No command-specific errors 17-127 Undefined 9.16. Command 154: Set Event Index Request Data Bytes Byte Format...

  • Page 22: Command 155: Read Event Index

    Device-specific Commands 9.17. Command 155: Read Event Index Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-8 Event index Command-specific Response Codes Code Class Description Success No command-specific errors 1-127 Undefined FL500 HART® Communication Operating Manual...

  • Page 23: Command 163: Get Fast-Changing Information

    Device-specific Commands 9.18. Command 163: Get Fast-changing Information Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Mode Unsigned-16 Refer to Section 5.1 "FL500 Operating Mode Decimal Values" for information Unsigned-16 Submode Float Analog output Unsigned-16 Priority fault 10-11 Bit map Error status...

  • Page 24: Command 164: Get Slow-Changing Information

    Device-specific Commands 9.19. Command 164: Get Slow-Changing Information Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Signed-16 Temperature Float Supply voltage Signed-16 0 Command-specific Response Codes Code Class Description Success No command-specific errors 1-127 Undefined FL500 HART®...

  • Page 25: Command 165: Get Set-Up Information

    Device-specific Commands 9.20. Command 165: Get Set-up Information Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-8 FL500 type: 01 = UV/IR, 02 = UV only, 03 = Hydrogen Enumerated Measured units Unsigned-32 0 Unsigned-8 Unsigned-8 Alarm High relay La/nL: 0 = nL, 1 = LA Unsigned-8...

  • Page 26: Command 166: Get Device Constants

    Device-specific Commands 9.21. Command 166: Get Device Constants Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-8 System firmware revision, ASCII code Command-specific Response Codes Code Class Description Success No command-specific errors 1-127 Undefined 9.22. Command 170: Set Current Range Request Data Bytes Byte Format...

  • Page 27: Command 200: Set Sensitivity

    Device-specific Commands 9.23. Command 200: Set Sensitivity Request Data Bytes Byte Format Description Unsigned-8 Sensitivity: 0 = 100% High, 1 = 75% Mid, 2 = 50% Low Response Data Bytes Byte Format Description Unsigned-8 Sensitivity: High, Mid, Low Command-specific Response Codes Code Class Description...

  • Page 28: Command 201: Set Alarm High Delay

    Device-specific Commands 9.24. Command 201: Set Alarm High Delay Request Data Bytes Byte Format Description Unsigned-8 Alarm High delay: 2 = 2 sec, 0 = 4 sec, 1 = 8 sec, 3 = 10 sec Response Data Bytes Byte Format Description Unsigned-8 Alarm High delay...

  • Page 29: Command 203: Set Dip Switch Override

    Device-specific Commands 9.25. Command 203: Set DIP Switch Override Request Data Bytes Byte Format Description Unsigned-8 0 = Setting from DIP switch 1 = Override DIP switch Response Data Bytes Byte Format Description Unsigned-8 0 = Setting from DIP switch 1 = Override DIP switch Command-specific Response Codes Code...

  • Page 30: Command 205: Get Flame Device Info

    Device-specific Commands 9.27. Command 205: Get Flame Device Info Request Data Bytes Byte Format Description None Response Data Bytes Byte Format Description Unsigned-16 UV signal counts Unsigned-16 UV COPM Fault count Unsigned-16 IR1 signal count Unsigned-16 IR1 COPM Fault count Unsigned-16 IR amplitude in millivolts (mV) 10-11 Unsigned-16...

  • Page 31: Fault Event Log - Cause Description

    Fault Event Log – Cause Description 10. Fault Event Log – Cause Description The Fault Event log shows the cause of the error or fault as it was reported by the Read Event Log commands. Byte Bit Hex Description 1 (upper) 0 0x0100 Alarm High relay 0x0200...

  • Page 32: Performance

    Performance 11. Performance 11.1. Sampling Rates The FL500 responds to interrupts from the sensors. Other items are sampled at 35 ms or a multiple of 35 ms. 11.2. Device Reset The FL500 cannot be reset by any command. A power cycle is necessary to reset the device. 11.3.

  • Page 33: Operating Modes

    Performance 11.8. Operating Modes The FL500 sends No Fire output in Normal operating mode. Different operating modes are used to identify UV and/or IR radiation. Different operating modes are used to identify special conditions. 11.9. Write Protection The FL500 does not support any write-protection mode. 11.10.

  • Page 34: Us 12. Capability Checklist

    Capability Checklist 12. Capability Checklist Manufacturer, model, and revision General Monitors, Inc., FL500, Revision 1 Device type FL500 UV/IR Flame Detector HART revision Device description available Number and type of sensors 1 UV sensor, 1 IR sensor Number and type of actuators Number and type of host side signals 1: 4 –...

  • Page 35: Default Configuration

    Default Configuration 13. Default Configuration Parameter Default value Lower range value Upper range value 65535 PV Units FL500 Operating Mode Sensor type UV/IR Number of wires Damping time constant Fault-indication jumper Write-protect jumper Number of response preambles FL500 HART® Communication Operating Manual...
  • Page 36 Default Configuration FL500 HART® Communication Operating Manual...
  • Page 37 For local MSA contacts, please visit us at MSAsafety.com Because every life has a purpose...
