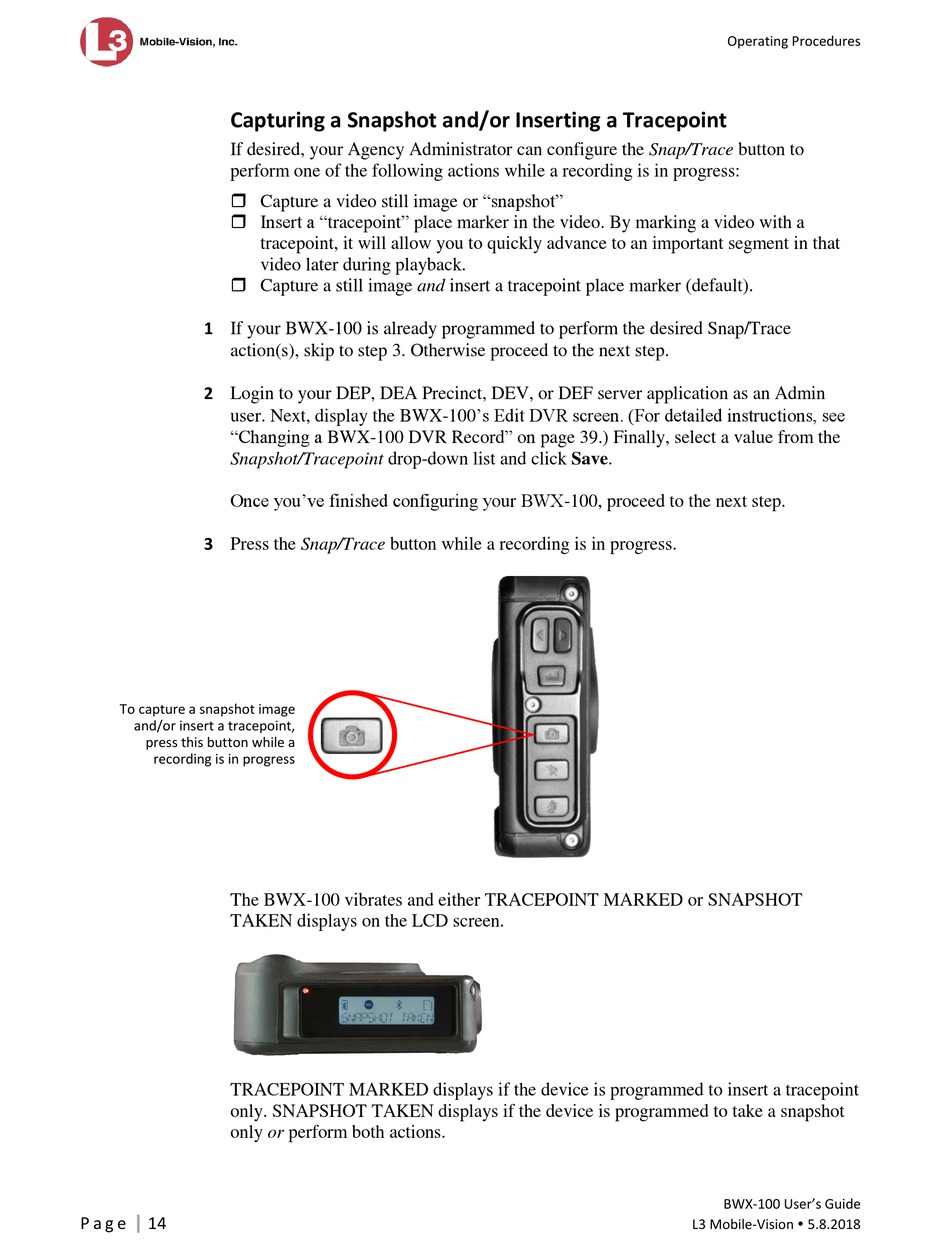

Capturing a Snapshot and/or Inserting a Tracepoint

If desired, your Agency Administrator can configure the Snap/Trace button to
perform one of the following actions while a recording is in progress:
 Capture a video still image or "snapshot"
 Insert a "tracepoint" place marker in the video. By marking a video with a
 Capture a still image and insert a tracepoint place marker (default).
1 If your BWX-100 is already programmed to perform the desired Snap/Trace
action(s), skip to step 3. Otherwise proceed to the next step.
2 Login to your DEP, DEA Precinct, DEV, or DEF server application as an Admin
user. Next, display the BWX-100's Edit DVR screen. (For detailed instructions, see
"Changing a BWX-100 DVR Record" on page 39.) Finally, select a value from the
Snapshot/Tracepoint drop-down list and click Save.
Once you've finished configuring your BWX-100, proceed to the next step.
3 Press the Snap/Trace button while a recording is in progress.
To capture a snapshot image
and/or insert a tracepoint,
press this button while a
recording is in progress
The BWX-100 vibrates and either TRACEPOINT MARKED or SNAPSHOT
TAKEN displays on the LCD screen.
TRACEPOINT MARKED displays if the device is programmed to insert a tracepoint
only. SNAPSHOT TAKEN displays if the device is programmed to take a snapshot
only or perform both actions.
P a g e 14
tracepoint, it will allow you to quickly advance to an important segment in that
video later during playback.
