Summary of Contents for DigitaLinx DL-S41-H2

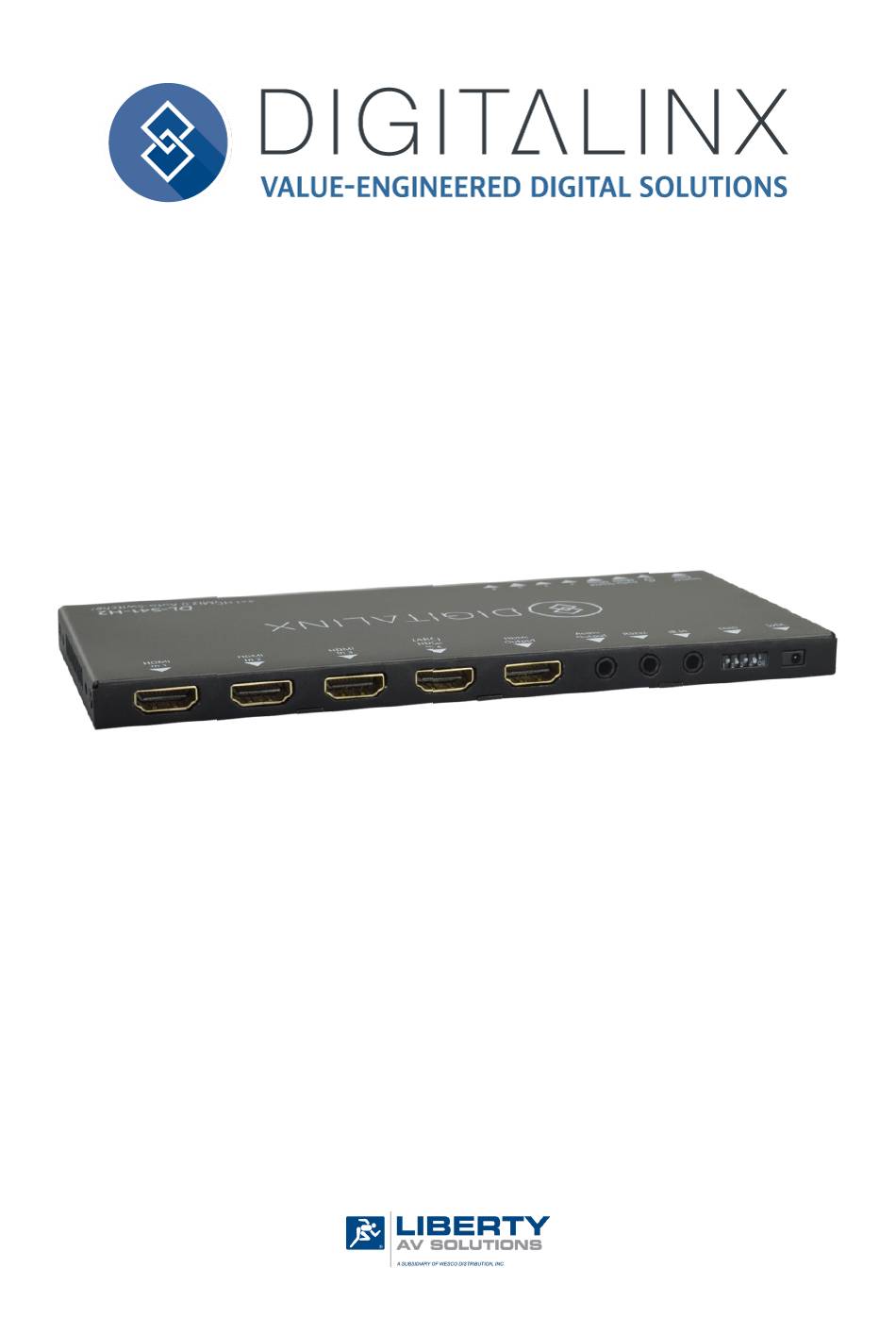

  • Page 1 DL-S41-H2 Owners Manual Rev 180718 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80918 Fax: 719-260-0075...
  • Page 2 DL-S41-H2 Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 3: Table Of Contents

    DL-S41-H2 Owners Manual Table of Contents Product Overview ����������������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ����������������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panel View ��������������������������������������������������������������������������������������������������������������������������������������� Front View ��������������������������������������������������������������������������������������������������������������������������������������������������������� Rear View����������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������������������� Quick Start ��������������������������������������������������������������������������������������������������������������������������������������������������������� Mount the Switcher ������������������������������������������������������������������������������������������������������������������������������������������ Connecting a Display ����������������������������������������������������������������������������������������������������������������������������������������� HDMI Output ����������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Product Overview

    DL-S41-H2 Owners Manual Product Overview The DL-S41-H2 is a slimline HDMI 2.0b auto switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolutions up to 4Kx2K@60Hz 4:4:4, HDR, and multichannel audio. In addition to passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation.
  • Page 5: Front And Rear Panel View

    DL-S41-H2 Owners Manual Front and Rear Panel View Front View 1. AUTO/SOURCE - Auto / manual mode switching selection • Press and hold 3 seconds to switch between switching modes 2. POWER LED - Illuminates RED when power is applied 3.
  • Page 6: Rear View

    DL-S41-H2 Owners Manual Rear View 1. HDMI IN 1-3 - HDMI inputs 1 - 3 for HDMI sources 2. (ARC) HDMI IN 4 - ARC compatible HDMI input 3. HDMI OUTPUT - HDMI output to connect to display technology 4. AUDIO OUTPUT - 3.5mm audio output jack 5.
  • Page 7: Installation Instructions

    Apply power Mount the Switcher At least 2 inches of free air space is required on both sides of the DL-S41-H2 for proper side ventilation. Avoid mounting the DL-S41-H2 near a power amplifier or any other source of significant heat.
  • Page 8: Connecting Control

    IR Remote Control (Optional) Connect the IR receiver to the IR input port of the DL-S41-H2, the IR remote is used for input switching and it also can be used to control source and display devices based on CEC control. To use this feature with a compatible CEC source and display, turn on the CEC option in the source and displays menu options.
  • Page 9: Edid Management

    DL-S41-H2 Owners Manual EDID Management The rear panel features a 4-pin DIP switch for setting predefined EDID input settings. The ten types of embedded EDID and their corresponding switch settings are shown below. When in the down position, the switch represents “ON”, when the switch position in the up position it...
  • Page 10: Arc Mode

    A/V amplifier. When ARC mode is active on the switcher, the ARC stream will pass to the active HDMI source device if it can process the signal. To adjust the audio mode of the DL-S41-H2, see pg 16- RS232 Control Commands: Audio Mode Settings...
  • Page 11: Application Diagram

    DL-S41-H2 Owners Manual Application Diagram WIRELESS BLURAY BYOD MEDIA LAPTOP PLAYER RS232 CONTROL HDMI AUDIO RS232 IR RECEIVER IR REMOTE (supplied) AUDIO AMP DISPLAY...
  • Page 12: Rs232 Control Commands

    DL-S41-H2 Owners Manual RS232 Control Commands RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None The commands are case sensitive. All commands below are in ASCII and all strings and responses end in a carriage return (hex 0D) and a line feed (hex 0A).
  • Page 13: Cec Source Device Control

    DL-S41-H2 Owners Manual CEC Source Device Control To use these commands sets with a compatible CEC source, turn on the CEC option in the sources menu option. Note: CEC performance may differ for various sources and not all command functions may be supported by third party source manufacturers.
  • Page 14 DL-S41-H2 Owners Manual CEC Source Device Control (continued) Description Command Example >>SRCMenu Command: >>SRCMenu<CR><LF> Open Menu Settings Return: <<SRCMenu<CR><LF> >>SRCBack Command: >>SRCBack<CR><LF> Go Back Return: <<SRCBack<CR><LF> >>SRCOk Command: >>SRCOk<CR><LF> Confirm (OK) Return: <<SRCOk<CR><LF> >>SRCExit Command: >>SRCExit<CR><LF> Exit Return: <<SRCExit<CR><LF> >>SRCUp Command: >>SRCUp<CR><LF>...
  • Page 15: Cec Display Control

    DL-S41-H2 Owners Manual CEC Display Control To use these commands sets with a compatible CEC display, turn on the CEC option in the displays menu option. Note: CEC performance may differ for various displays and not all command functions may be supported by third party source manufacturers.
  • Page 16: Audio Mode Settings

    DL-S41-H2 Owners Manual Audio Mode Settings Description Command Example >>AUDExternal Command: >>AUDExternal<CR><LF> Enable ARC mode Return: <<AUDExternal<CR><LF> >>AUDInternal Command: >>AUDInternal<CR><LF> Enable embedded HDMI audio input Return: <<AUDInternal<CR><LF> System Commands Description Command Example >>RESET Command: >>RESET<CR><LF> Factory Reset Return: <<SYSRESET<CR><LF> DL-S41-H2 VER 1.0.0...
  • Page 17: Technical Specifications

    DL-S41-H2 Owners Manual Technical Specifications VIDEO Video Inputs (4) HDMI Video Input Connector (4) HDMI type A Input Video Signal HDMI Video Output (1) HDMI Video Output Connector (1) HDMI type A Output Video Signal HDMI Input Resolutions Support- Up to 3840 x 2160 @ 60Hz, 4:4:4, 8bit color depth Standards Compliant with HDMI 2.0b &...
  • Page 18 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
