DL-SC41U-TX Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 191121
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Table of Contents
Related Manuals for DigitaLinx DL-SC41U-TX
Summary of Contents for DigitaLinx DL-SC41U-TX

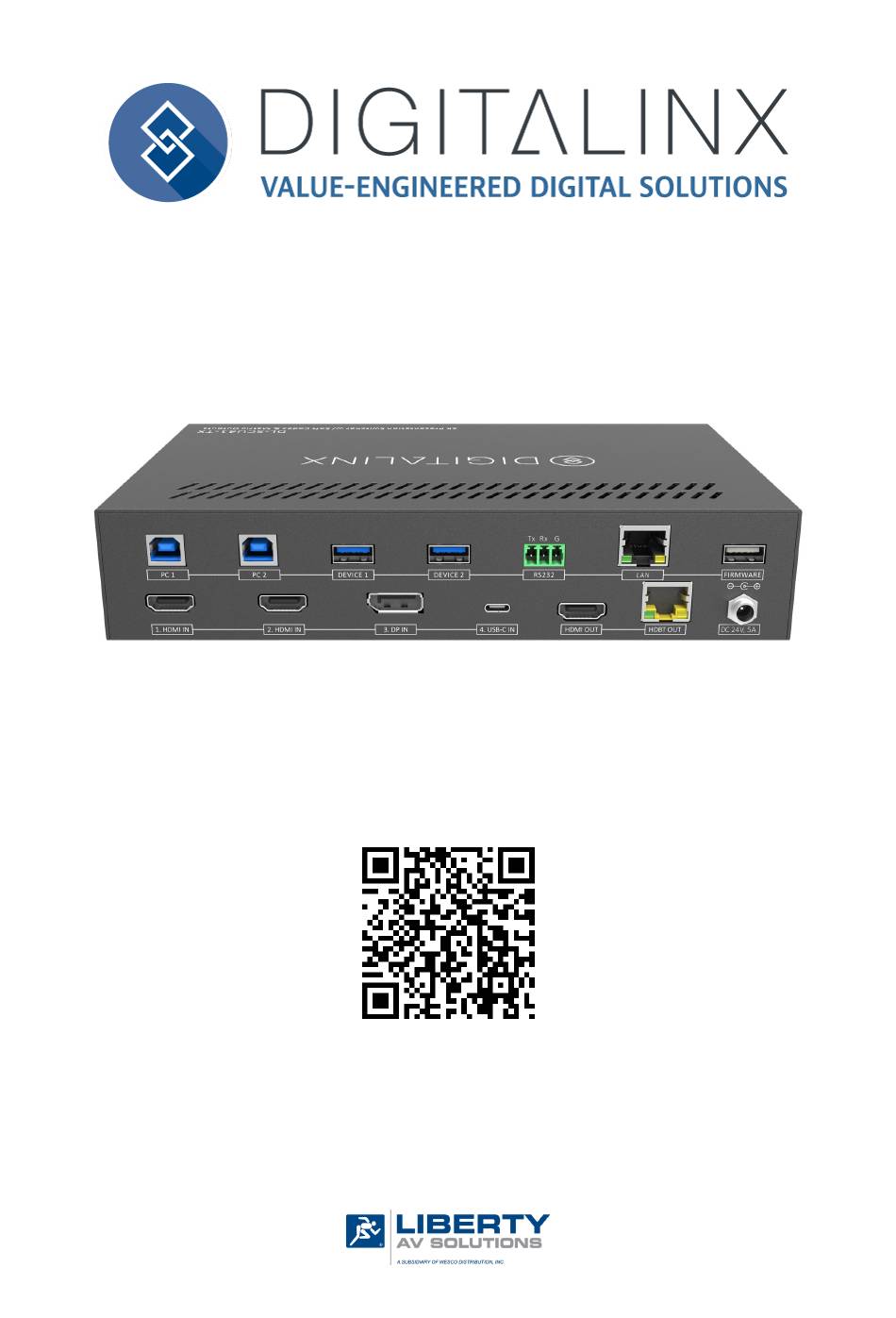

- Page 1 DL-SC41U-TX Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 191121...
-
Page 2: Product Overview
High Speed USB 2.0 signals up to 190Mbps up to 70 meters / 232’ using one category cable. The switcher is compatible with the DL-SCU-RX HDBaseT 2.0 receiver (sold separately) and the receiver can supply power to the DL-SC41U-TX remotely when used in this configuration. -
Page 3: Front Panel View
4. SWITCH - A/V switch selector • To route an input to an output, select the INPUT, then the OUTPUT then press SWITCH. By default the DL-SC41U-TX is set to auto switching mode. 5. DISPLAY - Display control buttons, triggers CEC / RS232 commands •... -
Page 4: Back Panel View
9. 4. USB-C IN - USB C input, support A/V, data and power charging up to 40 watts NOTE: The DL-SC41U-TX USB-C input supports ALT-DP mode for video, to ensure a source is compatible with the DL-SC41U-TX check the sources capability of supporting this mode. - Page 5 HDBaseT, connect the power supply adapter to the DL-SCU-RX. NOTE: If you choose to supply 40 watts of power charging to the USB-C input on the DL-SC41U-TX while using the DL-SCU-RX extender receiver, you will need to power both the DL-SC4U-TX and the DL-SCU-RX devices with the supplied power supplies.
- Page 6 Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the DL-SC41U-TX, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
-
Page 7: Technical Specifications
DL-SC41U-TX Quick Guide Technical Specifications Video Video Inputs (2) HDMI, (1) Display Port, (1) USB-C Video Input Connector (2) HDMI type A, (1) Display Port, (1) USB-C Input Video Signal HDMI for HDMI input, DisplayPort 1.2 for Display Port, ALT-DP Mode for USB-C... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
