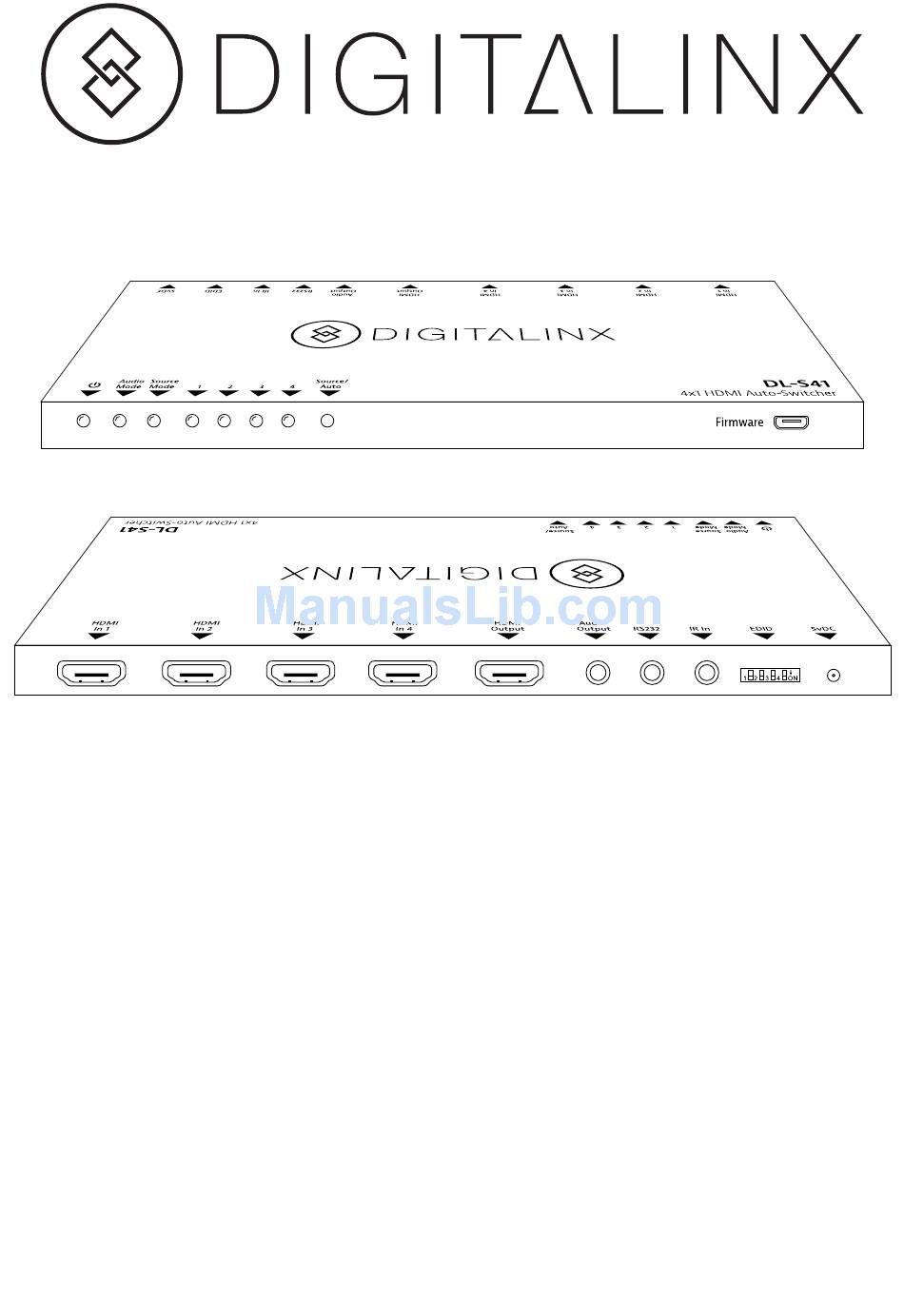

DL-S41 Installation Guide
The DL-S41 is a small format auto-switcher with four HDMI video inputs and
one HDMI output. This switcher supports HDMI video resolutions up to 4K
(3840x2160) at 30 Hz, 1080p 3D, and multichannel audio. In addition to passing
EDID information from the display, there are multiple built-in EDID settings to
simplify an installation. The DL-S41 will de-embed digital stereo audio to provide
an analog audio source for an existing audio system. This switcher also features
audio return channel (ARC) support through the analog audio output.
When in auto-switch mode, the DL-S41 will switch to an HDMI input as soon as
a new source is connected. When the active source is removed, the switcher will
select the first source on the lowest numbered input. The DL-S41 may also be
controlled via RS232, IR with the included remote, or from the source button on
the front of the switcher.
Included Accessories:
•
Mounting rails with screws
•
Rubber feet
•
RS232 Cable
•
IR Remote with battery
•
IR Receiver
•
Power Supply
•
Installation Guide
Advertisement
Table of Contents
Related Manuals for DigitaLinx DL-S41
Summary of Contents for DigitaLinx DL-S41
- Page 1 This switcher also features audio return channel (ARC) support through the analog audio output. When in auto-switch mode, the DL-S41 will switch to an HDMI input as soon as a new source is connected. When the active source is removed, the switcher will select the first source on the lowest numbered input.
-
Page 2: Front Panel
Front Panel: Power LED G. Input 4 LED Red when powered on H. Source/Auto Button Audio Mode LED Press to switch to next input Green when de-embedding audio Press and hold to switch between Yellow when in ARC mode manual and auto modes Source Mode LED Firmware Update Port Green in manual switch mode... - Page 3 Instructions Verify all components included with the switcher are present before installation. If the switcher will be permanently mounted to a surface, attach the included mounting brackets with the supplied screws. If the switcher will be sitting on a shelf, attach the included rubber feet to the bottom of the unit.
-
Page 4: Source Button Control
Source Button Control Manual Switching: When the DL-S41 is in manual switching mode, the Source Mode LED will be green. To advance to the next input, press the Source/Auto button. Automatic Switching: To enable automatic switching, press the Source/Auto button for three seconds. - Page 5 IR Control MENU: Mute Turns on and off audio and video output. Audio Switches between source HDMI audio and ARC audio output available on the Audio Output port. Source/Auto Same function as the Source/Auto button on the switcher. INPUTS: 1, 2, 3, 4 Switches directly to the specified input Prev Switches to the previous input...
- Page 6 RS232 Control RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None = Input Number There is either a period (.) at the end of many commands. This character must be present for the command to process correctly. A carriage return and line feed will follow all responses.
-
Page 7: Audio Output
Audio Return Channel (ARC) allows audio from a display to pass “upstream” through an HDMI cable to an audio processing device, such as an AV receiver. When ARC mode is active on the DL-S41, the ARC stream will pass to the active HDMI source device if it can process the signal. -
Page 8: Technical Specifications
Technical Specifications I/O Connections HDMI Inputs Four (4) HDMI Type A Receptacle HDMI Output One (1) HDMI Type A Receptacle Audio Output One (1) 3.5mm TRS Jack IR Input One (1) 3.5mm TRS Jack RS232 One (1) 3.5mm TRS Jack EDID Selection Four (4) Position DIP Switch 5v DC Power...
