DL-AS21C Installation Guide
The DigitaLinx DL-AS21C is a compact multi-format switcher with
support for video resolutions up to UHD (4096x2160). Featuring
one HDMI input and one VGA input with stereo audio, the DL-AS21C
automatically or manually switches either input to a single HDMI
output.
The DL-AS21C features multiple methods of control. When set to Auto,
the switcher will automatically switch to the newest source device
added to the DL-AS21C with VGA taking precedence should multiple
sources be live simultaneously. The DL-AS21C may be manually
controlled by switching via the front panel, RS232, or contact closure.
As an added benefit, the DL-AS21C features a built-in CEC controller
to power on/off the connected display by auto-selecting the source
device's status.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DigitaLinx DL-AS21C
Summary of Contents for DigitaLinx DL-AS21C
- Page 1 The DigitaLinx DL-AS21C is a compact multi-format switcher with support for video resolutions up to UHD (4096x2160). Featuring one HDMI input and one VGA input with stereo audio, the DL-AS21C automatically or manually switches either input to a single HDMI output.
-
Page 2: Front Panel

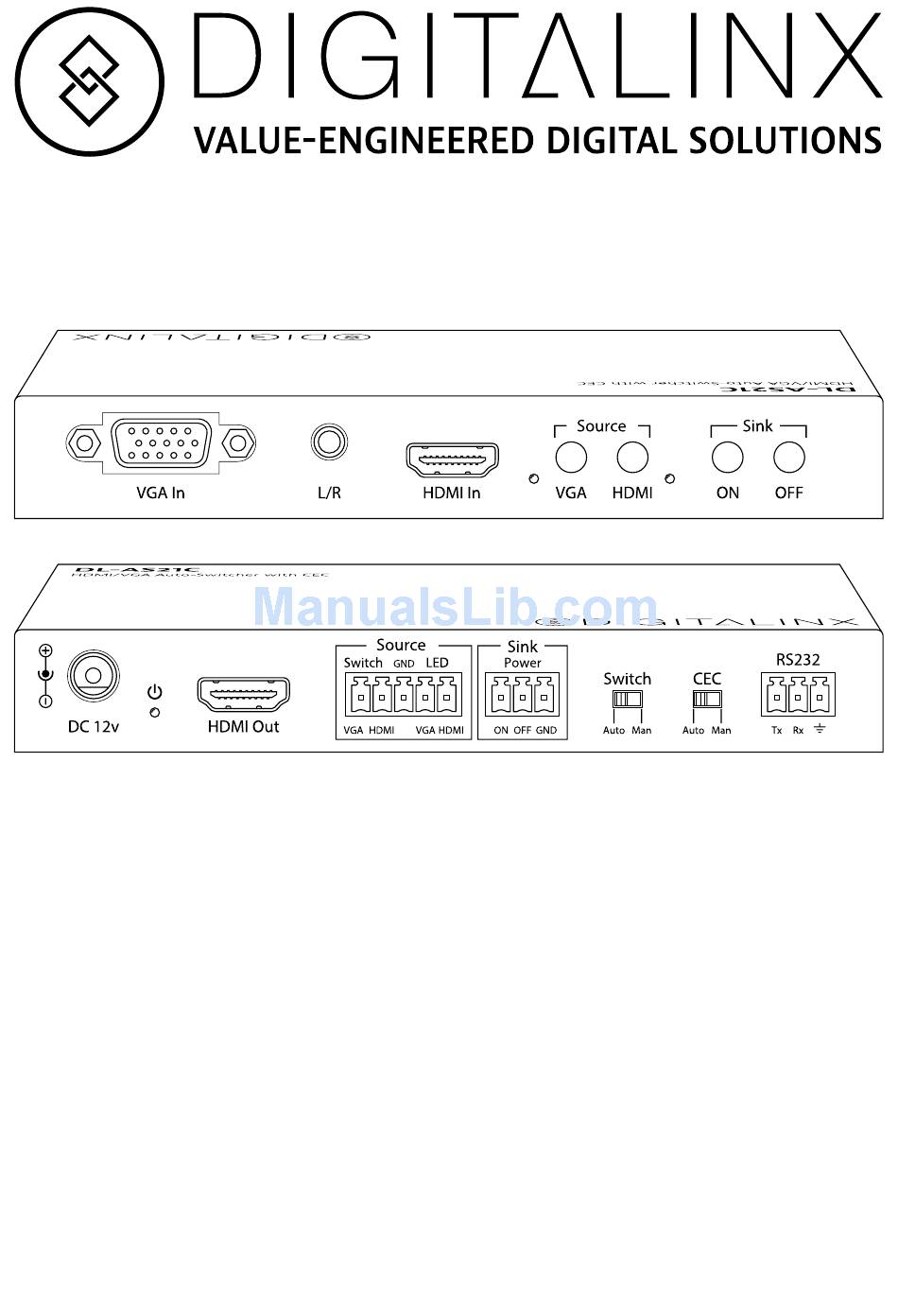

Front Panel VGA Input Analog Audio Input (VGA only) HDMI Input with Embedded Audio VGA Select Button with LED HDMI Select Button with LED Sink (Display) On Button G. Sink (Display) Off Button Rear Panel 12v DC Input Power LED HDMI Output with Embedded Audio Source Select Contact Closures with LED Indicators CEC On/Off Contact Closures... -
Page 3: Installation Instructions
9. Connect switches and LEDs to the Source and CEC contact closure connections. 10. Connect the included power supply to the DL-AS21C and lock the power supply to the power connector by twisting the locking collar clockwise. 11. Power on all audio/video devices. -
Page 4: Input Selection
Manual Switching: To enable manual switching, slide the Switch mode selector switch to the Man position. When in manual switch mode, the select the input of the DL-AS21C by using one of the following methods: Front Panel: Press either the HDMI or VGA buttons. -
Page 5: Rs232 Control
RS232 Control RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None A carriage return and line feed must follow all RS232 commands. A carriage return and line feed will follow all responses. Input Switching Description Command Response SET HDMI HDMI... -
Page 6: Important Notice
Important notice: • Do not attempt to disassemble or alter the housing. There are no user-serviceable parts inside the unit. Doing so will void your warranty. • To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and destination equipment must be powered off during installation. •... -
Page 7: Technical Specifications
Technical Specifications Supported Audio, Video, and Control Supported Broadcast HDMI Input 480p: 59.94/60 Hz, 576p: 50 Hz, 720p: 25/29.97/30/50/59.94/60 Resolutions Hz; 1080i: 50/59.94/60 Hz; 1080p: 23.98/24/25/29.97/30 /50/59.94/60 Hz; 4096x2160/3840x2160: 24/25/30 Hz; 4096x2160/3840x2160 (4:2:0): 50/60 Hz Supported DVI-based HDMI Input 640x480, 720x576, 800x600, 1024x768, 1280x720, 1280x800, Resolutions (all at 60 Hz) 1280x1024, 1360x768, 1366x768, 1440x900, 1400x1050, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200... - Page 8 11675 Ridgeline Dr. Colorado Springs, CO 80921 Toll-Free: 800-530-8998 Fax: 719-260-0075 www.libav.com rev 150724...
