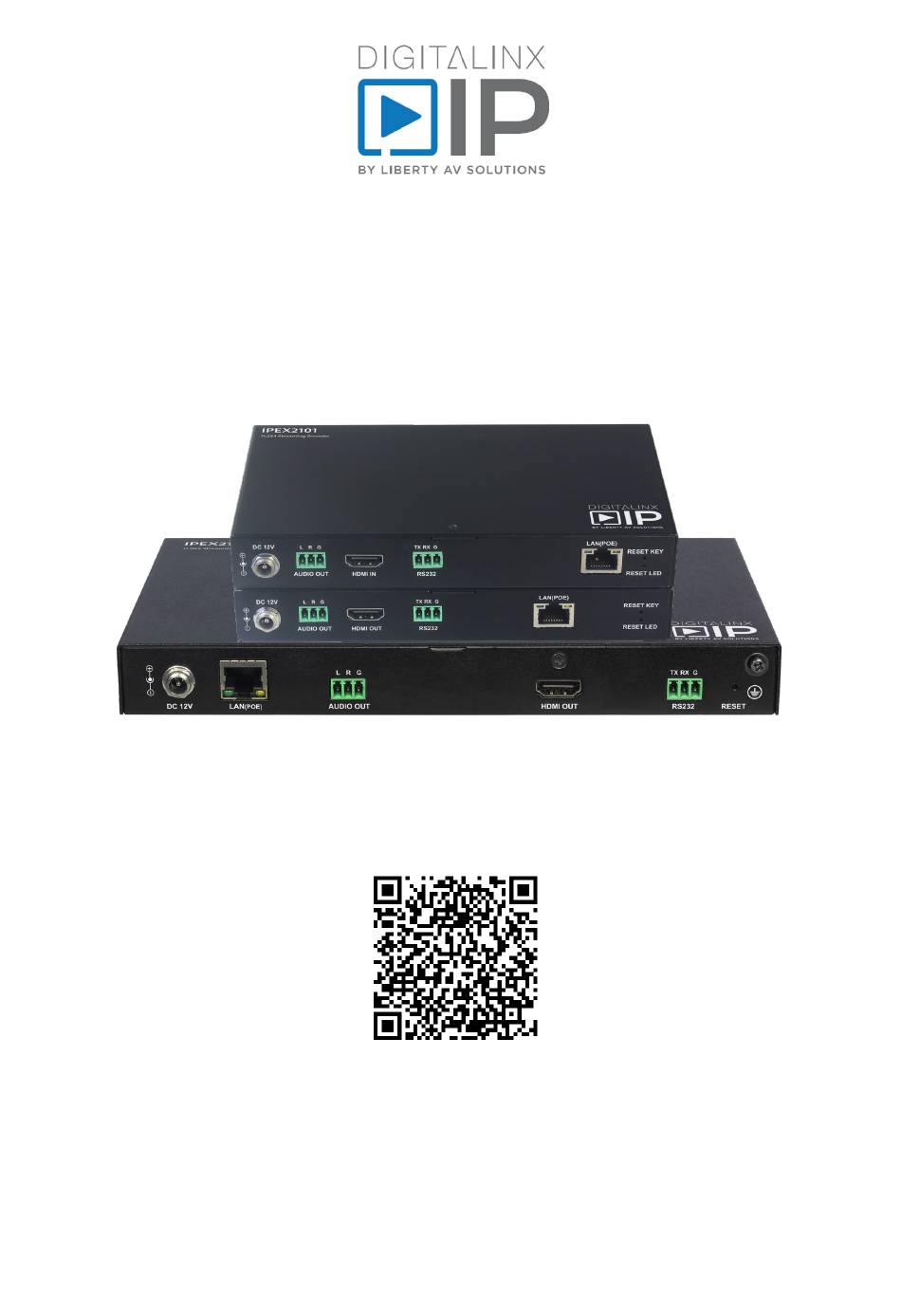

IPEX2100 Series Quick
Install Guide
This guide is for quick installation only.
For complete Digitalinx IP Deployment Guide go to www.libav.com or use a
QR reader to access the manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 191105
11675 Ridgeline Dr.
Toll-Free: 800-530-8998
Colorado Springs, CO 80921
Fax: 719-260-0075
supportlibav@libav.com
Advertisement
Table of Contents
Related Manuals for DigitaLinx IPEX2100 Series
Summary of Contents for DigitaLinx IPEX2100 Series
- Page 1 IPEX2100 Series Quick Install Guide This guide is for quick installation only. For complete Digitalinx IP Deployment Guide go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 191105 11675 Ridgeline Dr.
-
Page 3: Important Safety Instructions
IPEX2100 Series Quick Install Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. - Page 4 IPEX2100 Series Quick Install Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
-
Page 5: Product Overview
Only (1) one IPEXCB control interface is needed for an IPEX2100 matrix system. IPEX2102 Decoder The Digitalinx IP IPEX2102 decodes HDMI video and audio over a 1Gb network infrastructure using h.264 AVC encoding. The IPEX2102 outputs video up to 1080p@60 Hz and can scale the video content either by user defined preference or automatically based on the native resolution of the connected display while seamlessly switching between sources. - Page 6 IPEX2102MV Multi-view Decoder The Digitalinx IP IPEX2102MV receives HDMI video and audio over a 1Gb network infrastructure using h.264 AVC encoding with a configurable data rate up to 30 Mbps. The IPEX2102MV outputs video up to 4K and can scale the video content either by user defined preference or automatically based on the native resolution of the connected display.
-
Page 7: Front And Rear Panels
IPEX2100 Series Quick Install Guide Front and Rear Panels IPEX2101 Front Panel IPEX2101 Power indicator • When ON; encoder is powered on • When OFF; encoder is powered off Status indicator • When ON; encoder detects valid input signal • When BLINKING; encoder detects no input signal •... - Page 8 IPEX2100 Series Quick Install Guide IPEX2102 Front Panel IPEX2102 ID KEY Power indicator • When ON; encoder is powered on • When OFF; encoder is powered off Status indicator • When ON; encoder detects valid input signal • When BLINKING; encoder detects no input signal •...
- Page 9 IPEX2100 Series Quick Install Guide IPEX2102MV Front Panel IPEX2102MV ID KEY Power indicator (located on top) • When ON; encoder is powered on • When OFF; encoder is powered off Status indicator (located on top) • When ON; encoder detects valid input signal •...
-
Page 10: System Considerations
IPEX2100 Series Quick Install Guide System Considerations Gigabit Switch Features A high quality, managed Level 2 gigabit switch with a high bandwidth backplane should be used in the installation, preferably with PoE support. The two primary features to look for in the switch are support for multicast and support for IGMP querier / snooping, which are required technologies for stable multicast video signals. -
Page 11: System Control
The IPEX2102 and the IPEX2102MV can turn on and turn off connected displays via CEC. This technology has been a part of the HDMI specification for years. The Digitalinx IP Control software for Windows and iPad can turn on and off the displays for easy end user control. -
Page 12: Installation Instructions
IPEX2100 Series Quick Install Guide Installation Instructions Basic Installation Configure the gigabit switch for IP video operation. Liberty has guides for many common switch manufacturers on the IPEXCB page on the Liberty website (www.libav.com). Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. - Page 13 IPEX2100 Series Quick Install Guide IPEX2101 Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle One (1) 8P8C port (Shielded RJ45) Power One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel RS232 Port One (1) 3-pin Removable Terminal Block Connector...
- Page 14 IPEX2100 Series Quick Install Guide IPEX2102 Technical Specifications Input/Output Connections HDMI Output One (1) HDMI Type A Receptacle One (1) 8P8C port (Shielded RJ45) Power One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel RS232 Port One (1) 3-pin Removable Terminal Block Connector...
- Page 15 IPEX2100 Series Quick Install Guide IPEX2102MV Technical Specifications Input/Output Connections HDMI Output One (1) HDMI Type A Receptacle One (1) 8P8C port (Shielded RJ45) Power One (1) 5.5 mm OD, 2.6 mm ID Threaded Barrel RS232 Port One (1) 3-pin Removable Terminal Block Connector...
- Page 16 Digitalinx IP is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998 Email: supportlibav@libav.com...
