DL-SE3H1V-C Owners Manual
Rev 180115
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80918
Fax: 719-260-0075

Advertisement

Table of Contents
loading

Summary of Contents for DigitaLinx DL-SE3H1V-C

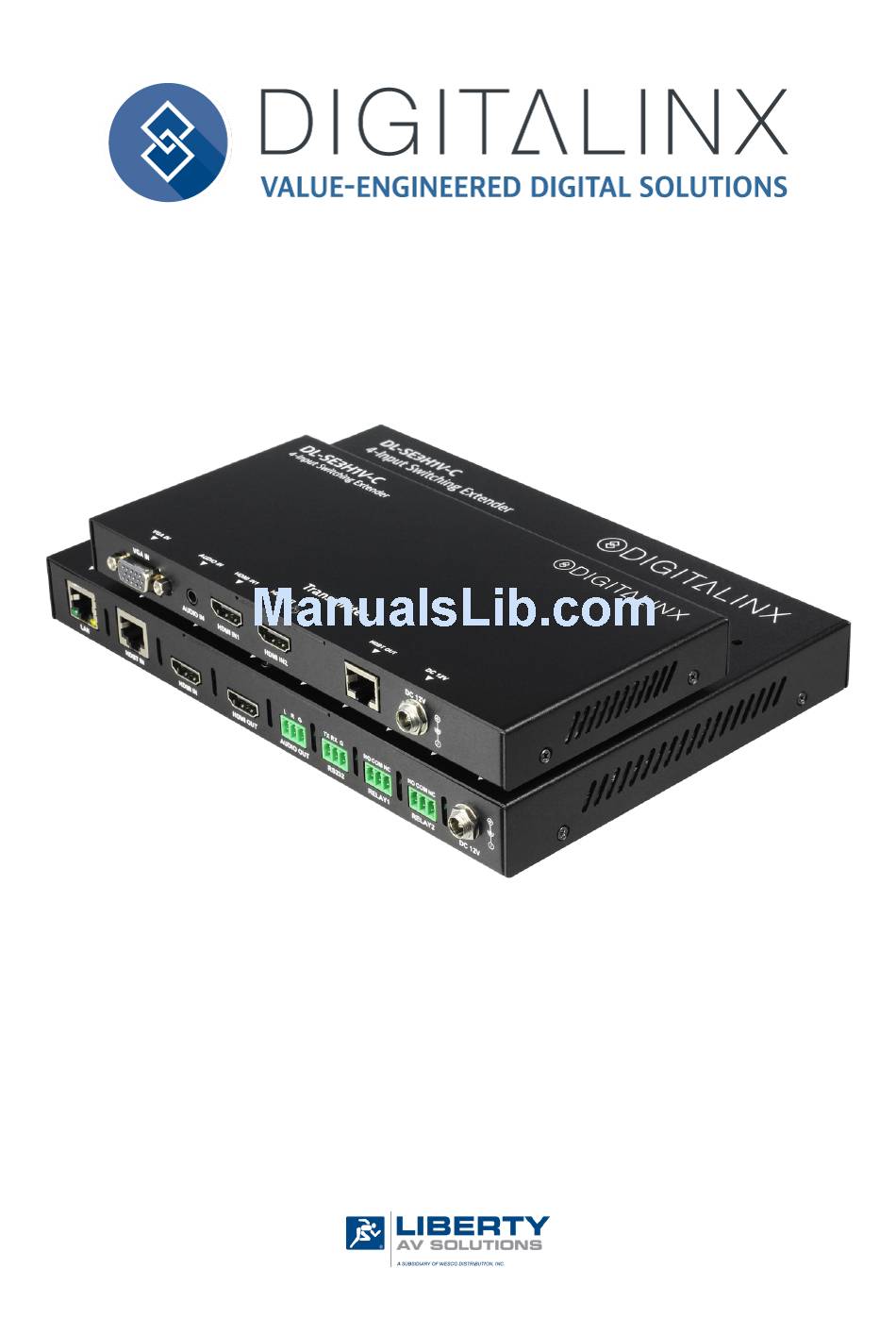

  • Page 1 DL-SE3H1V-C Owners Manual Rev 180115 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80918 Fax: 719-260-0075...
  • Page 2 DL-SE3HV-C Owners Manual...
  • Page 3: Important Safety Instructions

    DL-SE3H1V-C Owners Manual Important Safety Instructions » Please completely read and verify you understand all instructions in this manual before operating this equipment. » Keep these instructions in a safe, accessible place for future reference. » Heed all warnings. » Follow all instructions.
  • Page 4: Table Of Contents

    DL-SE3HV-C Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Transmitter ���������������������������������������������������������������������������������������������������������������������������������������������������� Receiver ��������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Mount the Switcher / Extender �������������������������������������������������������������������������������������������������������������������� Connecting Sources ��������������������������������������������������������������������������������������������������������������������������������������� HDMI Input ............................. VGA Video Input ............................. Connecting a Display �������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Product Overview

    Cat6 cabling. The DL-SE3H1V-C features a total of 3 video inputs on the transmitter; (2) HDMI, (1) VGA with 3.5 Audio and (1) HDMI input located on the receiver for integration of a local HDMI input such as a wireless BYOD / screen share product.
  • Page 6: Front And Rear Panels

    DL-SE3HV-C Owners Manual Front and Rear Panels Transmitter VGA IN - VGA video input FW UPDATE - USB port for transmitter firmware updates AUDIO IN - 3.5mm analog audio input to accompany VGA input HDMI IN1 - HDMI video input #1 STATUS LEDS •...
  • Page 7: Receiver

    DL-SE3H1V-C Owners Manual Receiver 11 12 LAN - RJ45 Telnet control port FW UPDATE - USB port for receiver firmware updates HDBT IN - HDBaseT input to connect to HDBaseT output on transmitter via category cable STATUS LEDS • POWER - When solid, the transmitter is receiving power •...
  • Page 8: Installation Instructions

    Mount the Switcher / Extender At least 2 inches of free air space is required on both sides of the DL-SE3H1V-C for proper side ventilation. Avoid mounting the DL-SE3HV1-C near a power amplifier or any other source of significant heat.
  • Page 9: Connecting A Display

    Pin 8 Brown To ensure proper performance of the DL-SE3H1V-C, it is recommended that you use solid core shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably.
  • Page 10: Connecting Control

    For complete list of control commands see pg13 RS232 and TCP/IP Control RS232 Control Wiring Connect the controller or device RX signal to TX port of the DL-SE3H1V-C receiver. Then connect the controller or device TX signal to the RX port on the DL-SE3H1V-C receiver.
  • Page 11: Application Diagram

    DL-SE3H1V-C Owners Manual Application Diagram LEGACY LAPTOP COMPUTER HDMI CATx AUDIO up to 70m / 230’ RS232 RELAY CONTROL SYSTEM WIRELESS BYOD AUDIO AMP PROJECTOR SCREEN...
  • Page 12: Rs232 And Tcp/Ip Control

    All responses end in a carriage return (hex 0D) and a line feed (hex 0A). = Carriage return (Hex 0D) <CR> = Line Feed (Hex 0A) <LF> Video Input Switching, Configuration Source switching for the DL-SE3H1V-C can be done automatically or manually with the command strings below.. Description Command Example SET AUTOSW_FN {x} {y} Command: SET AUTOSW_FN on tx<CR><LF>...
  • Page 13: Video Output Configuration

    Note: When using the [AutoScaler] setting, the output resolution value will be set according to the connected displays native resolution. For example if connected to a 1080p display, the output resolution of the DL-SE3H1V-C will be set to 1920x1080@60Hz. Description...
  • Page 14: Video Input Hdcp Compliance

    DL-SE3H1V-C Owners Manual Video Input HDCP Compliance Description Command Example SET HDCP_S {in} {x} Command: SET HDCP_S hdmi1_tx on<CR><LF> Enable / Disable HDCP Input Compliance {in} = [hdmi1_tx] Return: HDCP_S SET HDMI1_TX ON TX<CR><LF> [hdmi2_tx] [vga_tx] [hdbt_rx] [hdmi_rx] {x} = [on, off] GET HDCP_S {in} Command: GET HDCP_S hdmi1_tx<CR><LF>...
  • Page 15: Cec Setup And Control

    CEC Setup and Control A CEC enabled display or monitors ON and OFF status can be controlled by the DL-SE3H1V-C via HDMI by using the commands strings below. CEC ON command can also be automatically sent to a display when a source is connected to the DL-SE3H1V-C.
  • Page 16: Rs232 Port Control / Configuration

    When using auto RS232 on / off control of a display, use the RS232 delay commands to determine the time when the display will be turned OFF when no video signals are present in the DL-SE3H1V-C. For example if the delay time is set to 3 minutes, the RS232 enabled display will turn off when there is no present video signal in the switcher / extender for 3 minutes.
  • Page 17 DL-SE3H1V-C Owners Manual RS232 Port Control / Configuration..continued Description Command Example SET UART_STR {p} {s} Command: SET UART_STR on xxxx<CR><LF> Set RS232 Display On / Off ASCII String (Up to 64 Bytes) {p} = [on, off] Return: UART_STR SET ON XXXX<CR><LF>...
  • Page 18 DL-SE3H1V-C Owners Manual RS232 Port Control / Configuration..continued Description Command Example SET UARTPWR_FN all {p} rx Command: Set Auto Display On / Off with stored RS232 {p} = [on, off] SET UARTPWR_FN all on rx<CR><LF> commands Return: UARTPWR_FN SET ALL ON RX<CR><LF>...
  • Page 19: Relay Port Control / Configuration

    DL-SE3H1V-C Owners Manual Relay Port Control / Configuration Relay ports can be set to either momentary or latching operation modes. When setting relay mode to momentary, use the [ command to set the relay power SET MOMENT_T {t} rx] time settings in seconds.
  • Page 20: Ip Address Configuration

    DL-SE3H1V-C Owners Manual IP Address Configuration Description Command SET IPADDR STATIC ip4addr {ip} netmask {sub} Set Static IP Address and Subnet {ip} = [IP address; example 192.168.10.1] {sub} = [Subnet; example 255.255.255.0] EXAMPLE: Command: SET IPADDR STATIC ip4addr 192.168.10.1 netmask 255.255.255.0<CR><LF>...
  • Page 21: System Power / Factory Default

    DL-SE3H1V-C Owners Manual System Power / Factory Default Description Command Response SET STANDBY {x} {y} Command: SET STANDBY off all<CR><LF> Enter Standby Mode {x} = [on, off] Return: STANDBY SET OFF RX<CR><LF> {y} = [tx,rx,all] STANDBY SET OFF TX<CR><LF> GET STANDBY {y} Command: SET STANDBY all<CR><LF>...
  • Page 22: Technical Specifications

    DL-SE3H1V-C Owners Manual Technical Specifications VIDEO Video Inputs (2) HDMI transmitter; (1) VGA transmitter; (1) HDMI receiver; Video Input Connector (3) HDMI type A; (1) VGA female 15 pin Input Video Signal HDMI, VGA Video Output (1) HDMI Video Output Connector...
  • Page 23 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.intelix.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
