Owner's Manual

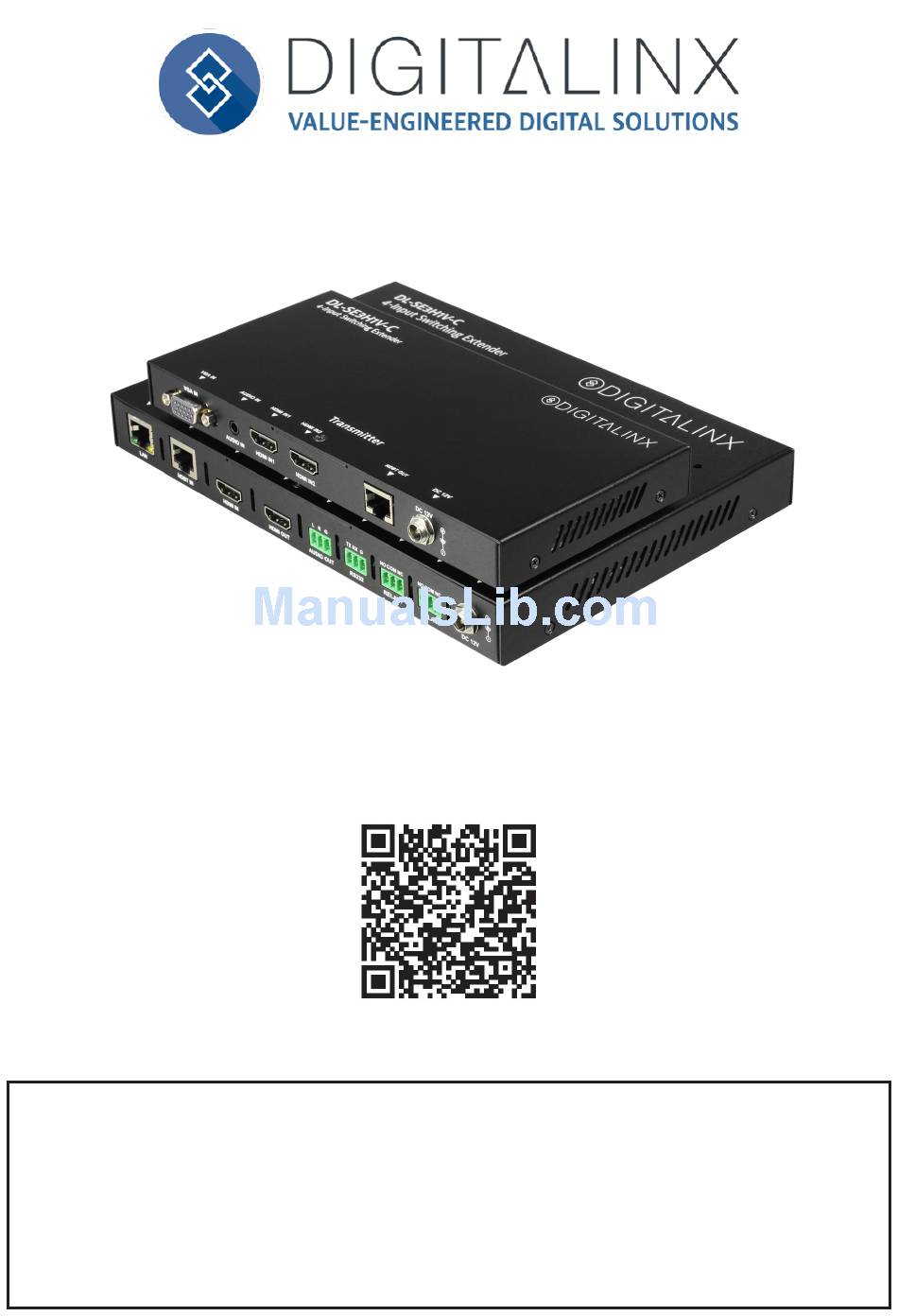

DL-SE3H1V-C Quick Install Guide
For complete owners manual and list of commands, go to www.libav.com or use a
QR reader to access the manual via QR code below.
Important notice:
• Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered off during installation.
• Do not connect the device to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
This guide is for quick installation only.
Scan QR Code with your Smart-phone or Tablet
Advertisement
Table of Contents
Related Manuals for DigitaLinx DL-SE3H1V-C
Summary of Contents for DigitaLinx DL-SE3H1V-C
- Page 1 DL-SE3H1V-C Quick Install Guide This guide is for quick installation only. For complete owners manual and list of commands, go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important notice: •...
-
Page 2: Product Overview
Product Overview The Digitalinx DL-SE3H1V-C is a 4K compatible, 4 input multi format A/V auto switcher, extender and video scaler system that supports long distance transport of HDMI between transmitter and receiver up to 70 meters / 230’ using Cat6 cabling. - Page 3 Transmitter View VGA IN - VGA video input FW UPDATE - USB port for transmitter firmware updates AUDIO IN - 3.5mm analog audio input to accompany VGA input HDMI IN1 - HDMI video input #1 STATUS LEDS • POWER - When solid, the transmitter is receiving power •...
- Page 4 Receiver View 11 12 LAN - RJ45 Telnet control port FW UPDATE - USB port for receiver firmware updates HDBT IN - HDBaseT input to connect to HDBaseT output on transmitter via category cable STATUS LEDS • POWER - When solid, the transmitter is receiving power •...
- Page 5 (optional) 9. Connect LAN port to control LAN for telnet system control (optional) Note: A complete list of command sets are located on the DL-SE3H1V-C product page online at www.libav.com 10. Connect the included power supply to the receiver and lock the power supply to the power connector by twisting the locking collar clockwise.
-
Page 6: Cabling Requirements
Cabling Requirements To ensure proper performance of the DL-SE3H1V-C, it is recommended that you use solid core shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably. When using shielded category cabling ALWAYS... -
Page 7: Technical Specifications
Technical Specifications VIDEO Video Inputs (2) HDMI transmitter; (1) VGA transmitter; (1) HDMI receiver; Video Input Connector (3) HDMI type A; (1) VGA female 15 pin Input Video Signal HDMI, VGA Video Output (1) HDMI Video Output Connector (1) HDMI type A Output Video Signal HDMI (receiver);... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8898 or email us at supportlibav@libav.com www.intelix.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
