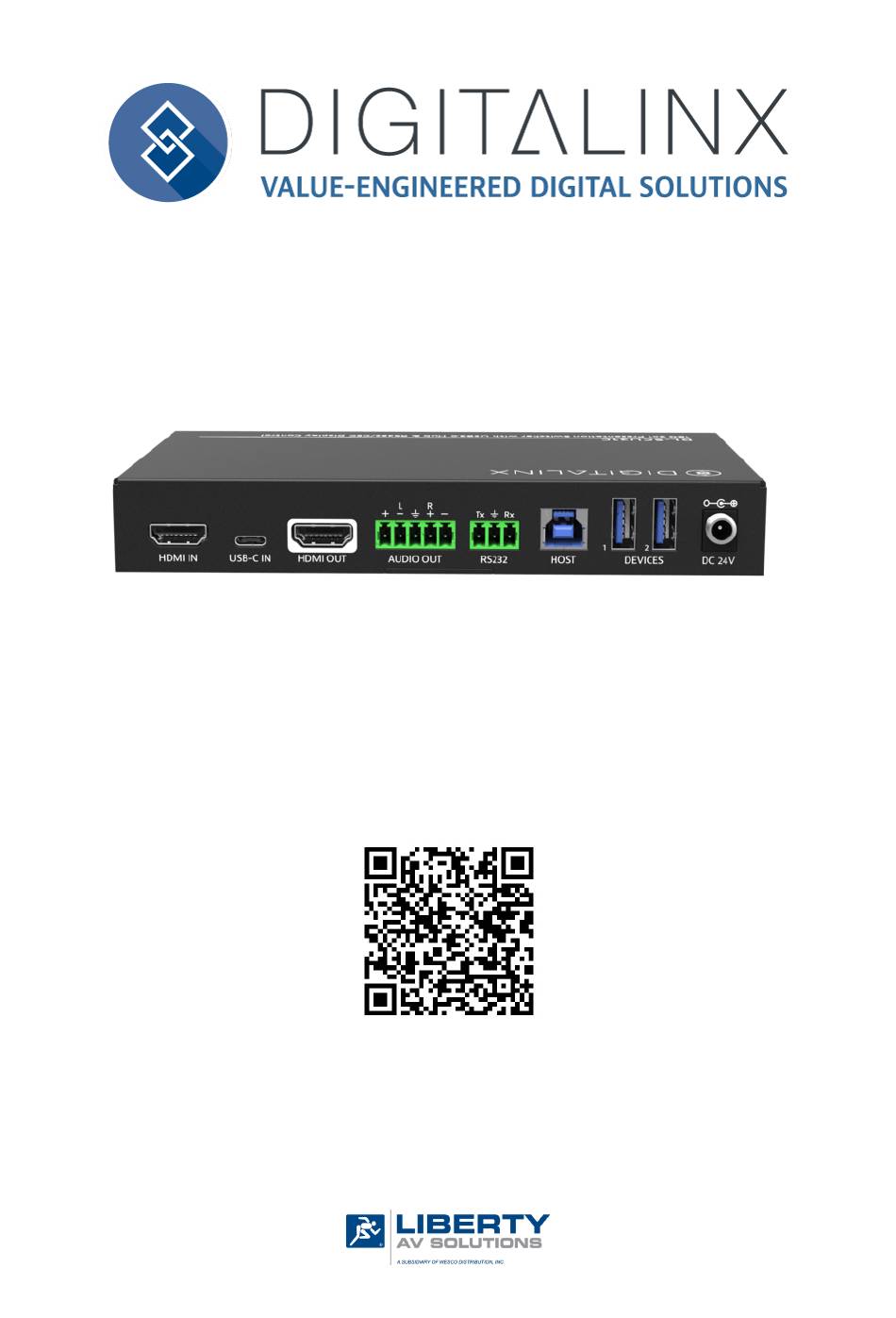

DL-SCU21C Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 181203
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Table of Contents
Related Manuals for DigitaLinx DL-SCU21C
Summary of Contents for DigitaLinx DL-SCU21C
- Page 1 DL-SCU21C Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 181203...
-
Page 3: Product Overview
DL-SCU21C Quick Guide Product Overview The DL-SCU21C is a 2x1 HDMI 2.0b auto switcher featuring one HDMI input, one USB-C input and one HDMI output. The USB-C input supports video, data (USB host) and power charging up to 40w. There is a built in 2 port USB 3.0 hub that is backwards compatible with USB 2.0 and USB 1.1 formats. -
Page 4: Front Panel View
DL-SCU21C Quick Guide Front Panel View 1. POWER LED - Illuminates solid RED when power is properly applied 2. INPUT LEDs: • HDMI - Illuminates solid GREEN when input is selected in auto switch mode, illuminates orange when input is selected in manual switch mode •... - Page 5 DL-SCU21C Quick Guide Back Panel View 1. HDMI IN - HDMI input port for connecting HDMI source 2. USB-C IN - USB-C input port for connecting source; USB-C port supports video, data (USB Host) and power charging. 3. HDMI OUT - HDMI output for connecting to TV display 4.
- Page 6 Connectivity Instructions 1. Verify all components included with the DL-SCU21C set are present before installation. 2. If the DL-SCU21C is going to be permanently mounted to a surface, attach the included mounting brackets with the supplied screws. 3. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions.
-
Page 7: Technical Specifications
DL-SCU21C Quick Guide Technical Specifications Video Video Inputs One (1) HDMI, (1) USB-C Video Input Connector (1) HDMI type A, (1) USB-C Input Video Signal HDMI for HDMI input, ALT-DP Mode for USB-C Video Output (1) HDMI Video Output Connector... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
