DL-AS61 Installation Guide
The DigitaLinx DL-AS61 is a compact multi-format switcher with support for video
resolutions up to UHD (3840x2160). With multiple built-in EDID settings, including
an EDID pass-through option, the highest quality digital video signal will be routed
directly to the display. When a VGA video signal is connected, the video signal will be
scaled up to 1920x1200.
The DL-AS61 supports stereo and multichannel audio on the HDMI inputs. The analog
audio paired with the VGA inputs is embedded into the digital video stream. In addition
to the audio embedded in the HDMI output stream, which may be muted, the audio is
simultaneously de-embedded to a digital optical audio output and two analog audio
outputs: 3.5mm TRS and 3-pin removable terminal block.
The DL-AS61 features multiple methods of control. When set to Auto, the switcher
will automatically switch to the newest source device added to the DL-AS61; when the
active source is removed, the DL-AS61 will switch to the lowest numbered input. The
DL-AS61 may be manually controlled by switching via the front panel, IR or RS232.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DigitaLinx DL-AS61
Summary of Contents for DigitaLinx DL-AS61
- Page 1 The DL-AS61 features multiple methods of control. When set to Auto, the switcher will automatically switch to the newest source device added to the DL-AS61; when the active source is removed, the DL-AS61 will switch to the lowest numbered input. The...
-
Page 2: Front Panel

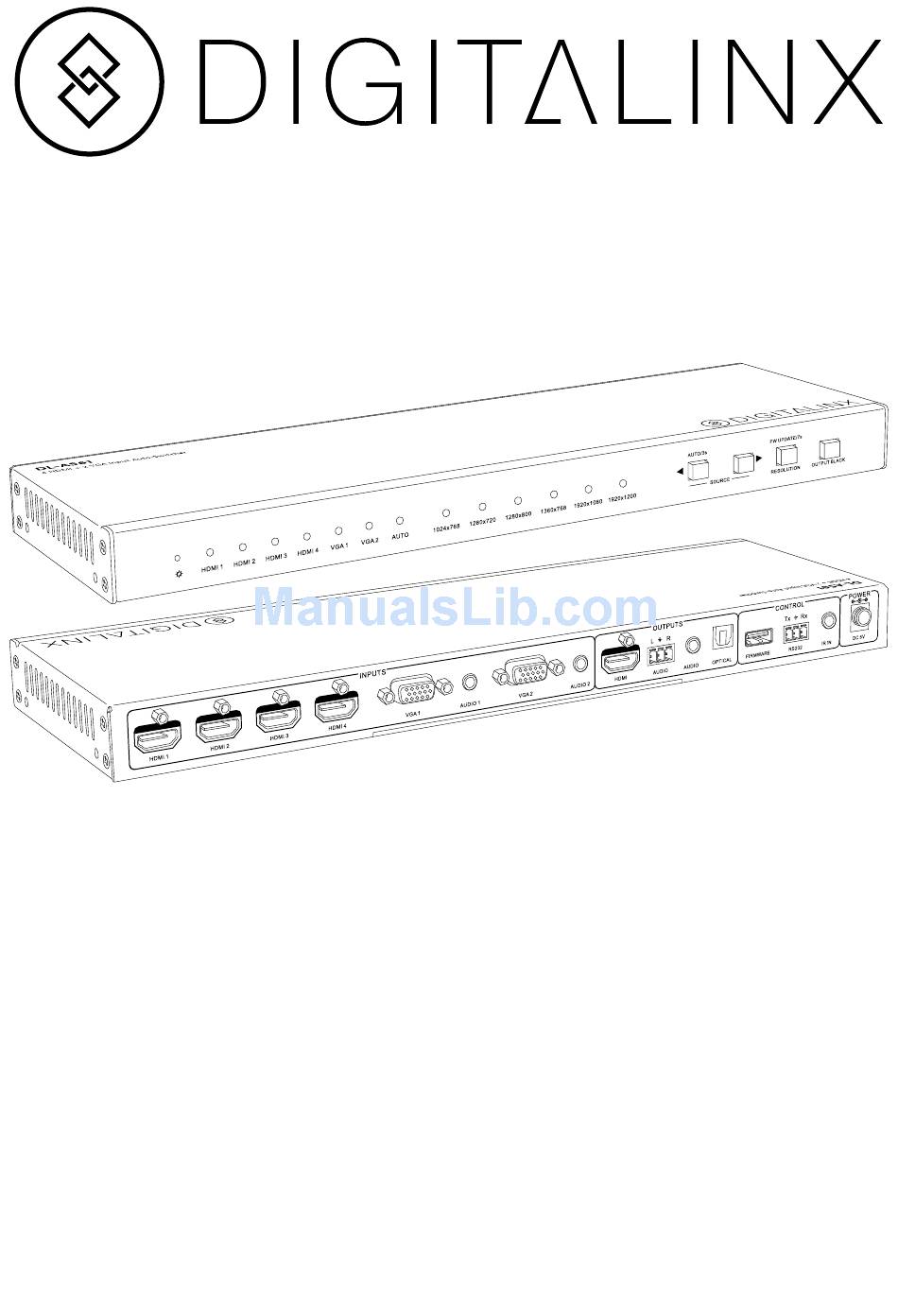

Front Panel Power LED — Off when there is no power to the device — Green when the device is powered on — Red when the device is in standby mode Input LEDs — Green for the selected video source Auto-Switching LED —... -
Page 3: Rear Panel
Rear Panel HDMI Inputs VGA with Analog Audio Inputs HDMI Output with Embedded Audio Audio Outputs — Audio outputs are not affected when in output black mode Firmware Update Port RS232 Control Port IR In Port 5V DC Power Input IR Remote Standby Button INPUT SOURCE... -
Page 4: Installation Instructions
11. Power on all audio/video devices. Front Panel Control Manual Switching: When the DL-AS61 is in manual switching mode, the Auto Mode LED will be dark. To change inputs, press either the previous or next button. Automatic Switching: To enable automatic switching, press the Previous/Auto button for three seconds. The Auto Mode LED will light. -
Page 5: Rs232 Control
VGA EDID The EDID for the VGA inputs is permanently set to 1360x768. Other resolutions will transmit properly through the DL-AS61. The built-in scaler will ensure consistent image is present between analog and digital sources. VGA Output Scaling... -
Page 6: Hdmi Output
VGA Adjustments Description Command Response 502xx% Brightness: xx Set the VGA input brightness to xx (xx ranges from 0 to 99) 503xx% Contrast: xx Set the VGA input contrast to xx (xx ranges from 0 to 99) 504xx% Saturation: xx Set the VGA input saturation to xx (xx ranges from 0 to 99) 505xx% Sharpness: xx... -
Page 7: Fcc Statement
System Query Messages Description Command Response 50631% Input: xx Get the input source 50632% Resolution: xx Get the output resolution 50633% Picture Mode: xx Get the image mode 50634% Sound Mode: Get the audio mode 50635% Aspect Ratio: xx Get the image aspect ratio 50636% Brightness: xx Get the brightness... -
Page 8: Technical Specifications
Technical Specifications Supported Audio, Video and Control Maximum Video Compatibility Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k (UHD) VGA Scaling Resolutions 1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1920x1080@60Hz, 1920x1200@60Hz Video Compliance HDMI, HDCP HDMI EDID Pass-through from Display, 1080p/PCM 2ch, 1080p/PCM 6ch, 1080p3D/PCM 6ch, 1080i/PCM 2 ch, 4k@30/PCM 2ch VGA EDID 1360x768...
