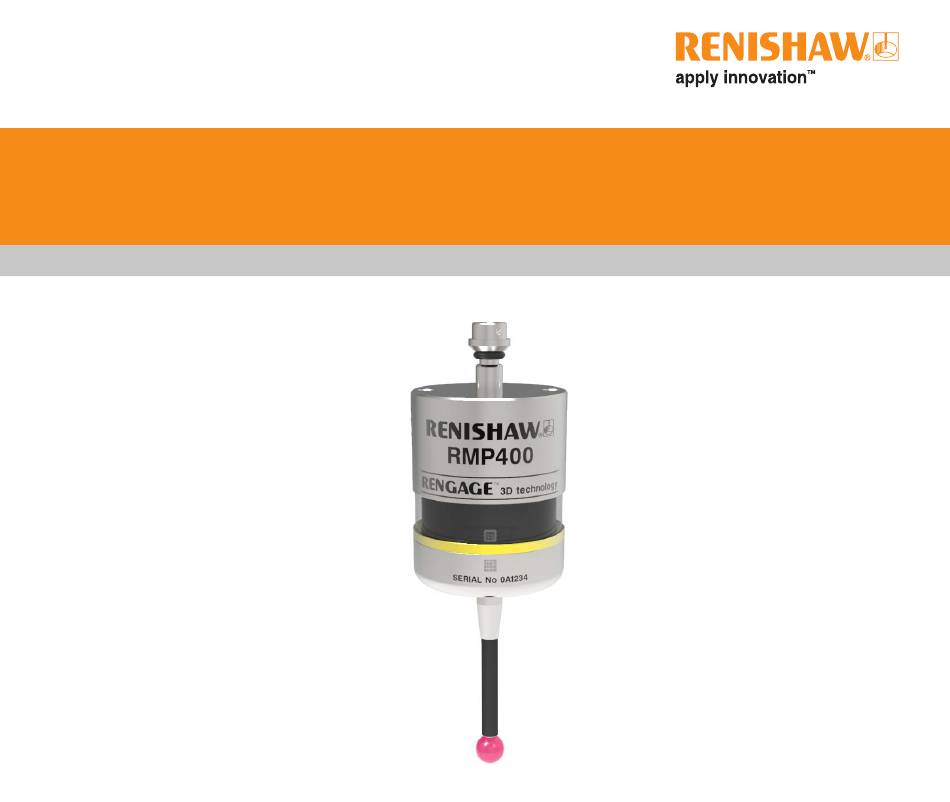

  • Page 1 Quick-start guide H-6570-8500-02-A RMP400...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/rmp400. Für dieses Produkt stehen weitere Informationen zur Verfügung. Scannen Sie dazu den Barcode oder besuchen Sie www.renishaw.de/rmp400. Para acceder a las publicaciones sobre este producto escanee el código de barras o visite www.renishaw.es/rmp400.
  • Page 3 Dostęp do dokumentacji tego produktu można uzyskać, skanując kod kreskowy lub odwiedzając witrynę www.renishaw.pl/rmp400. Publikace pro tento produkt jsou k dispozici po naskenování QR kódu nebo na stránce www.renishaw.cz/rmp400. Если вас интересует информация об этом продукте, отсканируйте штрих-код или посетите сайт...
  • Page 4 This page is intentionally left blank.

  • Page 5: Intended Use

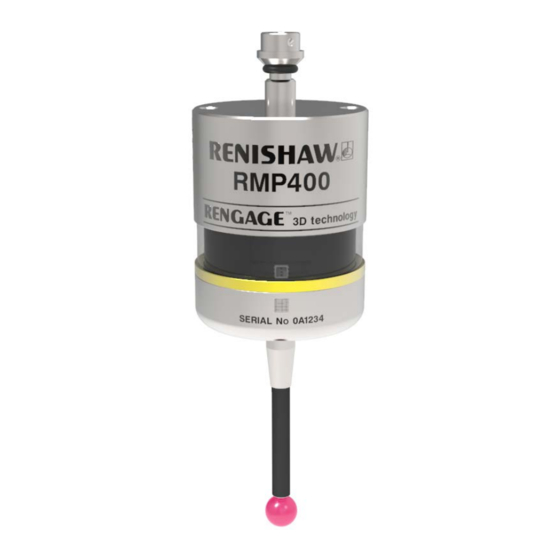

    Intended use The RMP400 is a radio spindle probe that enables automated workpiece inspection and job set-up on multi-tasking machines, machining centres and gantry machining centres. Safety Information to the user This product is supplied with non-rechargeable lithium metal batteries. Refer to the battery manufacturer’s literature for specific battery operating, safety and disposal guidelines.
  • Page 6 Information to the equipment installer All Renishaw equipment is designed to comply with the relevant EU and FCC regulatory requirements. It is the responsibility of the equipment installer to ensure that the following guidelines are adhered to, in order for the product to function in accordance with these regulations: •...
  • Page 7 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 2 ×  Saft Dubilier LS 14250 SB-AA02 Tadiran SL-750 Maxell ER3S Xeno Sanyo XL-050F CR 14250 SE Tadiran SL-350, SL-550, TL-4902, TL-5902, TL-2150, TL-5101 Varta CR ½ AA...

  • Page 8: Fitting The Stylus

    Fitting the stylus 1.8 Nm – 2.2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707...
  • Page 9 CAUTION Remove the battery isolation device from the battery compartment before use. Take care not to short the battery contacts ¬ as this may be a fire hazard. Ensure the contact strips are located securely. ¬...
  • Page 10 Configuring the probe The following sections describe the process of reviewing and configuring the probe settings. The Trigger Logic™ app simplifies this process with clear, interactive instructions and informative videos. The app can also be used with radio probes for probe acquisition.
  • Page 11 This page is intentionally left blank.

  • Page 12: Reviewing The Probe Settings

    Reviewing the probe settings Key to the symbols LED short flash > 5 s LED long flash × LED check Switch-on method (omitted if “Multiple probe mode” was selected) Radio on Spin on Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off...
  • Page 13 Enhanced trigger filter setting and auto-reset facility Auto reset off Auto reset off Auto reset on Auto reset on Auto reset off Trigger filter on Trigger filter on Trigger filter on Trigger filter on Trigger Filter 8 ms 16 ms 8 ms 16 ms Hibernation mode setting (only for “Radio on”)

  • Page 14: Multiple Probe Mode Settings

    Multiple probe mode settings Multiple probe mode Mode off Mode on Machine 1 Machine 2 Machine 3 Machine 4 Machine 5 Machine 6 Machine 7 Machine 8 Machine 9 Machine 10 Machine 11 Machine 12 Machine 13 Machine 14 Machine 15 Machine 16 Return to “Mode off”...
  • Page 15 This page is intentionally left blank.
  • Page 16 Probe partnering function > 5 s LED check × Key to the symbols LED short flash LED long flash Deflect the stylus for less than 4 seconds to move to the next menu option. All probe settings will be shown, ending with To exit, leave the stylus untouched for more than “Battery status”...
  • Page 17 Whilst the “Battery status” is being displayed, deflect and release the stylus to enter “Acquisition mode off”. Probe status will flash red to acknowledge this. Battery status Battery good Battery low  At this point turn on either the RMI or RMI-Q After 8 Acquisition mode seconds...
  • Page 18 This page is intentionally left blank.
  • Page 19 Placing the probe in configuration mode > 5 s LED check  × Deflect the stylus and hold it deflected until after the battery Key to the symbols status has been displayed at the end of the review sequence. LED short flash LED long flash Deflect the stylus for less than 4 seconds to move to the next menu...

  • Page 20: Changing The Probe Settings

    Changing the probe settings Switch-on method (omitted if “Multiple probe mode” was selected) Spin on Radio on Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s 33 s 134 s Enhanced trigger filter setting and auto-reset facility Auto reset off Auto reset off Auto reset on...
  • Page 21 Hibernation mode setting (“Radio on” only) 30 s Stop triggering here, unless “Multiple probe mode” is required, in which case deflect the stylus for more than 4 seconds. Multiple probe mode (omitted for “Radio on”) (see “Multiple probe mode settings” to view all 16 choices) Mode on Mode off Machine 1...

  • Page 22: Rmp400 - Rmi Partnership

    RMP400 – RMI partnership Acquisition mode Acquisition mode off Switch on the RMI  SIGNAL LED RMI in “Acquisition mode” Deflect the stylus to select “Acquisition mode on”. Ensure this is done within 8 seconds of the RMI signal LED flashing green.
  • Page 23 SIGNAL LED  New partner RMP acquired The probe is in standby and the system is ready for use. × > 20 s NOTE: Refer to the RMI radio machine interface installation guide (Renishaw part no. H-4113-8554) when partnering the RMP400.

  • Page 24: Rmp400 - Rmi-Q Partnership

    RMP400 – RMI-Q partnership Acquisition mode Acquisition mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in “Acquisition RMI-Q in “Acquisition mode” with empty probe mode” with full probe location location Deflect the stylus to select “Acquisition mode on”.
  • Page 25 Displayed for 5 seconds The probe is in standby and the system is ready for use. NOTE: Refer to the RMI-Q radio machine interface installation guide (Renishaw part no. H-5687-8504) when partnering up to four radio × probes. > 20 s...
  • Page 26 Mounting the probe on a shank × 2 2 mm A/F × 2 2 mm A/F × 4 × 4...
  • Page 27 × 2 0.5 Nm – 1.5 Nm (0.4 lbf.ft – 1.1 lbf.ft)

  • Page 28: Stylus On-Centre Adjustment

    Stylus on-centre adjustment × 4 360° ±10 µm...
  • Page 29 × 2 1.5 Nm – 2.2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360° ±10 µm...
  • Page 30 × 4 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360° ±2.5 µm...
  • Page 31 Cleaning Use a clean cloth.
  • Page 32 RMI-Q visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 33 RMI visual diagnostics KEY TO THE SYMBOLS LOW BATTERY/START LED SIGNAL LED Continuously on Battery low Excellent communications Flashing M-code start/ Good stop in progress communications Battery is low Poor and M-code communications start/stop in progress No probes operating Battery is okay and no M-code In acquisition start/stop in...
  • Page 34 This page is intentionally left blank.

  • Page 35: Warranty

    Renishaw office. Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty.

  • Page 36: Declaration Of Conformity

    Declaration of conformity Renishaw plc hereby declares that the RMP400 is in compliance with the essential requirements and other relevant provisions of: • the applicable EU directives • the relevant statutory instruments under UK law The full text of the declaration of conformity is available at: www.renishaw.com/mtpdoc...

  • Page 37: Disposal Of Batteries

    REACH regulation Information required by Article 33(1) of Regulation (EC) No 1907/2006 (“REACH”) relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH China RoHS For more information on China RoHS, visit: www.renishaw.com/ChinaRoHS...

  • Page 38: Fcc Information To User (Usa Only)

    2. This device must accept any interference received, including interference that may cause undesired operation. 47 CFR Section 15.21 The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user’s authority to operate the equipment.
  • Page 39 Patents Features of RMP400 and features of similar products are the subject of one or more of the following patents and/or patent applications: CN 100416216 EP 1425550 IN 215787 US 6941671 CN 100466003 EP 1457786 IN 234921 US 7145468 IN 305341...
  • Page 40 雷尼绍（上海）贸易有限公司 中国上海市静安区江场三路 288 号 18 幢楼 1 楼 200436 +86 21 6180 6416 +86 21 6180 6418 shanghai@renishaw.com www.renishaw.com.cn 安全须知 用户须知 本产品随附非充电式锂金属电池。有关具体的电池工作、安全性和处置指导原则，请参阅电池制造商提供的资料。 • •请勿尝试给电池充电。 • •请仅使用指定类型的电池进行更换。 • •请勿在本产品中将新旧电池混用。 • •请勿在本产品中混用不同类型或品牌的电池。 • •请按照本手册中的说明和产品上的指示，确保所有电池安装的正负极方向正确。 • •请勿将电池存放在阳光直射的地方。 • •请勿使电池接触水。 • •请勿将电池加热或弃入火中。 • •请避免将电池强制放电。...
  • Page 41 在运输电池或包含该等电池的产品时，请确保符合国际和国家电池运输条例。锂金属电池在运输中被归类为危险品，需要在发运前按照《 危险品运输规则》 (DGR) 的规定粘贴标签并包装。为了减少运输延期的风险，无论出于何种原因，若您需要将本产品返回雷尼绍，请勿包 含任何电池。 在所有涉及使用机床的应用中，建议采取保护眼睛的措施。 RMP400 有一个玻璃窗口。如果玻璃破碎，请务必小心，以免受伤。 机床供应商 / 安装商须知 机床制造商有责任确保用户了解操作中存在的任何危险，包括雷尼绍产品说明书中所述的危险，并应确保提供充分的防护装置和安全 联动装置。 如果测头测量失败，则有误发测头已复位状态信号的可能。切勿单凭测头信号来停止机床运动。 设备安装商须知 雷尼绍所有设备的设计均符合相关的 EU 和 FCC 监管要求。为使产品按照这些规定工作，设备安装商有责任保证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如变压器、伺服系统驱动装置等； • 所有0伏/接地连接都应当连接到机床接地终端上（“接地终端”是所有设备地线和屏蔽电缆的单点回路）。这一点非常重要，不遵守 此规定会造成接地之间存在电位差； • 所有屏蔽装置都必须按使用说明书中所述进行连接； • 电缆线路不得与电机电源电缆等高电流源并行或靠近高速数据传输线； • 电缆长度应始终保持最短。 设备操作 如果设备使用方式与制造商要求的方式不符，设备提供的保护功能可能会减弱。...

  • Page 42: Radio Approvals

    Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados. Canada: IC: 3928A-RMP400 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 43 Malaysia: RAVG/22Y/0818/S(18-3048) Mexico: ITF#RCPRERM18-1539 “La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.”...
  • Page 44 Taiwan: CCAK18LP3120T0 警語 經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停用,並改善至無干擾時方得 繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾。 USA: FCC ID: KQGRMP400 Argentina Iceland Indonesia Liechtenstein Montenegro Norway Philippines Russia Switzerland Turkey Exempt: China Thailand Vietnam...
  • Page 46 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-6570-8500-02*...
