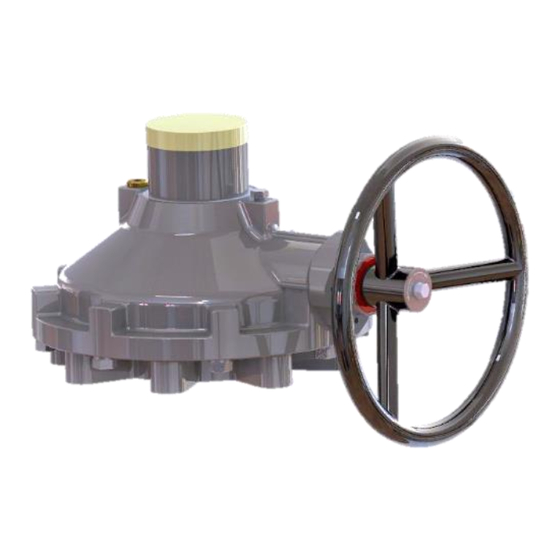

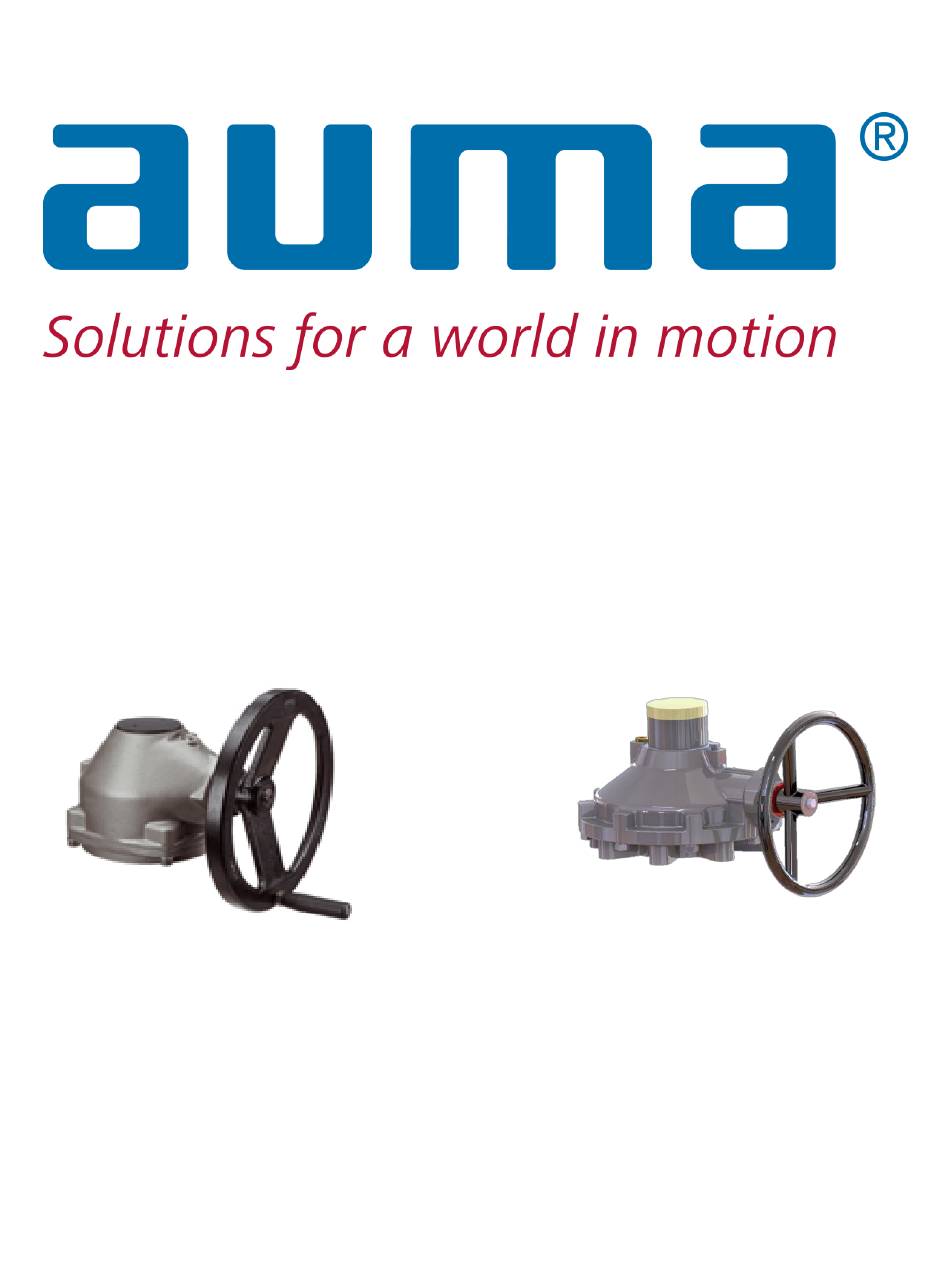

- Page 1 Operation and Maintenance Manual GK10.1 and ABG 10.2-16.2 Bevel Gears ABG10.2 GK10.1...
-
Page 2: Table Of Contents
Table of Contents 1. Safety instructions ..............................3 Range of application .............................. 3 Maintenance ................................3 Warnings and notes ............................... 3 2. Transport, storage and packaging ........................4 Transport .................................. 4 Storage ..................................4 Packaging ................................4 3. Fitting the hand wheel ............................4 4. -
Page 3: Safety Instructions
1. Safety instructions Range of application AUMA bevel gearboxes GK 10.1, ABG 10.2 – ABG16.2 operate valves (e.g. gate valves and globe valves). These gearboxes are designed for manual operation. For other applications, please consult AUMA. The manufacturer is not liable for any possible damage resulting from use in other than the designated applications. -
Page 4: Transport, Storage And Packaging
2. Transport, storage and packaging Transport Transport to place of installation in sturdy packing. Storage Store in well-ventilated, dry room. Protect against floor dampness by storage on a shelf or on a wooden pallet. Cover to protect against dust and dirt. ... -
Page 5: Mounting To Valve
4. Mounting to valve The gearboxes can be operated in any mounting position. Prior to mounting, the gearbox must be checked for damage. Damaged parts must be replaced by original spare parts. After mounting to valve, touch up any possible damage to paint finish. ... -
Page 6: Abg.2 -The Output Drive Is Removed Through The Top Of The Abg Bevel Gearbox
Lift stem nut (2) out of the A drive housing and remove upper and lower thrust races and bearings (03/04) Machine the A drive stem nut according to valve stem requirements. Drill and bore stem nut and cut thread. When fixing in the chuck, make sure stem nut runs true! ... -
Page 7: Operation Of Valves
Clockwise rotation at input shaft results in clockwise rotation at output drive Enclosure protection IP67 Inspection AUMA gearboxes in enclosure protection IP 67 undergo 100% testing for tightness in the factory. The enclosure protection IP 67 refers to the interior of the gearbox. - Page 8 Seals: The seals must be changed when changing the grease. Seal kits may be purchased from AUMA. Grease: Grease and seal change is recommended after the following operation times: If operated seldom, after 10 – 12 years ...
-
Page 9: Disposal And Recycling
Original paint in small quantities can be supplied by AUMA. 7. Disposal and recycling AUMA gearboxes have an extremely long lifetime. However, they have to be replaced at one point in time. AUMA recommends the following disposal methods: Our gearboxes have a modular design and may therefore easily be disassembled, separated and sorted according to materials, i.e.:... -
Page 10: Spare Parts
8. Spare parts 8.1 GK10.1 Parts list Part No. Description Part No. Description Part No. Description Housing Circlip 4.12 Stem nut Bearing flange Radial seal 4.13 Bearing lock nut Bevel pinion shaft Radial seal 44.01 Set screw Bevel wheel O-Ring 44.02 Grease nipple Bushing... -
Page 11: Abg Parts List
8.2 ABG Parts list Page 11 of 12... - Page 12 Part No. Description Part No. Description Housing Stem protection tube Bevel assembly V seal Axial Needle Roller Bearing Lid with O ring Bevel sleeve Not used Output drive 102.0 Stem nut Mounting flange 103.0 Ring nut Bearing with circlip 104.0 Eye bolt ( except ABG10.2) Input shaft Seal kit...
