User connection
The connection terminals of the power cables are shown in Figure 8-4.

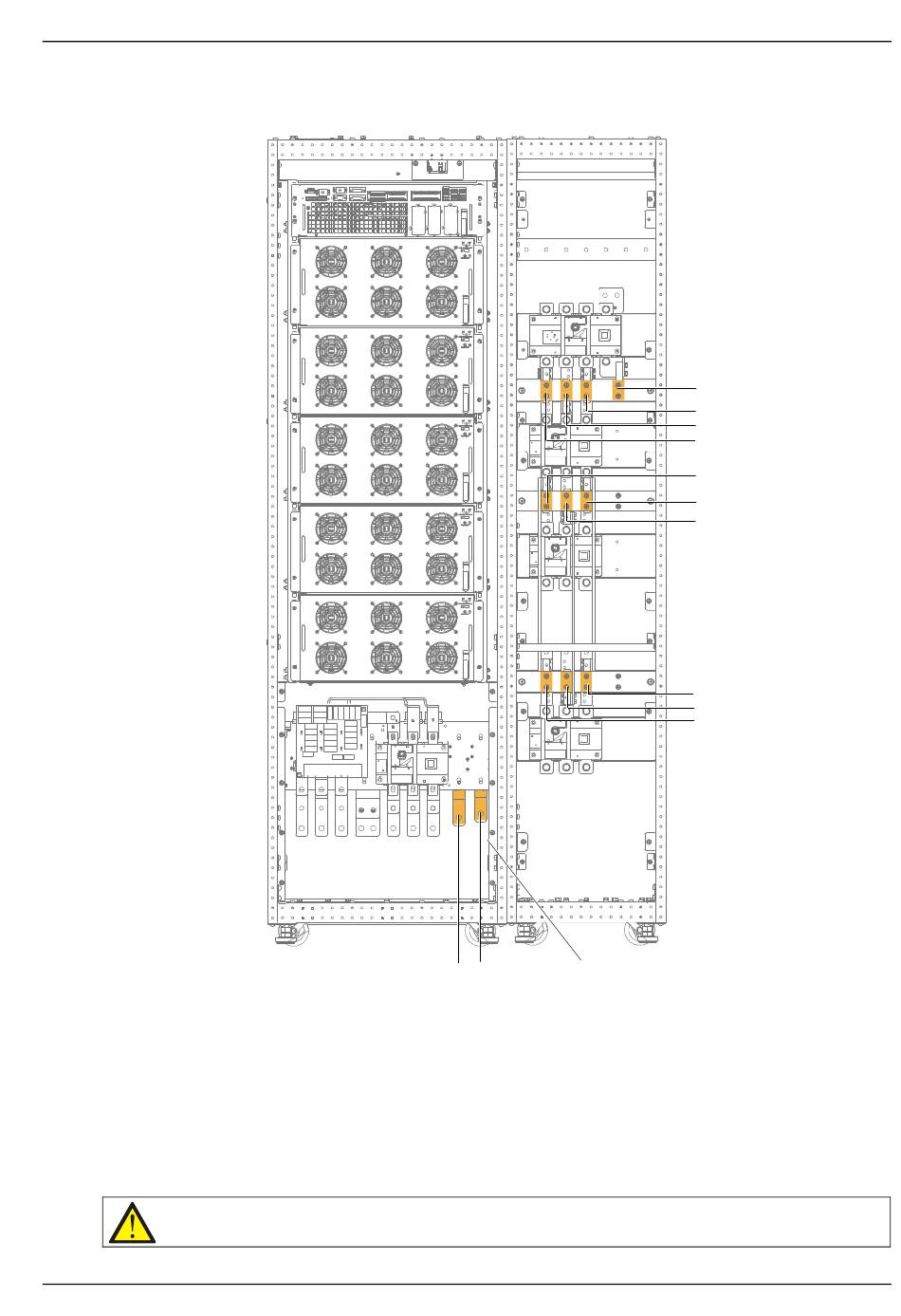

Figure 8-4 Connection terminals of the power cables of 160kVA~200kVA (with optional switch cabinet)
Note
BAT+ BAT-
Note:
1. BAT+, BAT-: Battery input terminals
2. mA, mB, mC: Mains input terminals
3. bA, bB, bC: Bypass input terminals
4. oA, oB, oC: Output terminals
5. PE: Protective earth
6. N: Neutral line terminal of input, output and battery
Liebert EXM 80kVA ~ 200kVA UPS User Manual
Chapter 8 Options
N
oC
oB
oA
bA
bC
bB
mC
mB
mA
PE
113
