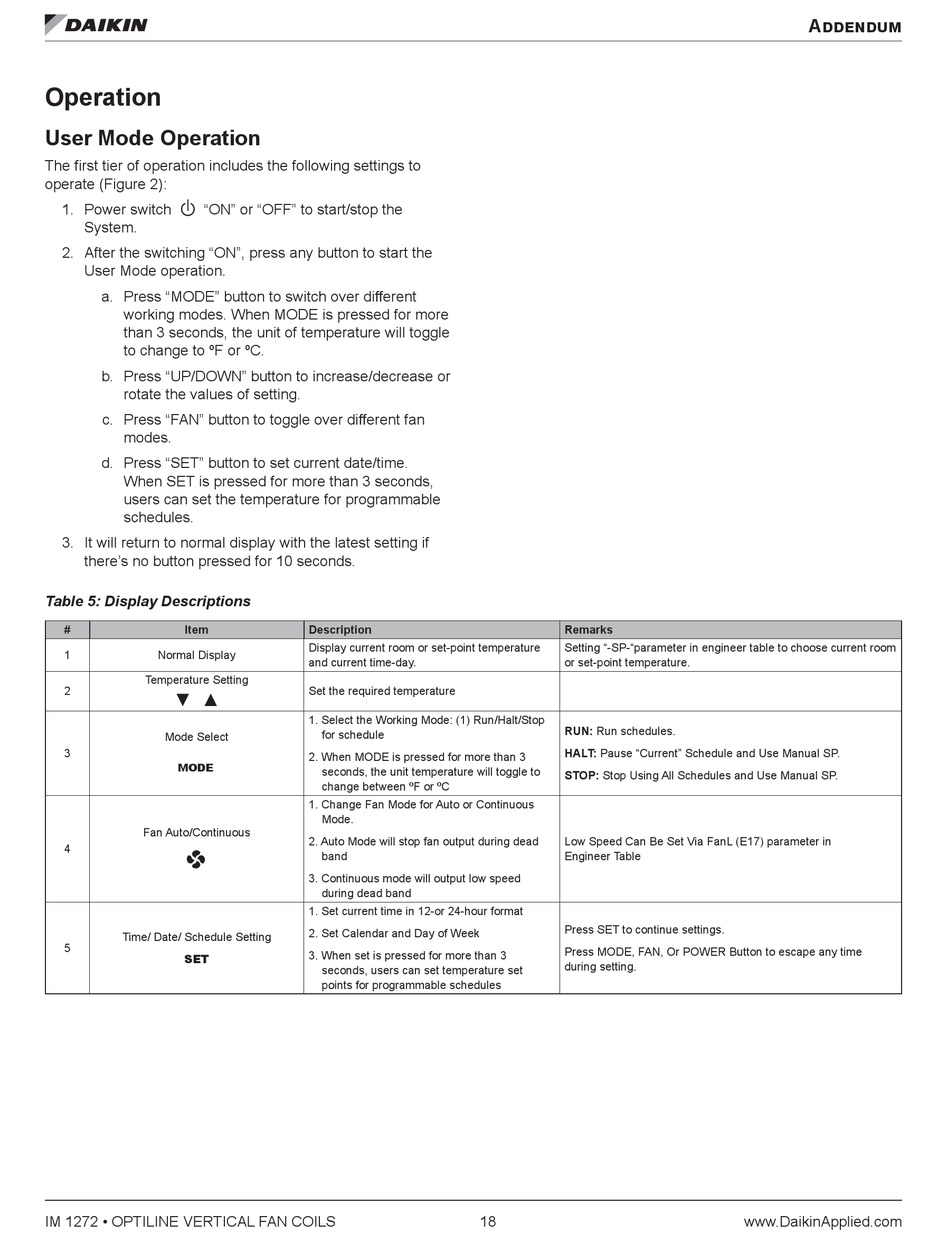

Daikin OptiLine FSG Installation, Operation And Maintenance Manual page 18

Operation
User Mode Operation
MODE
The first tier of operation includes the following settings to
operate (Figure 2):
1. Power switch "ON" or "OFF" to start/stop the
System.
2. After the switching "ON", press any button to start the
User Mode operation.
a. Press "MODE" button to switch over different
working modes. When MODE is pressed for more
than 3 seconds, the unit of temperature will toggle
to change to ºF or ºC.
b. Press "UP/DOWN" button to increase/decrease or
rotate the values of setting.
c. Press "FAN" button to toggle over different fan
modes.
d. Press "SET" button to set current date/time.
When SET is pressed for more than 3 seconds,
users can set the temperature for programmable
schedules.
3. It will return to normal display with the latest setting if
there's no button pressed for 10 seconds.
Table 5: Display Descriptions
# Item
1 Normal Display
Temperature Setting
2
▼ ▲
Mode Select
3
MODE
Fan Auto/Continuous
4
MODE
Time/ Date/ Schedule Setting
5
SET
IM 1272 • OPTILINE VERTICAL FAN COILS
Description
Display current room or set-point temperature
and current time-day.
Set the required temperature
1. Select the Working Mode: (1) Run/Halt/Stop
for schedule
2. When MODE is pressed for more than 3
seconds, the unit temperature will toggle to
change between ºF or ºC
1. Change Fan Mode for Auto or Continuous
Mode.
2. Auto Mode will stop fan output during dead
band
3. Continuous mode will output low speed
during dead band
1. Set current time in 12-or 24-hour format
2. Set Calendar and Day of Week
3. When set is pressed for more than 3
seconds, users can set temperature set
points for programmable schedules
18
Remarks
Setting "-SP-"parameter in engineer table to choose current room
or set-point temperature.
RUN: Run schedules.
HALT: Pause "Current" Schedule and Use Manual SP.
STOP: Stop Using All Schedules and Use Manual SP.
Low Speed Can Be Set Via FanL (E17) parameter in
Engineer Table
Press SET to continue settings.
Press MODE, FAN, Or POWER Button to escape any time
during setting.
