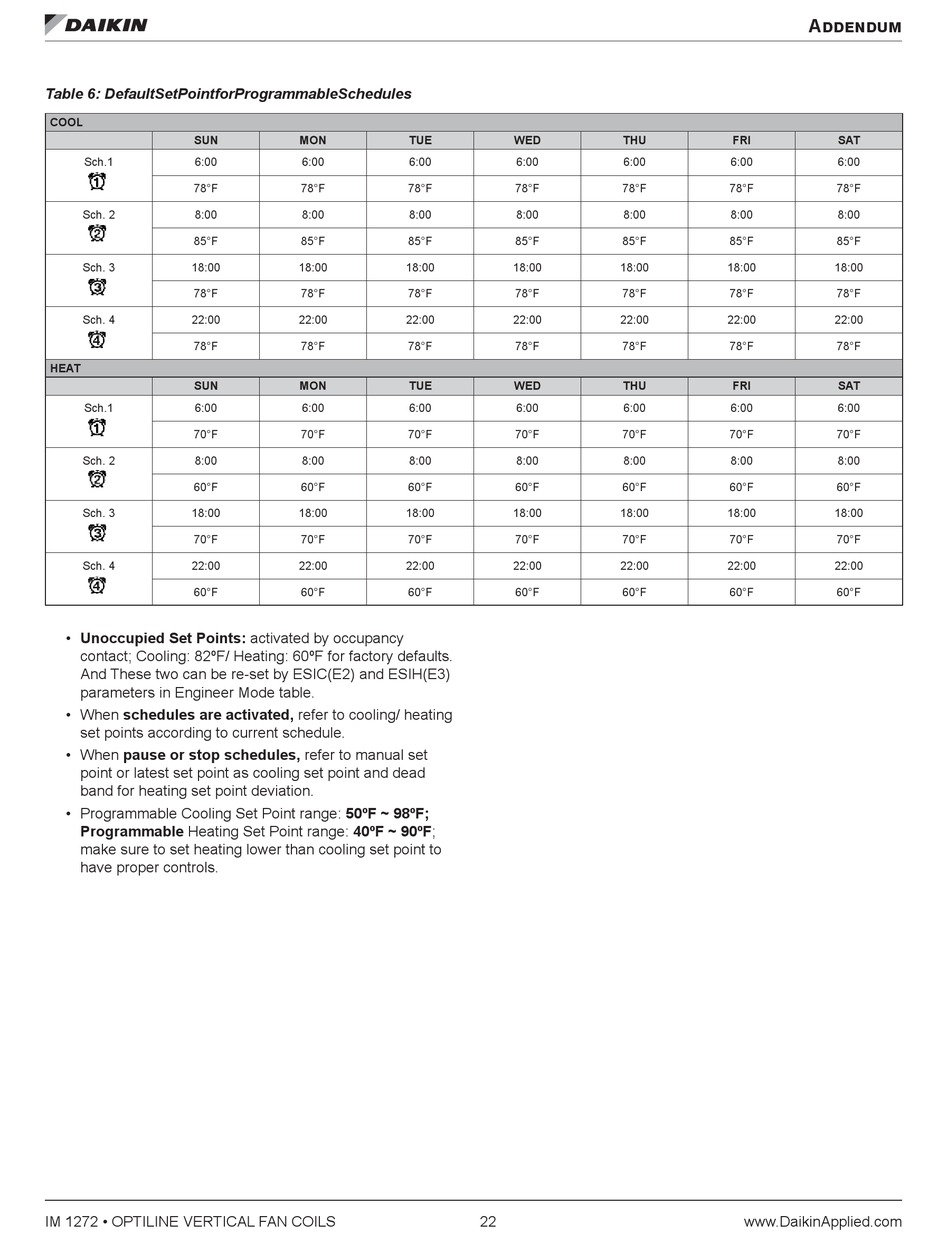

Table 6: DefaultSetPointforProgrammableSchedules
COOL
SUN
Sch.1 6:00
78°F
Sch. 2 8:00
85°F
Sch. 3 18:00
78°F
Sch. 4 22:00
78°F
HEAT
SUN
Sch.1 6:00
MODE
70°F
MODE
MODE
Sch. 2 8:00
MODE
60°F
Sch. 3 18:00
70°F
Sch. 4 22:00
60°F
• Unoccupied Set Points: activated by occupancy
contact; Cooling: 82ºF/ Heating: 60ºF for factory defaults.
And These two can be re-set by ESIC(E2) and ESIH(E3)
MODE
parameters in Engineer Mode table.
MODE
MODE
• When schedules are activated, refer to cooling/ heating
set points according to current schedule. MODE
• When pause or stop schedules, refer to manual set
point or latest set point as cooling set point and dead
band for heating set point deviation.
• Programmable Cooling Set Point range: 50ºF ~ 98ºF;
Programmable Heating Set Point range: 40ºF ~ 90ºF;
make sure to set heating lower than cooling set point to
have proper controls.
IM 1272 • OPTILINE VERTICAL FAN COILS
MON TUE
6:00 6:00
78°F 78°F
8:00 8:00
85°F 85°F
18:00 18:00
78°F 78°F
22:00 22:00
78°F 78°F
MON TUE
6:00 6:00
70°F 70°F
8:00 8:00
60°F 60°F
18:00 18:00
70°F 70°F
22:00 22:00
60°F 60°F
WED THU
6:00 6:00
78°F 78°F
8:00 8:00
85°F 85°F
18:00 18:00
78°F 78°F
22:00 22:00
78°F 78°F
WED THU
6:00 6:00
70°F 70°F
8:00 8:00
60°F 60°F
18:00 18:00
70°F 70°F
22:00 22:00
60°F 60°F
22
Addendum
FRI SAT
6:00 6:00
78°F 78°F
8:00 8:00
85°F 85°F
18:00 18:00
78°F 78°F
22:00 22:00
78°F 78°F
FRI SAT
6:00 6:00
70°F 70°F
8:00 8:00
60°F 60°F
18:00 18:00
70°F 70°F
22:00 22:00
60°F 60°F
