3.3.1 Exemplary Connections

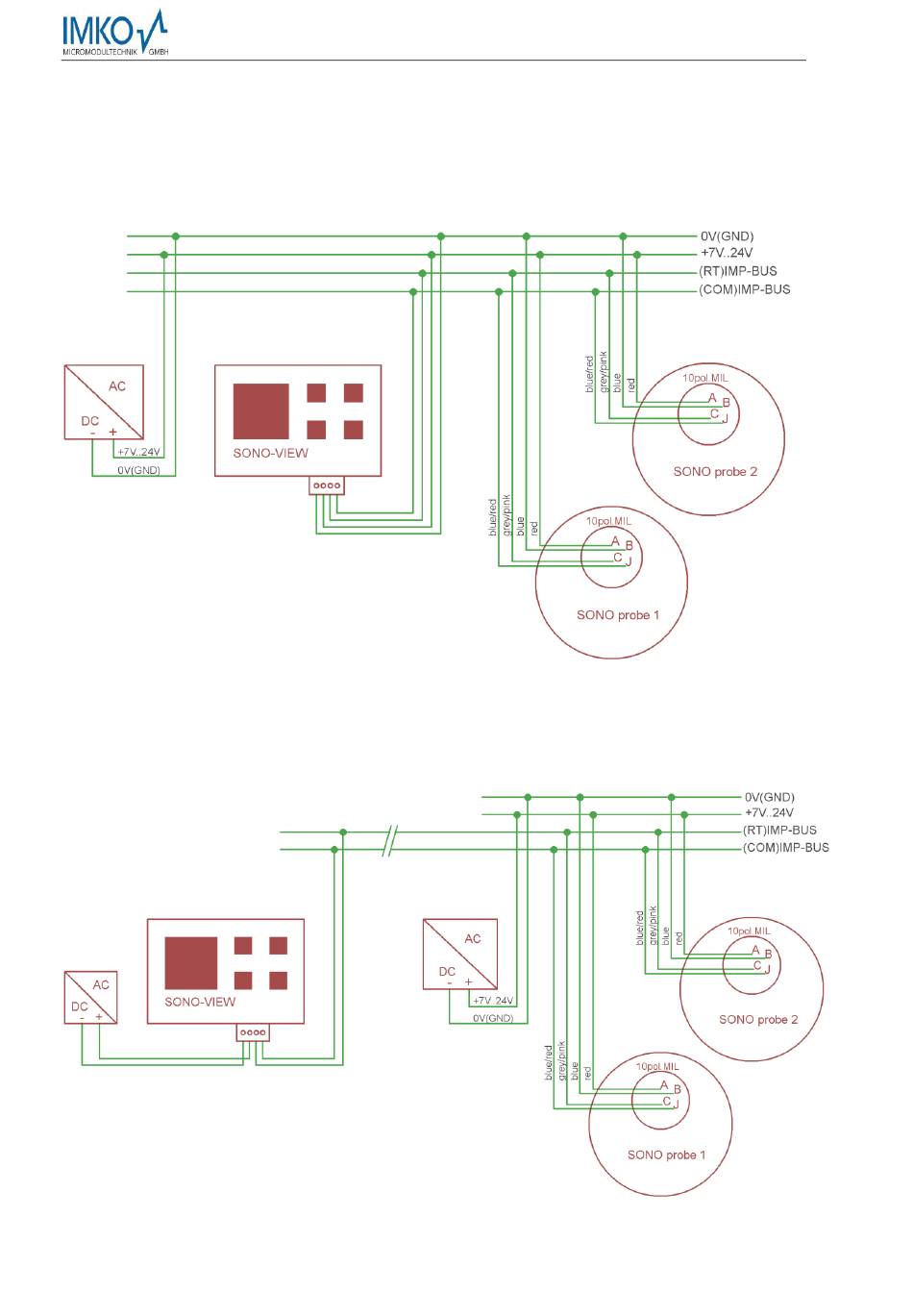

Example 1:
Connection of the SONO-VIEW with two SONO probes and one joint voltage
supply source.
Example 2:
Connection of the SONO-VIEW with 2 SONO-probes merely via IMP-bus.
SONO-VIEW and the probes dispose of their voltage supply. This may be
useful, if the distance between the measuring equipment and the display
device is considerable.
Page 8
Manual SONO-VIEW Version 3_1
2017-05-24
