2017-05-24
3

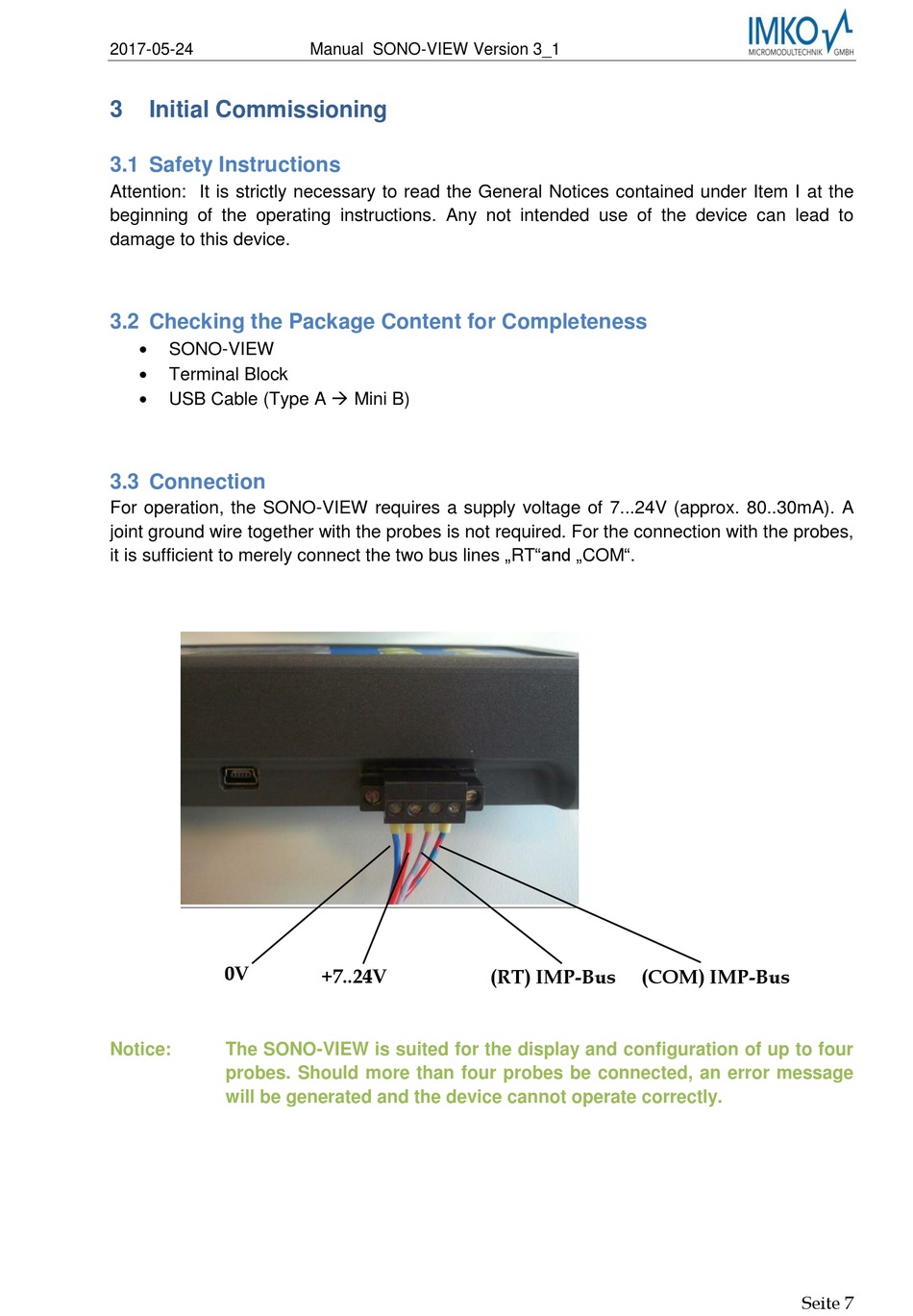

Initial Commissioning

3.1 Safety Instructions

Attention: It is strictly necessary to read the General Notices contained under Item I at the
beginning of the operating instructions. Any not intended use of the device can lead to
damage to this device.

3.2 Checking the Package Content for Completeness


SONO-VIEW

Terminal Block

USB Cable (Type A  Mini B)

3.3 Connection

For operation, the SONO-VIEW requires a supply voltage of 7...24V (approx. 80..30mA). A
joint ground wire together with the probes is not required. For the connection with the probes,
it is sufficient to merely connect the two bus lines „RT"and „COM".
0V
Notice: The SONO-VIEW is suited for the display and configuration of up to four
probes. Should more than four probes be connected, an error message
will be generated and the device cannot operate correctly.
Manual SONO-VIEW Version 3_1
+7..24V (RT) IMP-Bus
(COM) IMP-Bus
Seite 7
