analogue output. The operating mode CS also serves for the collection of raw values without
averaging and filter functions.
Mode CA: (cyclic average filter) Standard averaging for relatively fast but continuous
measurement processes with filtering and an accuracy of up to 0.1%.
Mode CF: (cyclic floating average with filter) Floating averaging for very slow and continuous
measurement processes with filtering and an accuracy of up to 0.1%.
This is suited for applications such as within a fluid bed dryer, on the conveyor belt, etc.
Mode CK: (cyclic with Kalman filter) suitable for complex application
Mode CC: (cyclic cumulated) with automatic summation of the moisture-quantity
measurements in one batch operation.
Notice: Please respectively also read the further information contained in your probe
operator manual.

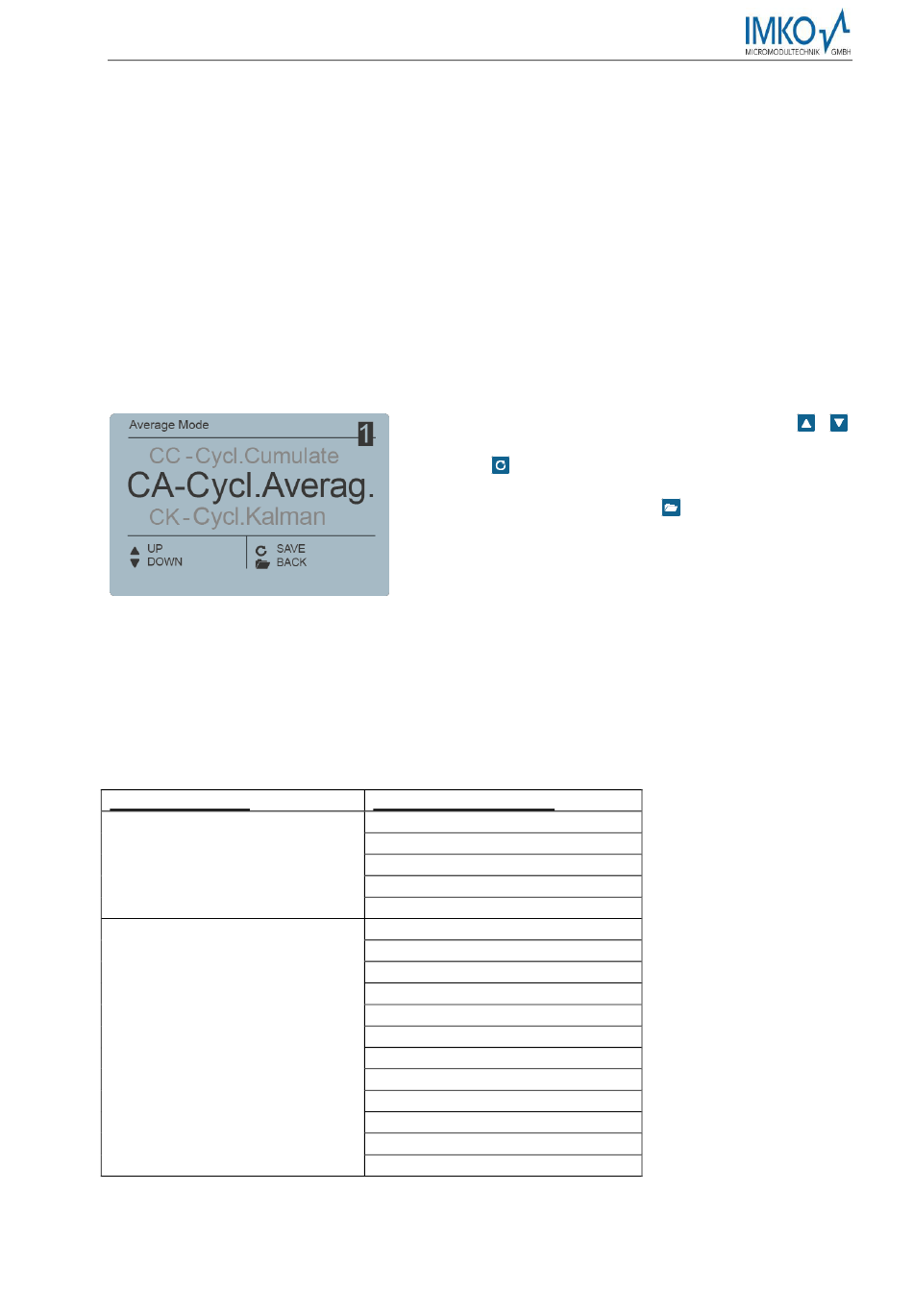

4.5.5 Averaging Parameters

Depending on the set „Averaging Mode", there are various „Average Parameters"available
for control purposes.
Averaging Mode
CA – Cyclic Average
CK – Cyclic Kalman
Manual SONO-VIEW Version 3_1
Set the desired „Average Mode" with the buttons
and subsequently set the set mode as standard with
the button
stored in the probe. You can exit the menu item
„Average Mode" with the button
Available Parameters
Average Time
Filter Upper Limit Offset
Filter Lower Limit Offset
Upper Limit Keep Time
Lower Limit Keep Time
Kalman with Boost
Average Time
Filter Upper Limit Offset
Filter Lower Limit Offset
Upper Limit Keep Time
Lower Limit Keep Time
Q-Parameter
R-Parameter
K-Parameter
Moisture Threshold
Boost
Offset
. Once this is performed, the setting is
.
/
