1 standard fixing rail
2 fixing clips
3 manometer, general air monitoring
4 manometer, carrier air monitoring
5 coaxial outlet port (air and oil)
6 pressure switch, carrier air monitoring
7 carrier air pressure regulator
8 air inlet port
9 air inlet port (module with a general air so-
lenoid valve)
10 Lubricant inlet
11 General air solenoid valve
12 Pneumatic pulse generator
13 Pneumatic micropump, setting with thumb
wheel
14 Pneumatic micropump, setting with meter-
ing ring
15 Micropump control solenoid valve
16 Pneumatic pulse generator and an air sole-
noid valve (control of micropump) put to-
gether with a connection plate
17 Base without additional equipment (A)
18 Oil flow sensor GS304P
19 Base without additional equipment (J)
16

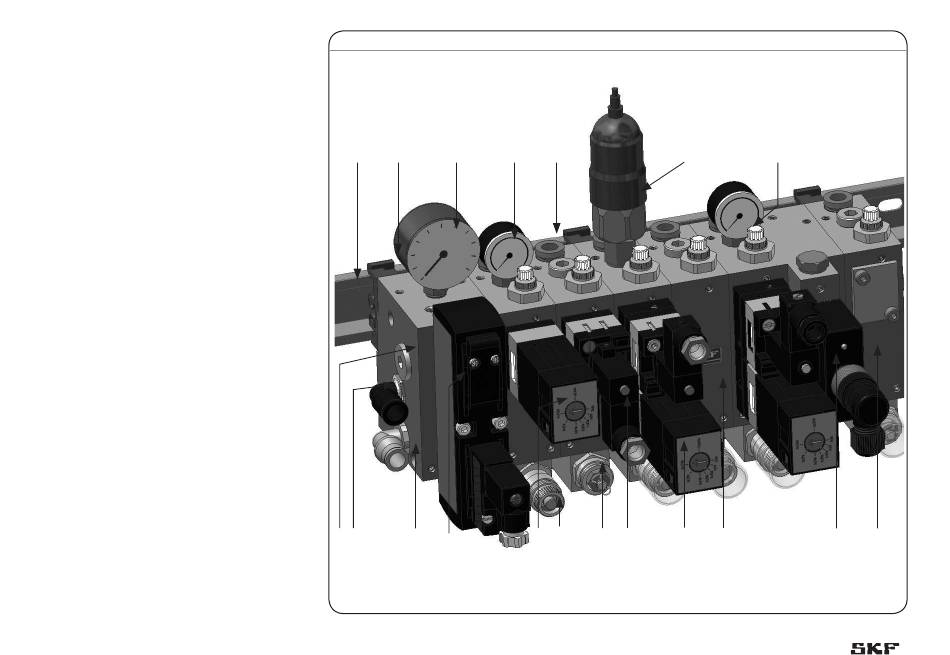

Overview of a VTEC unit
1
2
3
4
8 9
10
11
Model: VTEC-IZM-BBM-CAZ-DBP-ABZ-HBM-JAZ+ 924
5
6
15
16
12 13
14
Fig. 1
7
17
18
19
