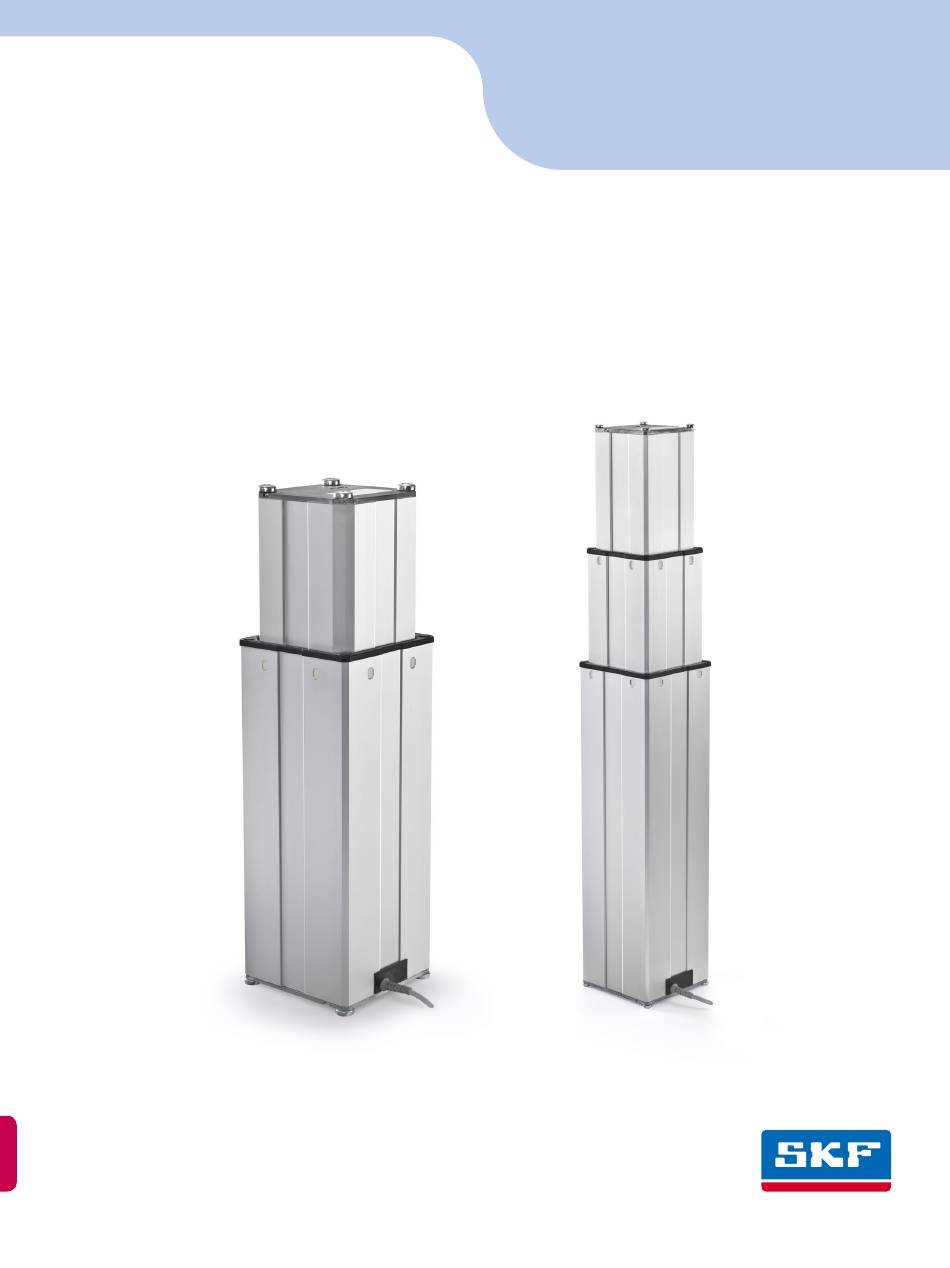

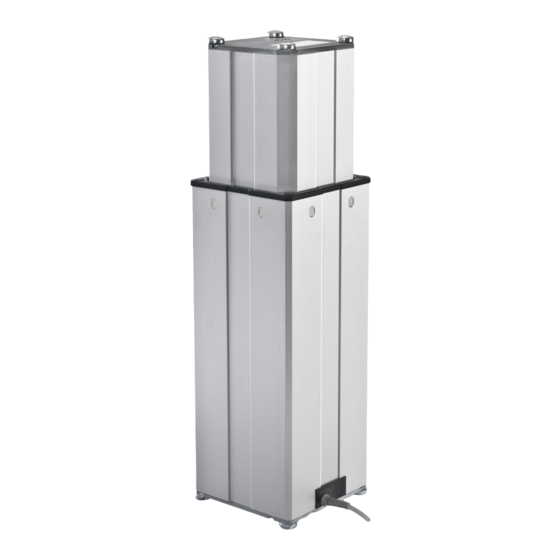

- Page 1 Installation, operation and maintenance manual TLG/THG Telescopic pillars Read this manual before installing, operating or maintaining this actuator. Failure to follow safety precautions and instructions could cause actuator failure and result in serious injury, death or property damage.
-
Page 2: Table Of Contents
7 Troubleshooting and fault elimination ........8 Reference standards: EN 60601-1 EN 55011 UL 2601 SKF Actuation System (Liestal) AG Oristalstrasse 97 CH- 4410 Liestal Phone +41/ 61/ 925 41 11... -
Page 3: General
Only original spare parts and accessories from SKF may be used. The actuator is intended for use with a SKF control system. The unit is only suitable for indoor use and must not be subjected to the ele- ments. -
Page 4: Function
Control unit The DC motor is fed using an external SKF control unit or a master actua- tor. These components also determine the running direction of the actuator, de- pending on the polarity of the DC current. -
Page 5: Installation And Startup
Installation Only use the screws recommended (Qual- ity 10 . 9 ) . The Telemag can be secured to either SKF mounting plates (see 3.1 Acces- Observe the minimum screw-in depth sories) or the customer's own plates. and the torque specified on the datasheet. -
Page 6: Electrical Connection
Fig. 2 – Connection Electric cables should not be exposed to the risk of pinching, or to bending or The supply voltage and control unit are connected via the jack plug to a SKF tensile loads. control unit or a master actuator. -
Page 7: Operation
In every case, the owner or operator of the unit shall be liable for its correct functioning if it has been incorrectly installed, maintained or repaired by persons who are not employed by the SKF Service Department or if the unit has not been used in accordance with the specified application. -
Page 8: Technical Data
Technical data see type plate The manufacturer reserves the right to modify technical data, without any spe- cial notification, in order to keep pace with advances in technology. SKF will be pleased to provide information about current specifications, possible changes or extensions. -
Page 9: Troubleshooting And Fault Elimination
Markedly reduced Motor, gears or Immediately take the ac- tua- speed nut faulty tor out of operation and return it to the SKF Service Department. Very loud Motor, gears or Immediately take the ac- tua- running noise nut faulty... - Page 10 SKF brings innovative solutions to OEMs and production facilities in every major industry world- wide. These five competence areas include bearings and units, seals, lubrication systems, mechatronics (combining mechanics and electronics into intelligent systems), and a wide range of services, from 3-D...
