• Pull out (ca. 10 cm) the capillary tube
from the coaxial line
• Insert the capillary tube into the outlet
port and fit it to the lower quick-release
connector († A fig. 5).
• Pull slightly the capillary tube to check it is
correctly held.
• Insert the outer tube into the outlet port
and fit it to the upper quick-release con-
nector († B fig. 5).
• Pull slightly the outer tube to check it is
correctly held.
4.3.2 Connection coaxial line / projection
block
The coaxial line may be only con-
!
nected by authorized and trained
specialists.
The coaxial line can be connected
!
to the projection block only if it is
already connected to the outlet port of
the VTEC.
When mounting or dismounting,
!

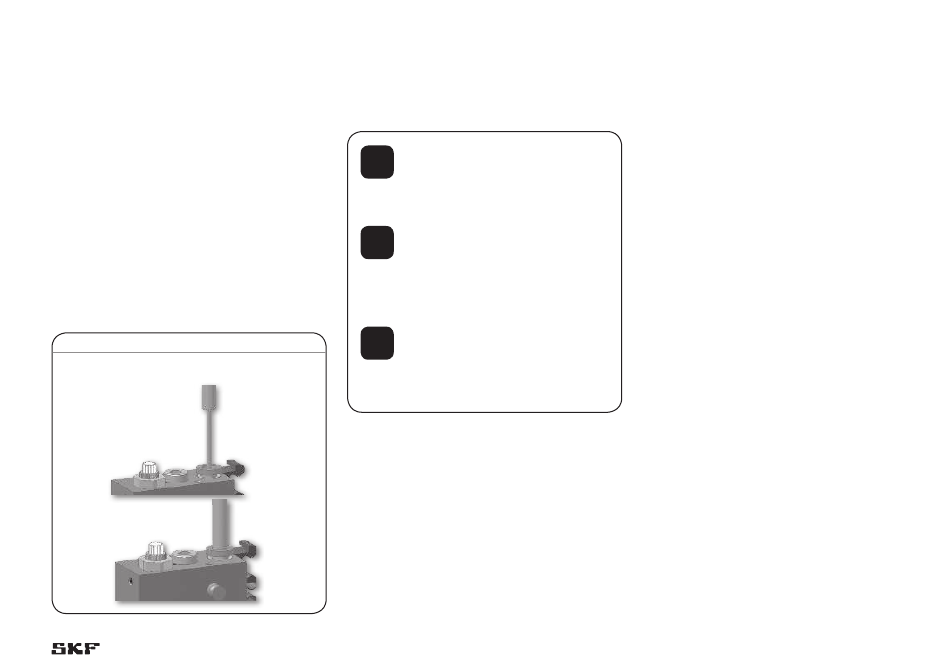

Fig. 5
never twist, bend or crush the co-
axial tube.
A
The length of the coaxial line between the
outlet port of the module and the nozzle has
to be between 1 and 5 m. For greater length,
please contact the SKF service center.
B
Step 1 († fig. 6).
• Unscrew and remove the nozzle (1) from
the end tube (rigid or articulated) (3).
• Slip the capillary (7) into the quick con-
nector (6) of the fixing block (5) until it is
coming out of the end tube (3).
Step 2
• Insert the outer tube (8) of the coaxial
hose (9) into the quick connector (6) of the
fixing block (5).
• Pull carefully the hose (9) to check that the
outer tube (8) is correctly fixed.
• Stretch the capillary tube (7) from the end
tube (3) and cut it (15 to 25 mm out of the
tube). Maintain the capillary tube other-
wise it will retract.
Step 3
• Insert the capillary tube (7) into the quick
connector (10) of the nozzle (1).
• Pull carefully the capillary tube (7) to
check it is correctly fixed.
Step 4
• Screw in and tighten the nozzle (1) onto
the end tube (3).
