The Display Module

A dip-switch is located on the back of the display module which is used to identify the gas of the display
module. The dip-switch contains ten switch settings.

Pressure Only

Factory Default:
High = 60 Psi, Low = 40 Psi
Repeat time = 30 min.
High Pressure/Nitrogen
Factory Default:
High = 195 Psi, Low = 140 Psi
Repeat time = 30 min.
During programming, the "Trend Bar" will flash!
1. Set switch #6, #7 and #8 to the ON position.
2. The LED will display (HI-), followed by the current set point. Indicating that the system is ready
to accept a new High set point. Adjust set point, using the "UP" and "DOWN" push buttons, to the
desired value.
3. Set switch #7 to the OFF position.
4. The LED will display (LO-), followed by the current set point. Indicating the system is ready to
accept a new Low set point. Adjust set point, using the "UP" and "DOWN" push buttons, to the
desired value.
5. Set switch #8 to the OFF position.
6. The LED will display (I-I-), followed by the current set point. Indicating the system is ready to
accept a new Repeat Time set point. Adjust set point using the "UP" and "DOWN" push buttons,
to the desired value. [(Display dd=Disabled) Range from 1 to 60 Minutes]
7. Set switch #6 to the OFF position.
When you have completed step #7, the display module will
automatically go into "RESET" mode. This will store the data
that you entered.

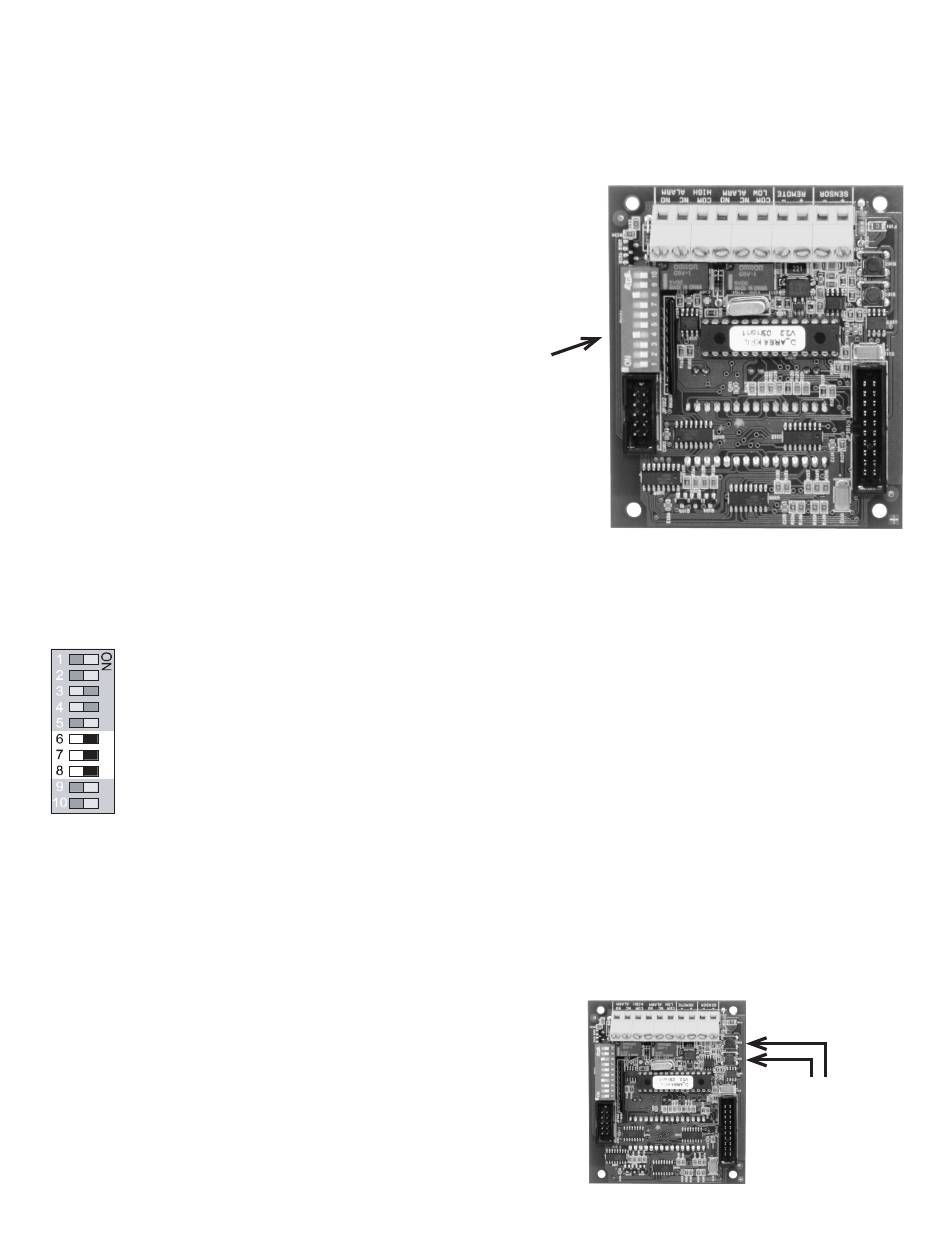

Compact
Alarm Board
Dip-Switch
"UP" and "DOWN"
Push Button
